3 Multi-Sensor - Technique
With the multi-sensor type the positions of max. 16 magnets can be detected. The
minimum distance between two magnets must be 50 mm.
With the I/O Poll Command the magnet (0 – 15) at which the position have to be read
is addressed in the output byte.
The Respond Message contains the position of the addressed magnet.

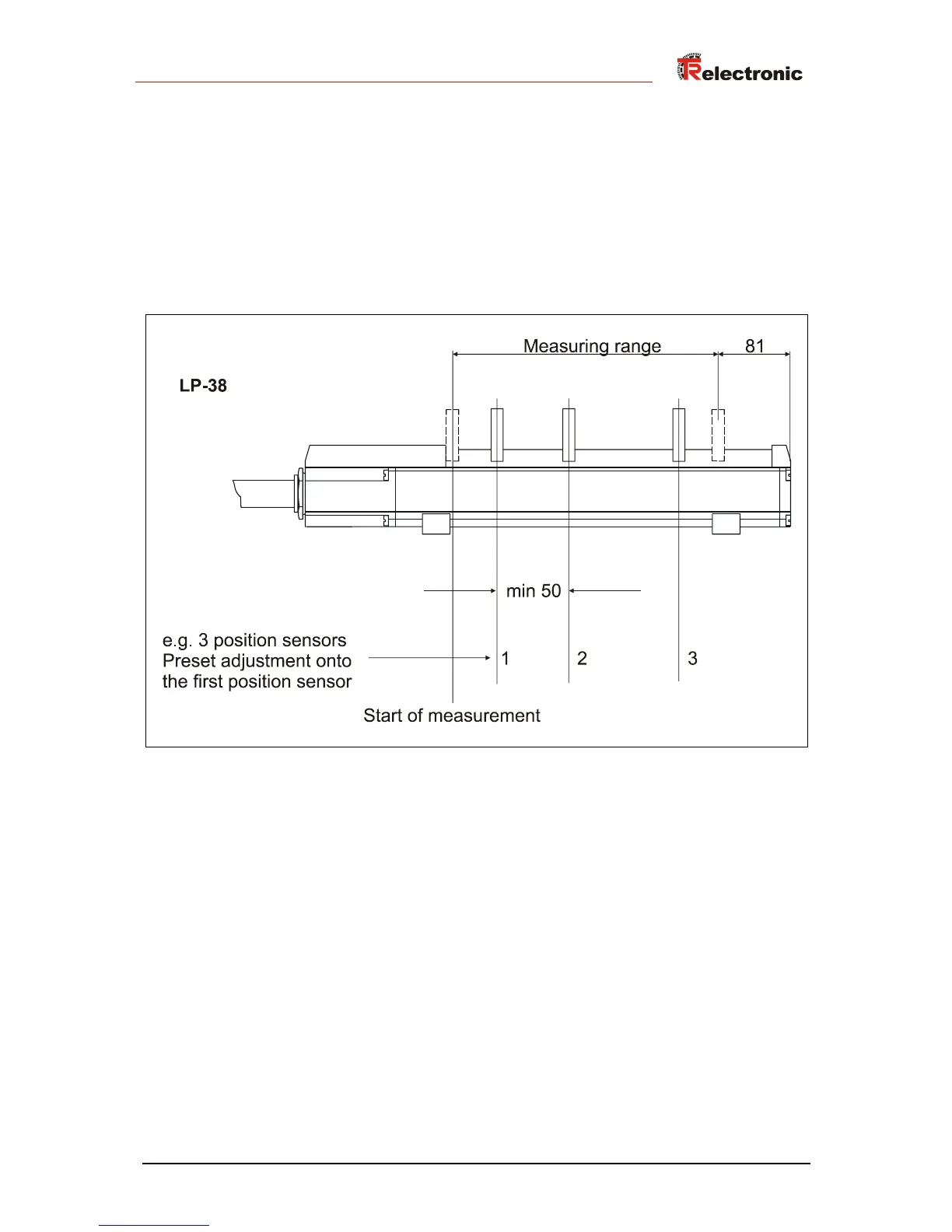

Principle
