four lights will blink when an error condition occurs. The Bulk Charge or Float Charge lights will light
to indicate the inverter is in either the bulk or float stage of the charging process.
In order for the inverter to recognize the RC6, it must be powered up with the RC6 already plugged
in. If the RC6 is plugged in while the inverter is operating, it will not be recognized. In this situation
simply turn the inverter power switch off and then back on.
7KH5&5 HPRWH&RQWURO
The optional RC7 remote control has the ability to communicate with and adjust settings in the
Mariner. It connects into the port labeled Remote Control on the front panel of the inverter using the
included remote connection cable. Only one remote control at any given time may be plugged into
the inverter. Use the cable supplied with the RC7 rather than standard phone cable because it is
high quality cable. It is tinned along its entire length for corrosion and weather resistance.

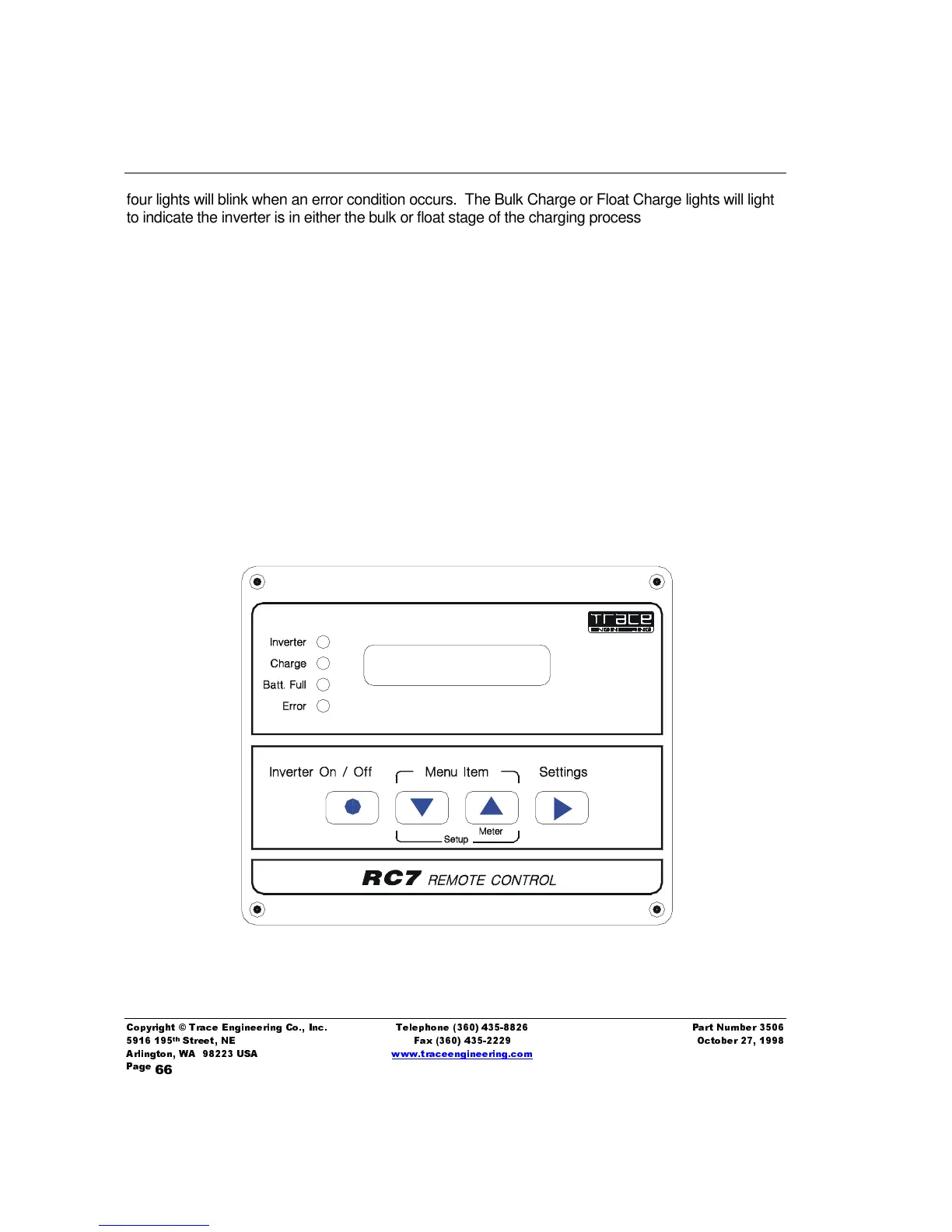

Figure 16 , RC7 Remote Control Faceplate
