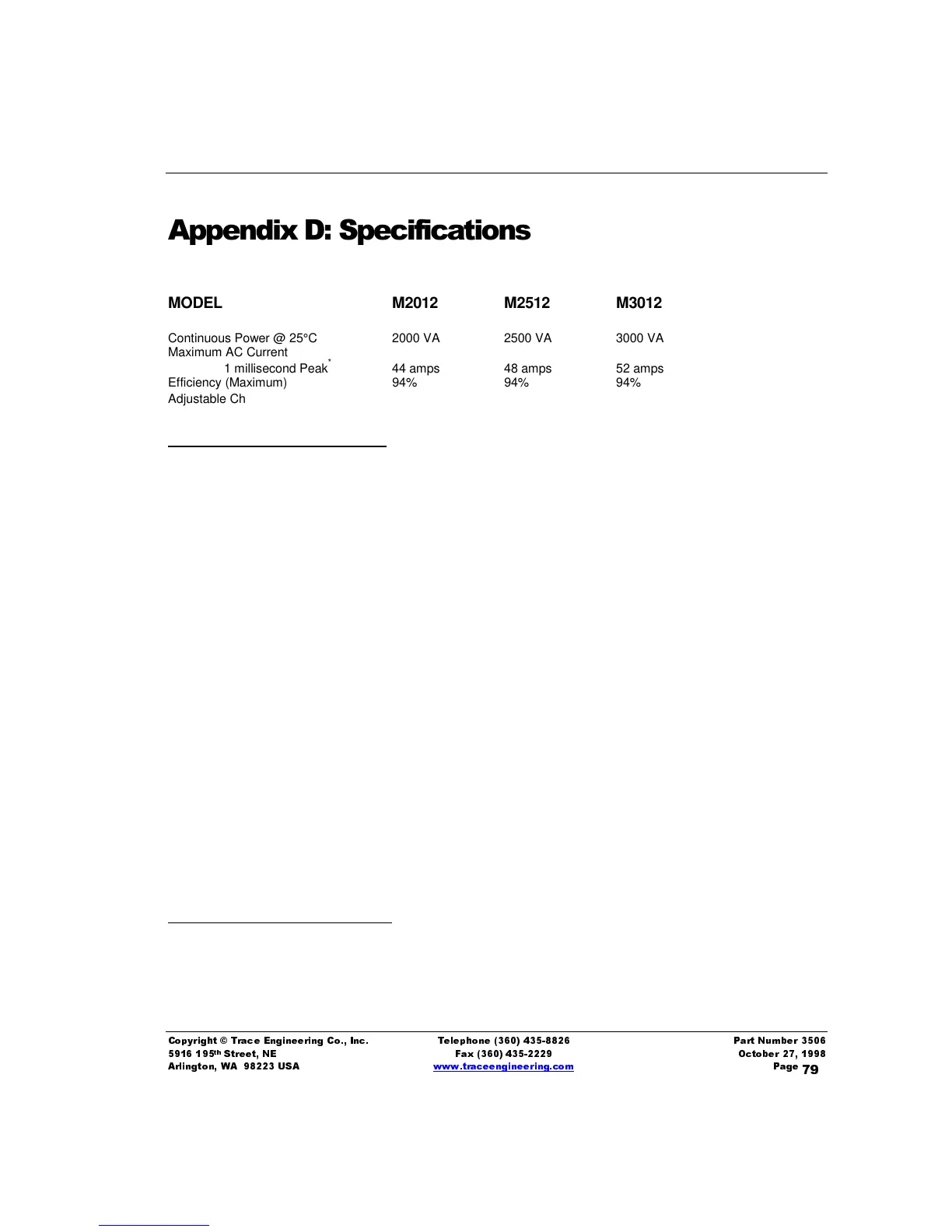

$SSHQGL['6SHFLILFDWLRQV
MODEL M2012 M2512 M3012
Continuous Power @ 25°C 2000 VA 2500 VA 3000 VA
Maximum AC Current
1 millisecond Peak
*
44 amps 48 amps 52 amps
Efficiency (Maximum) 94% 94% 94%
Adjustable Charge Rate
†
10-100 amps 12-120 amps 14-140 amps
Unit Weight 45lbs (20.5kg) 50lbs (22.7kg) 60lbs (27.2kg)
DC Input Current Consumption
Search Mode 0.055 amps 0.070 amps 0.080 amps
Full Voltage (search defeated) 0.550 amps 0.600 amps 0.650 amps
At Rated Power 200 amps 250 amps 300 amps
Short Circuit 600 amps 800 amps 900 amps
The following specifications apply to all models:
Nominal Input Voltage 12VDC
Input Voltage Range 10.2-15.5VDC
Auto Low Battery Protection (LBCO)
∞
11.1VAC or defeated
Voltage Regulation- Maximum ±5%
Voltage Regulation- Typical ±2.5%
Output Waveform Modified Sine Wave
Power Factor allowed -1 to +1
Frequency Regulation 60Hz ± .04%
Standard Output Voltage 120 VAC
Adjustable Load Sensing∞ 5 to 40 Watts or defeated
Forced Air Cooling Automatic Variable Speed Fan
Automatic Transfer Relay 30 amps at 120VAC
Charging Profiles∞ 2 (liquid lead acid or gel cell)
Battery Charging Program 3-stage: Bulk, Float, Absorption
Battery Temperature Compensation (BTS) Optional: BTS/15 (15 foot cable included)
Remote Control Optional: RC6- Bargraph Volt/Ammeter On/Off
RC7- Full Function LED Display
*
All power and charging specifications based on 25ºC ambient temperature.
†
Minimum AC input requires 164 VAC peak for full battery charger output. Some generators are unable to produce
this voltage under required load.
∞
RC7 remote control required to change settings
