Trace Engineering Mariner User Manual

$33(1',;&5()(5(1&(7$%/(6*5$3+6
&RS\ULJKW7UDFH(QJLQHHULQJ&R,QF 7HOHSKRQH 3DUW1XPEHU

WK
6WUHHW1( )D[ 2FWREHU
$UOLQJWRQ:$86$ ZZZWUDFHHQJLQHHULQJFRP 3DJH


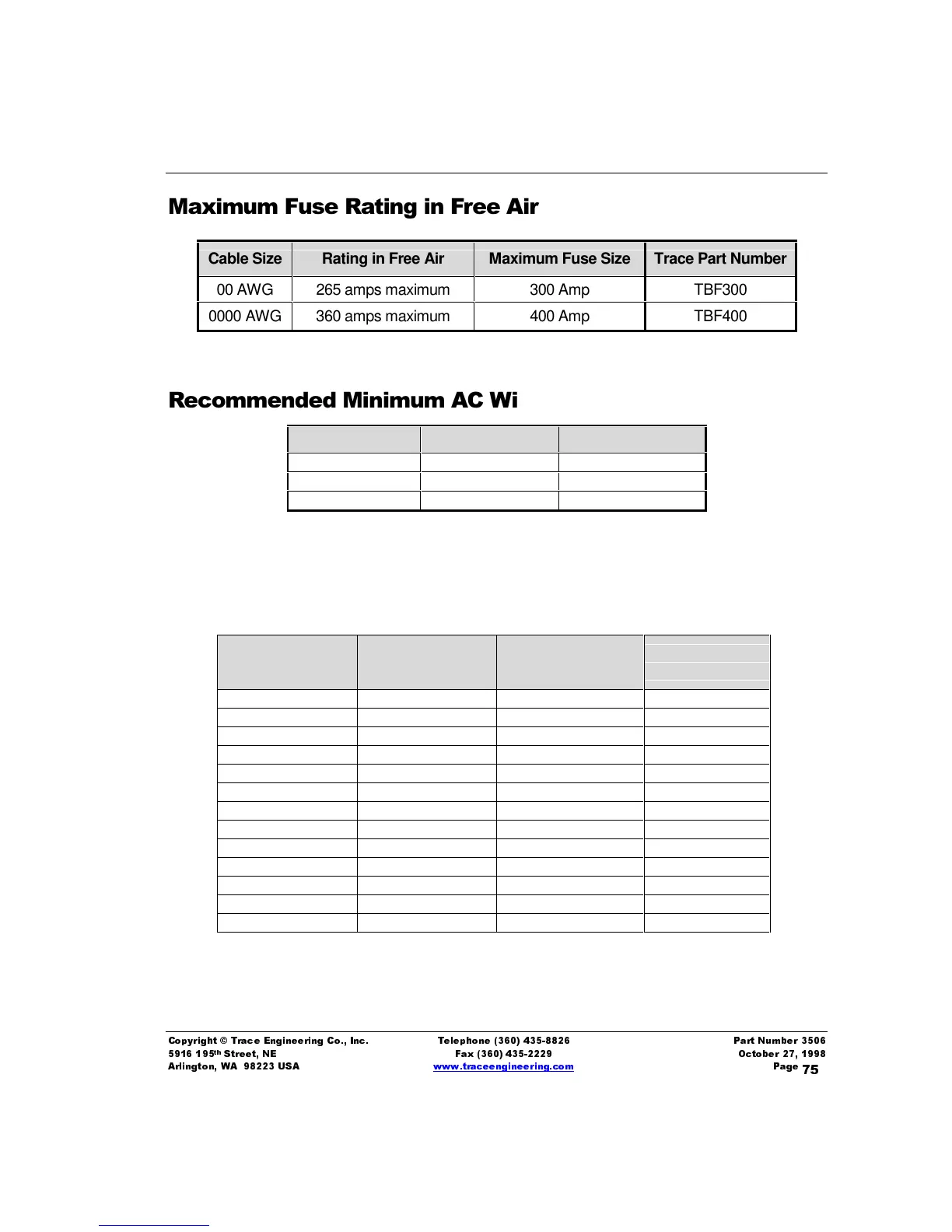

0D[LPXP)XVH5 DWLQJLQ) UHH$LU
Cable Size Rating in Free Air Maximum Fuse Size Trace Part Number
00 AWG 265 amps maximum 300 Amp TBF300
0000 AWG 360 amps maximum 400 Amp TBF400
5 HFRPPHQGHG0LQLPX P$&:LUH6L]HV
Inverter Model 120 VAC Input 120 VAC Output
M2012 10 AWG 12 AWG
M2512 8 AWG 10 AWG
M3012 8 AWG 10 AWG
0D[LPXP$PS HUDJHI RU&RQGXFWRUV8QGHU9ROWVDW
&
AWG Wire Size Metric Wire Size
Amperage
Outside Engine
Spaces
Amperage in
Engine Spaces
18 .8 20 17
16 1 25 21.3
14 2 35 29.8
12 3 45 38.3
10 5 60 51
8 8 80 68
6 13 120 102
4 19 160 136
2 32 210 18.5
0 50 285 242.3
00 62 330 280.5
000 81 385 327.3
0000 103 445 378.3
