28 MN1007-C
4.6 Alarm activation in integration mode
Whilst making an integrated measurement, alarm activation will not be invoked until after the integration period has
expired.
If at the end of the integration period the alarm level is exceeded, then all three indicator LEDs will flash in unison
and the sounder will be activated.
Moving the probe away from the source to a position where the radiation is below the alarm threshold will disable
the sound but leave the LEDs flashing.

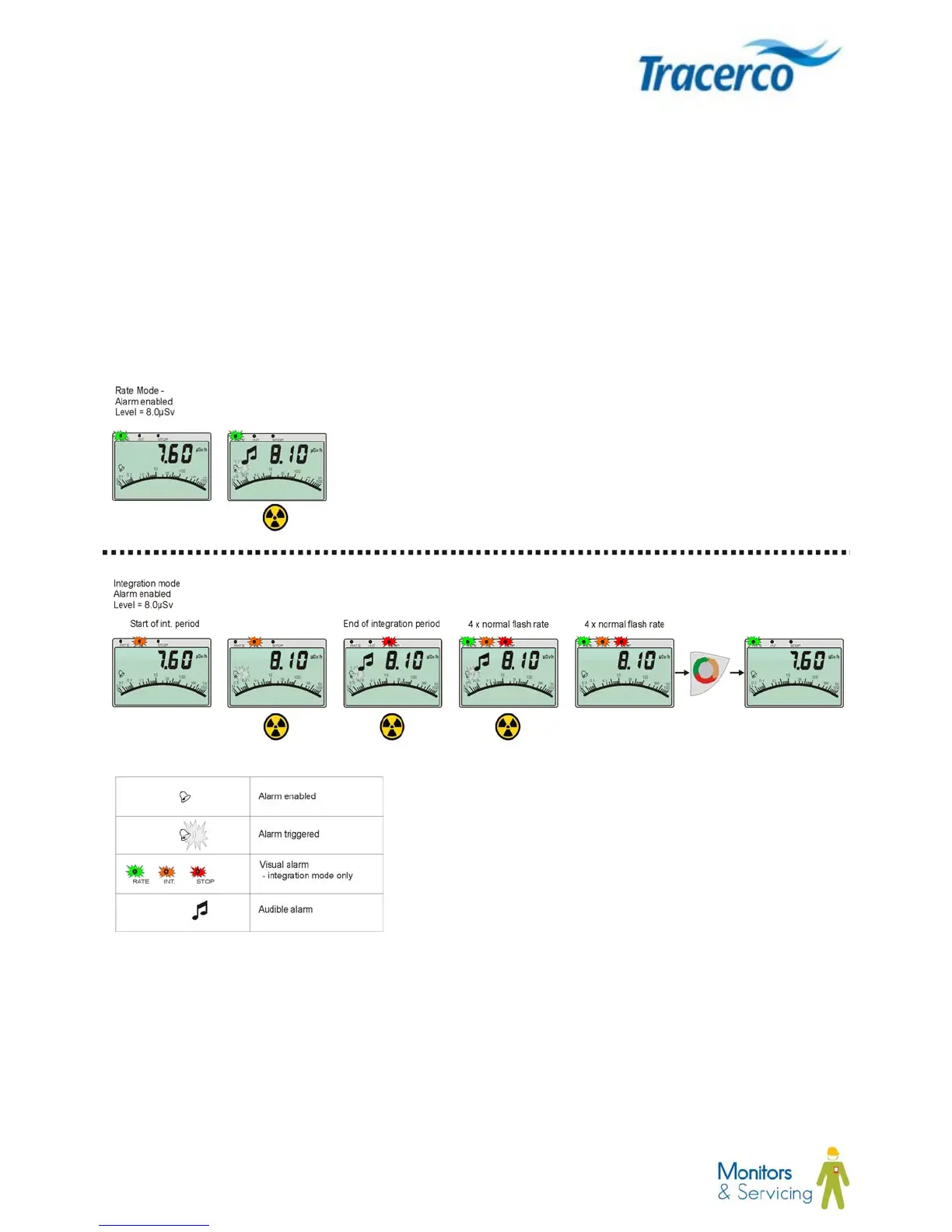

The audio and visual alarm operation is summarised in the following illustration.
[See also Section 4.8.2 Alarm notification table]
Figure 15 - Alarm operation with Integration mode
