20 MN1007-C
4.2 Operating the instrument
4.2.1 Connecting the probes

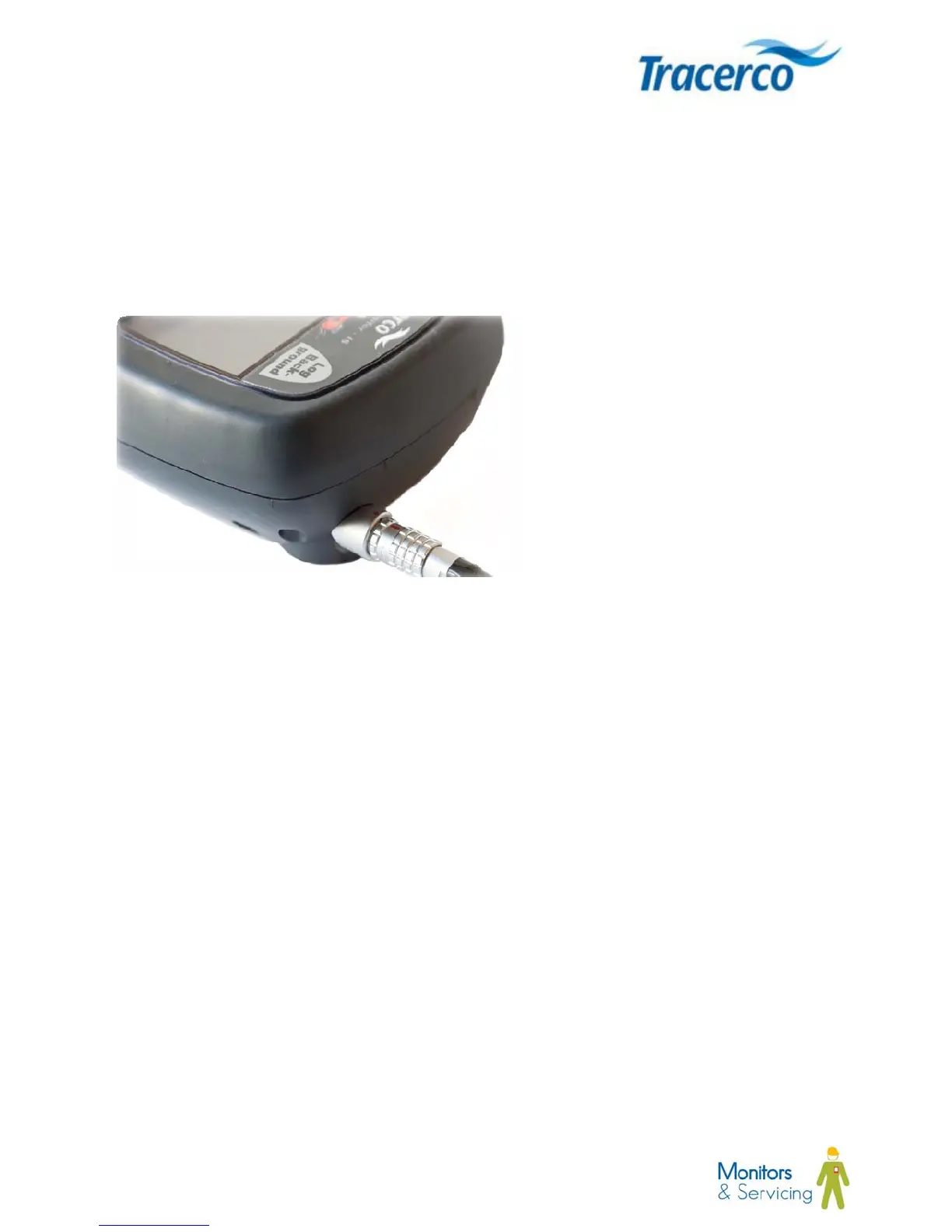

Each probe is supplied with a flexible (“curly”) cable terminated with a polarised industrial grade plug. Connection
to the hand-held monitor is made via a panel mount socket connection as shown below.
Rotate the probe plug so that the red marker is uppermost. Align the marker with the corresponding red dot
marker on the handset-mounted socket and push firmly.
A successful connection is confirmed by an audible and tactile ‘click’ of the latching mechanism.
Switch the monitor on and observe that the initialisation sequence is carried out – [See Section 4.2.3 – Switching
on the instrument]
4.2.2 Removing the probe
Switch the monitor off.
Hold the probe plug by the machined grip and pull firmly away from the handset.
