Tracker Off-Road 300 - Location of Parts and Controls

30

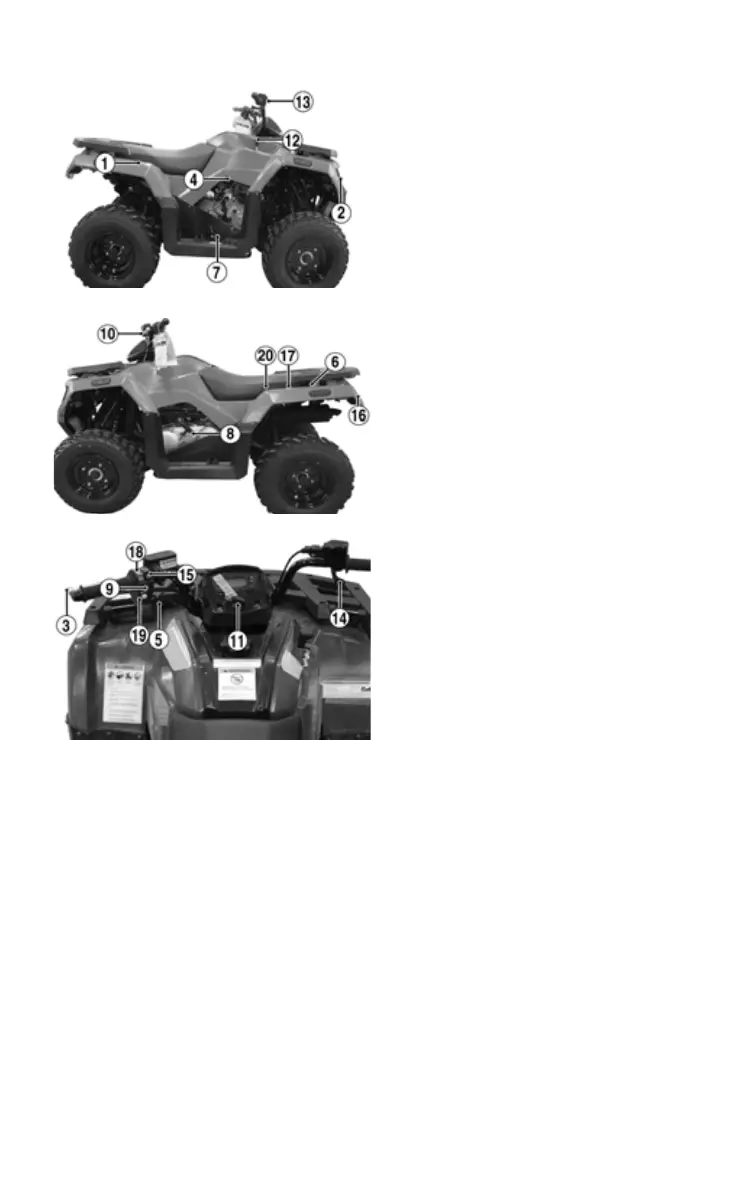

Location of Parts and
Controls
KC588A
KC589A
KC590A
1. Battery
2. Headlights
3. Hand Brake Lever
4. Fuel Valve
5. Choke Lever
6. Seat Lock Lever
7. Rear Foot Brake
8. Recoil Starter
9. Emergency Stop Switch
10. Brake Lever Lock
11. Key Switch
12. Shift Lever
13. Throttle Limiter
14. Throttle Lever
15. Starter Button
16. Taillight/Brake Light
17. Operator’s Manual Location
18. Headlight OFF/HI/LO Switch
19. Reverse Override Button
20. Tool Kit
