44
7. Odometer/Trip Meter — Displays
distance in miles or kilometers the
vehicle has traveled. The odometer
(ODO) displays total distance and
cannot be reset to zero. The trip meter
(TRIP) displays distance and can be
reset to zero. The distance (miles/kilo-
meters) will correspond to the speed-
ometer. To shift between (ODO) and
(TRIP), press and hold Mode/Set But-
ton (2) for two seconds. To reset the
(TRIP) display to zero, shift the dis-
play to (TRIP); then press and hold
Mode/Set Button (2) and simultane-
ously press Mode/Set Button (1) until
the display reads zero. Release the
buttons.
8. Low Range Indicator — A white
light will illuminate when the shift
lever is in the “low range” position.
The light will go out when the lever is
moved to another position.
9. High Beam Indicator — A blue light
will illuminate when the engine is
running, the ignition switch is in the
LIGHTS position, and the headlight
switch is in the HI beam position.
10. Neutral Indicator — A green light
will illuminate when the transmission
is in neutral and the ignition switch is
on. The light will go out when shifted
into any gear other than neutral.
11. Reverse Indicator — A red light will
illuminate when the transmission is
shifted into reverse gear. The light
will go off when shifted out of
reverse.

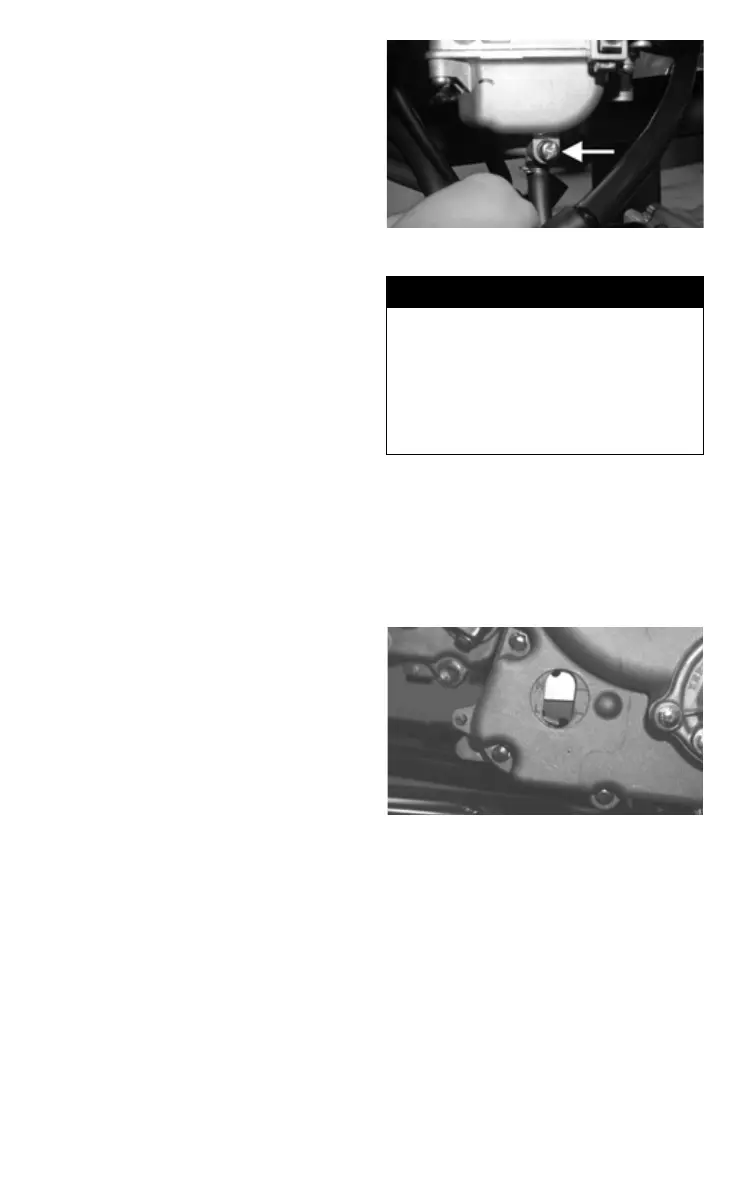

Carburetor Float Bowl
Drain
Periodically, the float bowl should be
drained to remove condensation. To drain
the float bowl, use the following procedure.
1. Place a suitable container beneath
the drain hose.
2. Loosen the drain screw and allow
the gasoline and condensation to
flow into the container.
XA052A
3. Tighten the drain screw securely.
Oil Level Inspection
Window
The oil level inspection window is
located on the lower-right side of the
engine. With the ATV on a level surface,
the oil level should be visible at any point
between the level marks.
KM180
Seat Latch
1. To remove the seat, push the seat
latch lever to the left (located at the
rear end of the seat). Raise the rear
end of the seat and slide it backward.
2. To lock the seat into position, slide
the front of the seat into the seat
retainer and push down firmly on
rear of seat. The seat should auto-
matically lock into position.
! WARNING
Draining fuel from the carburetor can
be hazardous. Fuel can catch on fire if
not handled properly. When draining
the carburetor, always shut the engine
off. Do not smoke and never drain or
refuel in an area where there are open
flames or sparks. Dispose of drained
fuel properly.
