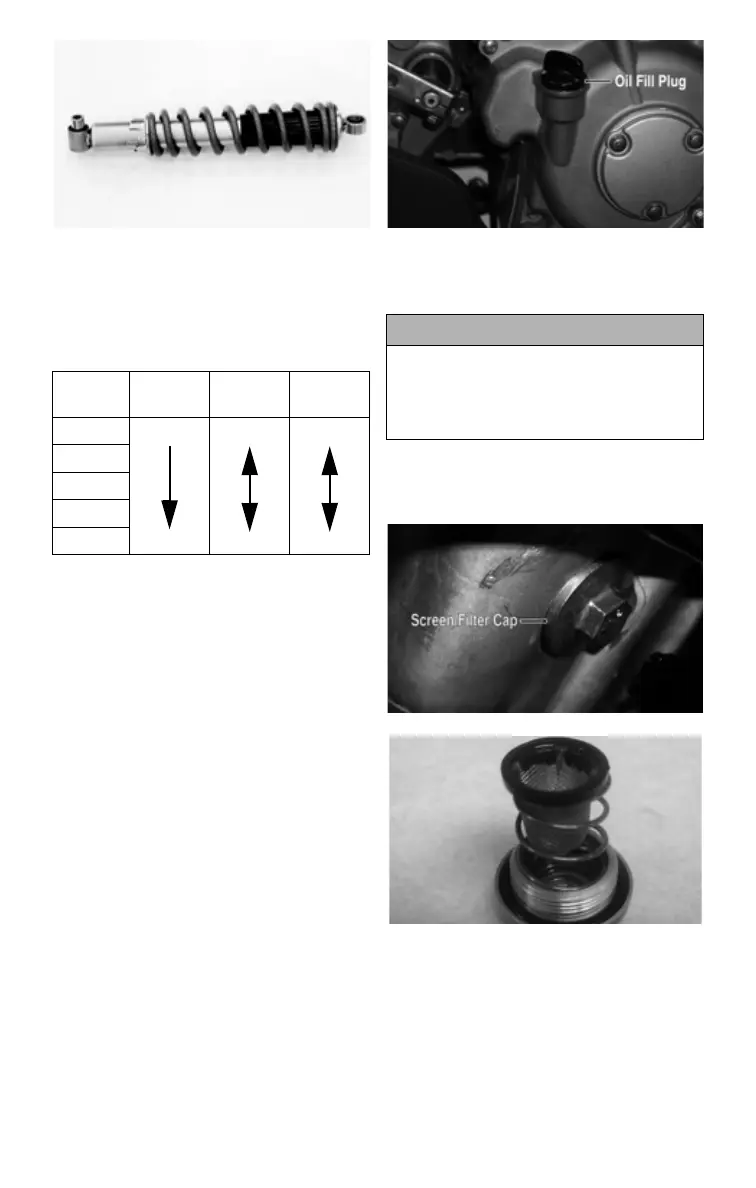

KM574
 NOTE: Before attempting to adjust
suspension, clean dirt and debris
from the sleeve and remove load
from the suspension; then use the
spanner wrench to adjust the sleeve
to the desired position.
General Lubrication
Cables
None of the cables require lubrication;
however, it is advisable to lubricate the
ends of the cables periodically with a
good cable lubricant.
Engine Oil and Screen
Change the engine oil and clean the oil
screen at the scheduled intervals. The
engine should always be warm when the
oil is changed so the oil will drain easily
and completely.
1. Park the ATV on level ground.
2. Loosen the oil fill plug. Be careful
not to allow contaminates to enter
the opening.
KM126A
3. Remove the screen/filter cap from
the bottom of the crankcase. Drain
the oil into a drain pan.
4. Using a brush and parts-cleaning
solvent, clean the screen/filter; then
clean the cap and inspect the O-ring.
KM147A
CD628
5. Install the O-ring, screen/filter, com-
pression spring, and the O-ring; then
secure with the screen/filter cap.
Tighten cap to 11 ft-lb.
6. Remove the oil fill plug; then pour
ACX All-Weather Synthetic oil into
the crankcase. Install fill plug.
Position
Spring
Force
Setting Load
1
Stronger
Soft
Stiff
Light
Heavy
2
3
4
5
CAUTION
When the cap is removed, a compres-
sion spring, screen/filter, and an O-
ring will fall into the drain pan. Take
care to account for these compo-
nents.
