60
XA057

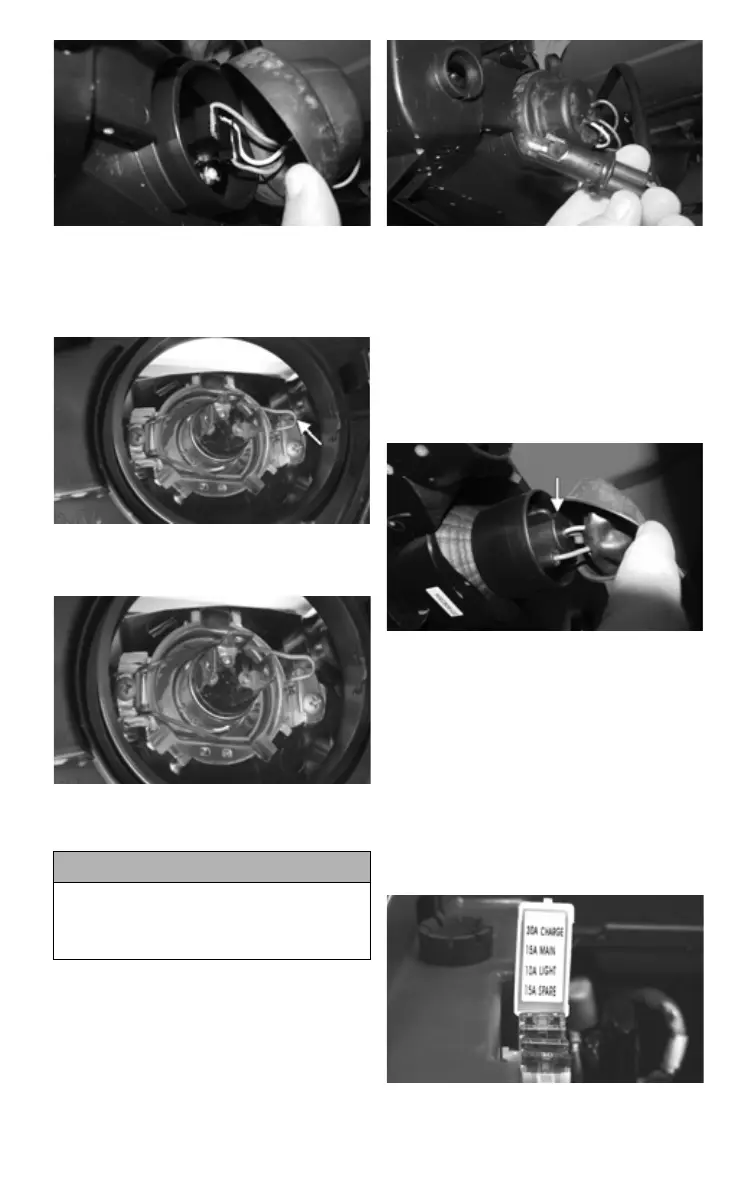

2. Press forward then up on the spring
clip and swing the spring clip away
from the bulb; then remove the bulb
from the housing.
XA058A
3. Install the new bulb into the hous-
ing; then secure with the spring clip.
XA058
4. Connect the three-wire connector to
the bulb; then install the rubber boot.
To replace the front running light bulbs,
use the following procedure.
1. Rotate the bulb socket counter
clockwise to remove from the head-
light housing, account for the seal.
Carefully pull the bulb away from
the socket.
XA059
2. Insert the new bulb into the socket.
Insert the socket into the headlight
housing; then rotate the bulb clock-
wise to secure it into the housing.
To replace the taillight/brake light bulb, use
the following procedure.
1. Pull the rubber boot away; then rotate
the socket counterclockwise to access
the bulb. Account for the seal.
XA056A
2. To remove the bulb, push the bulb in
and turn it counterclockwise.
3. Install the new bulb by turning it
clockwise while pushing in.
4. Insert the socket into the taillight hous-
ing; then rotate the socket clockwise to
secure.
Fuses
The fuse box (with three active fuses and
one spare fuse) is located under the seat
near the battery.
KM102
CAUTION
When replacing the headlight bulb, be
careful not to touch the glass portion
of the bulb. Grasp the new bulb with a
clean cloth.
