Hydraulic Brakes
Brake Fluid

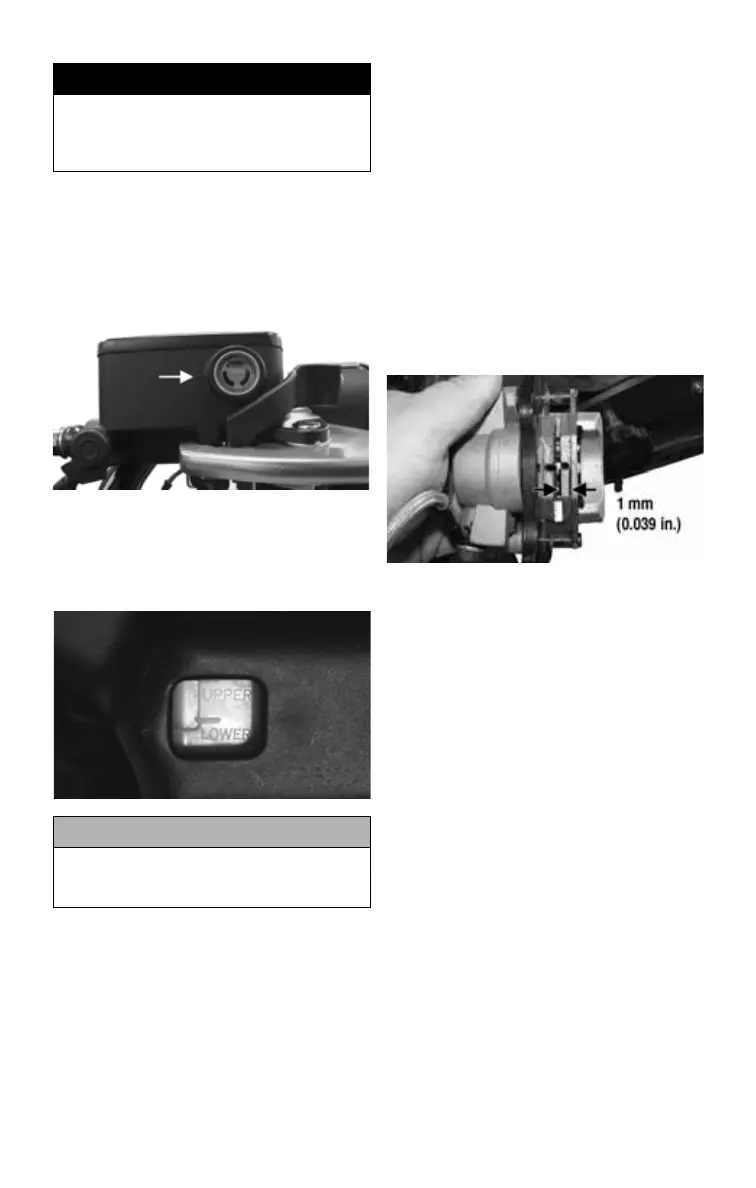

Check the brake fluid level in the hand
brake fluid reservoir. If the level in the
reservoir is below the lower mark in the
sight glass, add DOT 4 brake fluid.
KM994A
Check the brake fluid level in the auxil-
iary brake fluid reservoir.
If the level in the reservoir is below the
LOWER mark, add DOT 4 brake fluid.
KM137
Brake Hoses
Carefully inspect the hydraulic brake hoses
for cracks or other damage. If found, take
the ATV to an authorized dealer to have
the brake hoses replaced.
Brake Pads
The clearance between the brake pads
and brake discs is adjusted automatically
as the brake pads wear. The only mainte-
nance that is required is replacement of
the brake pads when they show excessive
wear. Check the condition of each of the
brake pads as follows:
1. Remove a front wheel.
2. Measure each brake pad thickness.
3. If thickness of either brake pad fric-
tion material is less than 1.0 mm
(0.039 in.), take the ATV to an autho-
rized dealer to have brake pads
replaced.
XA060A
4. Install the wheel and tighten using a
crisscross pattern to 40 ft-lb.
Brake Lever Lock
NOTE: The brake lever lock must
lock the wheels. If it doesn’t, take the
ATV to an authorized dealer for ser-
vice.
Gas/Vent Hoses
Replace the gas hose every two years.
Damage from aging may not always be
visible. Do not bend or obstruct the rout-
ing of the carburetor vent hose. Make
certain that the vent hose is securely con-
nected to the carburetor and hose holder
and the opposite end is always open.
Protective Rubber Boots
The protective boots should be inspected
periodically according to the Mainte-
nance Schedule.
! WARNING
Be sure to inspect the hydraulic brake
system before each use. Always main-
tain brakes according to the Mainte-
nance Schedule.
CAUTION
Be careful not to spill any fluid when
filling the brake fluid reservoir. Wipe
away spilled fluid immediately.
