58
8. Allow the element to dry completely.
9. Spray oil generously onto the air filter
elements and work the oil in.
10. Squeeze the element to remove excess
oil.
11. Clean any dirt or debris from inside
the air cleaner. Be sure no dirt enters
the carburetor.
12. Install the foam elements onto the
frame; then place the assembly into
position in the housing and secure with
the retaining cap screw.
13. Install the cover and secure with the
retaining clips.
14. Install the seat making sure it is prop-
erly secured.

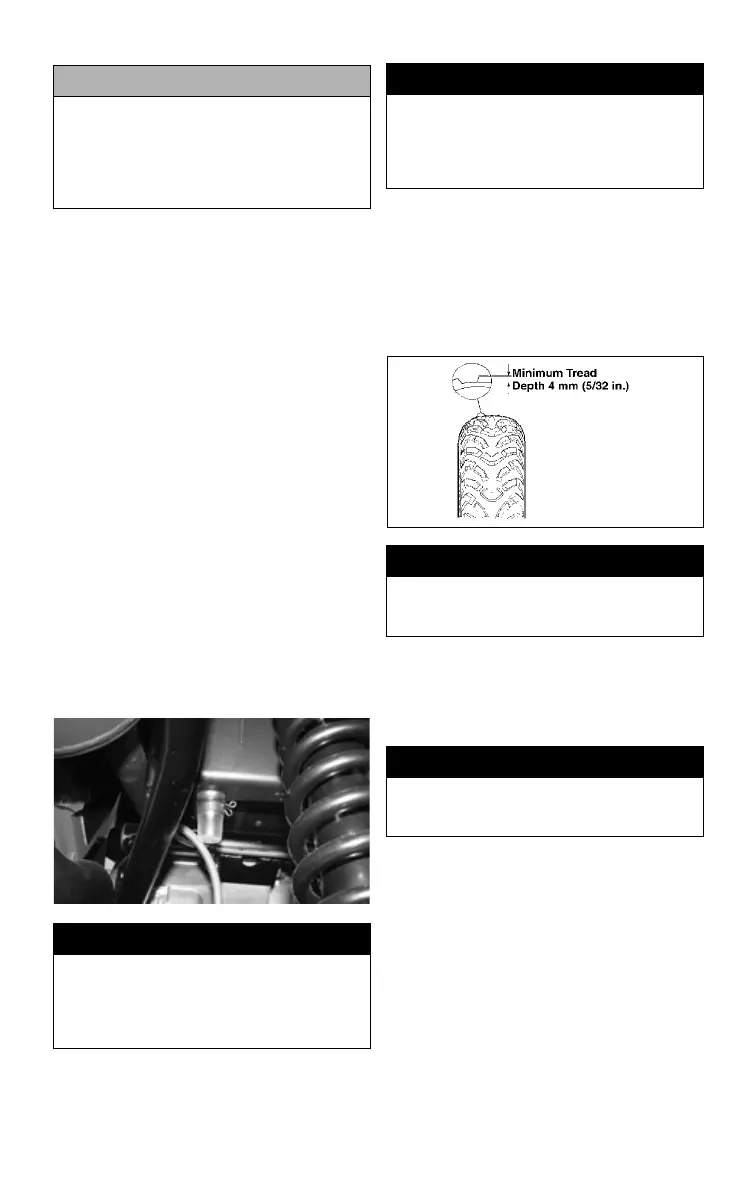

Air Filter Housing Drain
Tube
Periodically (weekly) check the drain
tube for gasoline or oil accumulation. If
noticed, remove the drain tube cap from
beneath the housing, drain the gasoline or
oil into a suitable container, and install
and secure the tube cap.
XA055
Tires
Tire Tread Condition
The use of worn-out tires on an ATV is
very dangerous. A tire is considered to be
worn out when the depth of the tread is
less than 4 mm (5/32 in.). Be sure to
replace the tires before reaching this min-
imum specification.
ATV-649A
Tire Replacement
The ATV has low-pressure tubeless tires.
Have this maintenance performed by a
qualified tire repair station.
Tubeless Tire Repair
Should a leak or flat tire occur due to a
puncture, the tire may be repaired using a
plug-type repair. If the damage is from a cut
or if the puncture cannot be repaired using a
plug, the tire must be replaced. When oper-
ating the ATV in areas where transportation
or service facilities are not readily available,
it is strongly recommended to carry a plug-
type repair kit and a tire pump along.
CAUTION
A torn air filter can cause damage to the
ATV engine. Dirt and dust may get inside
the engine if the element is torn. Care-
fully examine the element for tears
before and after cleaning it. Replace the
element with a new one if it is torn.
! WARNING
If gasoline is present in the drain tube,
do not operate the vehicle until the
cause of the leak is found and
repaired. This should be done by an
authorized dealer.
! WARNING
Always use the size and type of tires
as specified. Refer to the specifica-
tions chart for proper tire inflation
pressure, and always maintain proper
tire inflation pressure.
! WARNING
The use of worn-out tires can be dan-
gerous and can increase the risk of an
accident.
! WARNING
Use only approved tires when replacing
tires. Failure to do so could result in
unstable ATV operation.
