Wheels
1. Park the ATV on level ground and
engage the brake lever lock.
2. Loosen the lug nuts on the wheel to
be removed.
3. Elevate the ATV.
4. Remove the lug nuts.
5. Remove the wheel.
6. Install the wheel and install the lug
nuts.
7. Tighten the nuts in a crisscross pat-
tern to 40 ft-lb.
8. Remove the jack.
Muffler/Spark Arrester
The muffler has a spark arrester which
must be periodically cleaned. At the
intervals shown in the Maintenance
Schedule, clean the spark arrester using
the following procedure.

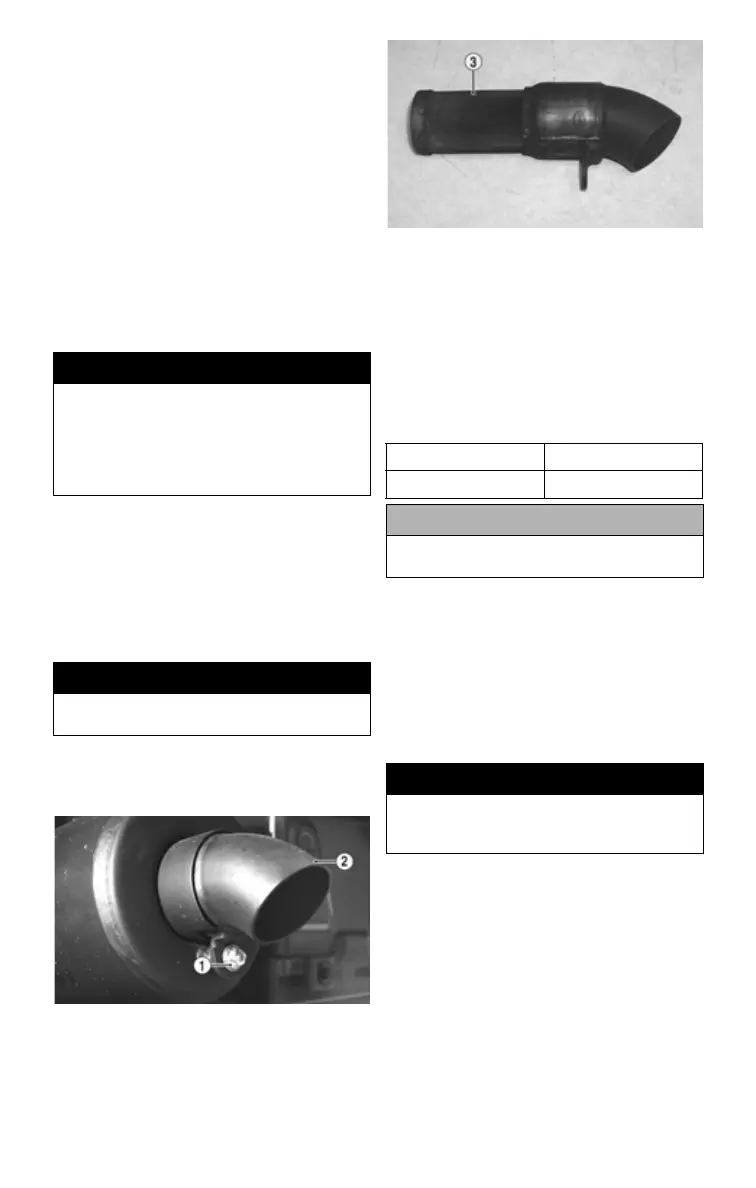

1. Remove the cap screw (1) securing
spark arrester; then remove the
arrester (2).
KM139A
2. Using a brush, clean the carbon
deposits from the arrester screen (3)
taking care not to damage the
screen.
KM140B
NOTE: If the screen is damaged in
any way, it must be replaced.
3. Install the spark arrester and secure
with the cap screw.
Light Bulb Replacement
The wattage rating of each bulb is shown
in the chart. When replacing a burned
bulb, always use the same wattage rating.
NOTE: The bulb portion of the
headlight is fragile. HANDLE WITH
CARE. When replacing the headlight
bulb, do not touch the glass portion
of the bulb. If the glass is touched, it
must be cleaned with a dry cloth
before installing. Skin oil residue on
the bulb will shorten the life of the
bulb.
To replace the headlight bulb, use the fol-
lowing procedure.
1. Remove the rubber boot from the
back of the headlight housing; then
remove the three-wire connector
from the bulb.
! WARNING
Failure to tighten the wheel nuts to the
specified torque value can be hazard-
ous. If the wheel nuts are not properly
tightened, the wheel can come off
causing an accident and possible
injury.
! WARNING
Wait until the muffler cools to avoid
burns.
Headlight 12V/35W/35W
Taillight/Brake Light 12V/5W/21W
CAUTION
Use only specified bulbs indicated in
the chart as replacement bulbs.
! WARNING
Do not attempt to remove the bulb
when it is hot. Severe burns may
result.
