56
10. Remove the jumper cables in oppo-
site order of hook-up (4, 3, 2, 1). Be
careful not to short cables against
bare metal.
NOTE: Have the battery and elec-
trical system checked prior to oper-
ating the vehicle again.
Spark Plug
The ATV comes equipped with a specified
spark plug. See the specifications chart for
the correct spark plug. A light brown insu-
lator indicates that the plug is correct. A
white or dark insulator indicates that the
engine may need to be serviced or the car-
buretor may need to be adjusted. Consult
an authorized dealer if the plug insulator is
not a light brown color. To help prevent
cold weather fouling, make sure to thor-
oughly warm up the engine before operat-
ing.
To maintain a hot, strong spark, keep the
plug free of carbon.
Before removing the spark plug, be sure to
clean the area around the spark plug. If
you do not, dirt could enter engine when
removing or installing the spark plug.

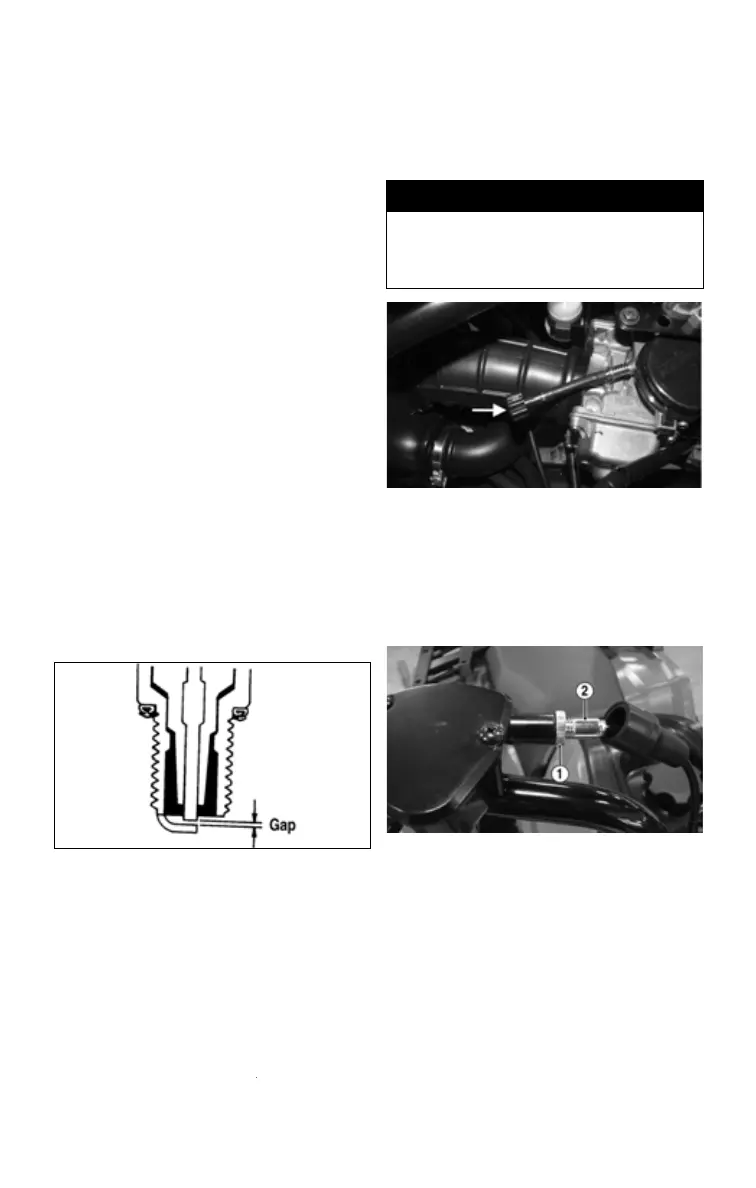

Adjust the gap to 0.6-0.7 mm (0.024-
0.028 in.) for proper ignition. Use a
feeler gauge to check the gap.
ATV-0052B
A new spark plug should be tightened 1/2
turn once the washer contacts the cylinder
head. A used spark plug should be tight-
ened 1/8-1/4 turn once the washer contacts
the cylinder head.
Engine Idle RPM
Adjustment
To properly adjust the idle, a tachometer is
necessary. If one is not available, take the
ATV to an authorized dealer.
To adjust idle RPM:
1. Start the engine and warm it up to
normal operating temperature.
2. Turn the idle adjustment screw in or
out until the engine idles at 1250-
1350 RPM.
KM996A
Throttle Cable Adjustment
To adjust the throttle cable free-play:
1. Slide the rubber boot away; then
loosen the jam nut (1) from the
throttle housing.
KM992A
2. Turn the throttle cable adjuster (2)
until the throttle lever has proper
free-play of 3-5 mm (1/8-1/5 in.).
3. Tighten the jam nut against the
throttle housing securely; then slide
the rubber boot over the adjuster.
! WARNING
Adjust the idle to the correct RPM.
Make sure the engine is at normal
operating temperature before adjust-
ing the idle RPM.
