BlueTOAD Spectra Deployment
TrafficCast Quick Start—BlueTOAD Spectra and Spectra RSU
Revision 02 May 2019 2-15

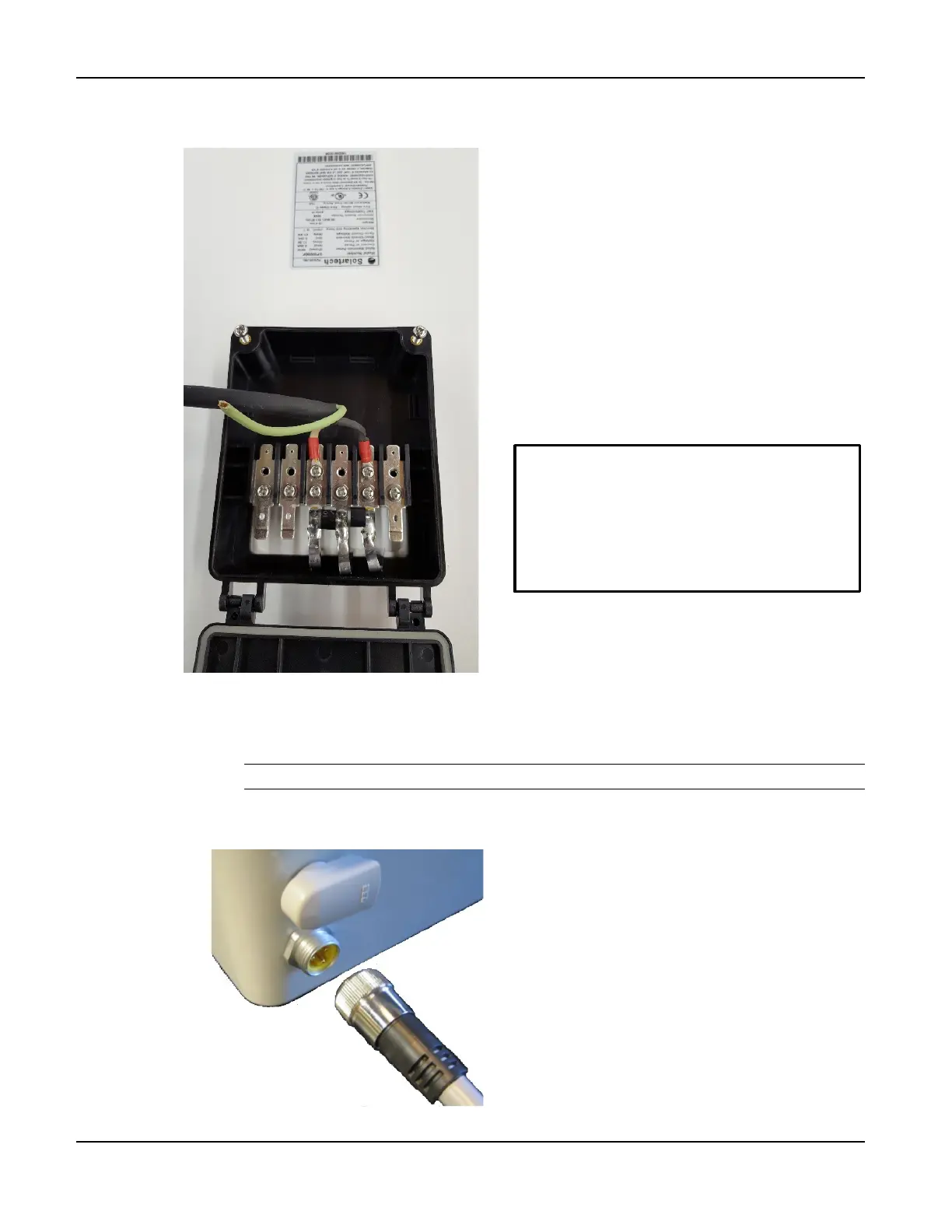

f. As shown below, connect the Solar Panel Power Cable to the Junction Box on the
Solar Panel:
g. Connect the Solar Panel Power Cable to the Spectra enclosure:
i. Insert the cable plug into its connector on the enclosure.
Note: The plug is keyed—you can only insert it in the correct position.
ii. Hand tighten the connector nut.
Important: After connecting the cable,
use a multi-meter to make sure that:
• The cable is correctly
connected to the junction box
• The solar panel is outputting
To Next Page
