BlueTOAD Spectra Deployment
TrafficCast Quick Start—BlueTOAD Spectra and Spectra RSU
2-16 Revision 02 May 2019
h. Install the Battery (cables, connectors, and tie-downs are supplied)
i. Open the Spectra Solar enclosure.
ii. Attach the Quick Connect to the Battery—with the self-healing fuse connected to the
positive (red) terminal.
iii. Mount the Battery vertically with the positive terminal on the top.
iv. Secure the Battery with the tie-downs.

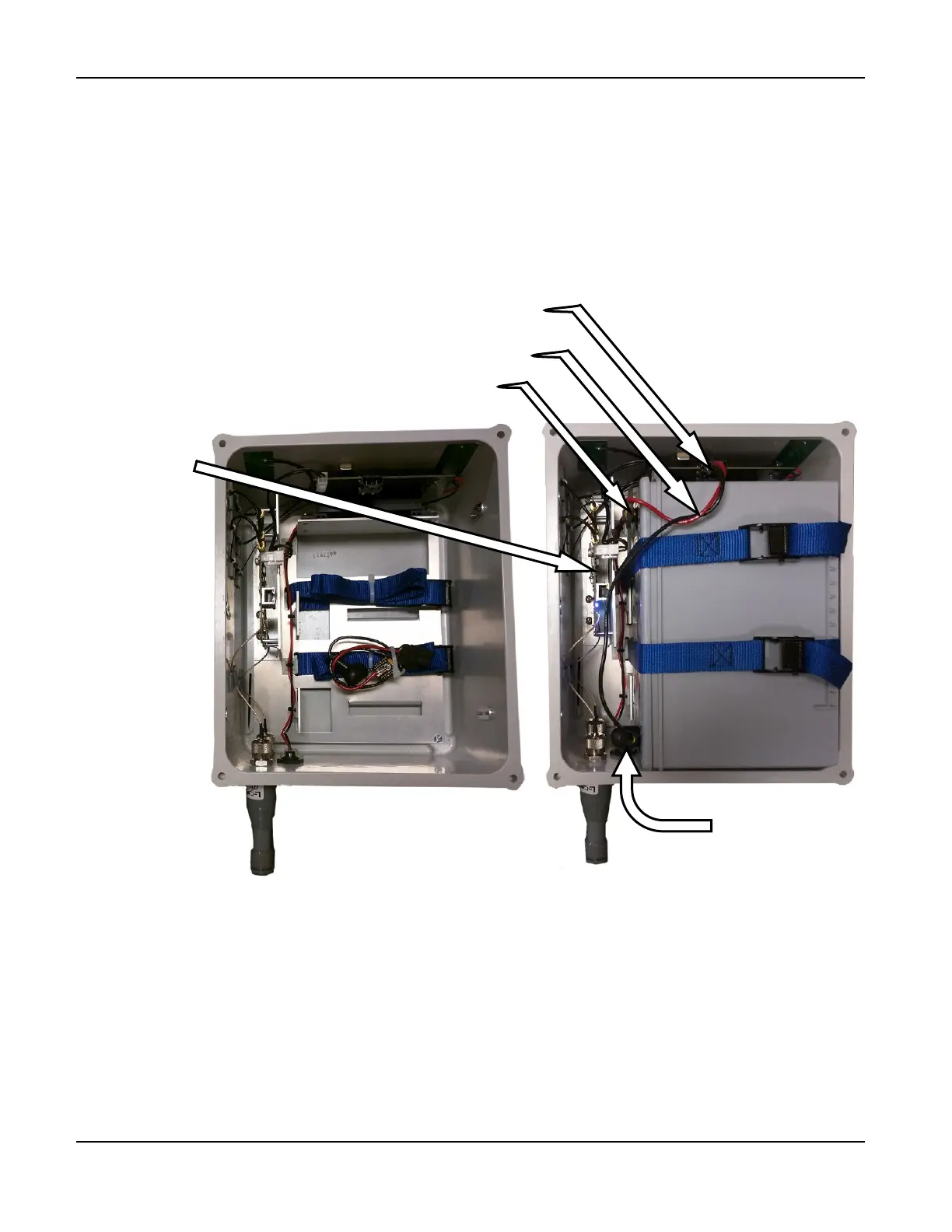

Before Battery Installation After Battery Installation
Plug in the Quick Connect cable here to Connect
the Battery to the Charge Controller (Step h.)
Positive (red) Battery Terminal
Negative
Battery Terminal
Card (PCB)
with the
LEDs
