BlueTOAD Spectra Deployment
TrafficCast Quick Start—BlueTOAD Spectra and Spectra RSU
Revision 02 May 2019 2-17
i. Connect the Battery and Power ON the Detector.
i. Refer to the photograph on the previous page to connect the Battery to the Charge
Controller with the Quick Connect cable.
ii. On the BlueTOAD Card (PCB), LED 7 should start flashing.
iii. In the presence of Bluetooth signals, confirm LEDs on the PCB operate as shown below.
iv. Close and fasten the Solar Cellular Enclosure.
j. Go to Step 11, Confirm Network Connectivity and Data Collection.
LED Function Color @ Initial Startup @ Normal State (takes up to 5 minutes)
7 Network Connection
Multi-
color
White – Searching for Cell
Green – Searching for GPS
OFF – Cell and GPS established
5 Bluetooth Detection
Multi-
color
Blue – Discoverable
Purple – Non-Discoverable
Blinks upon detection
4 Diagnostics Reporting Red OFF Blinks – 1 x per 3 sec.
3 Connection Strength Blue OFF
Flash blue if > - 90 dbm (good)
Solid blue if < - 90 dbm (poor)
2 Kernel Diagnostics Green OFF Blinks – 1 x per 3 sec.

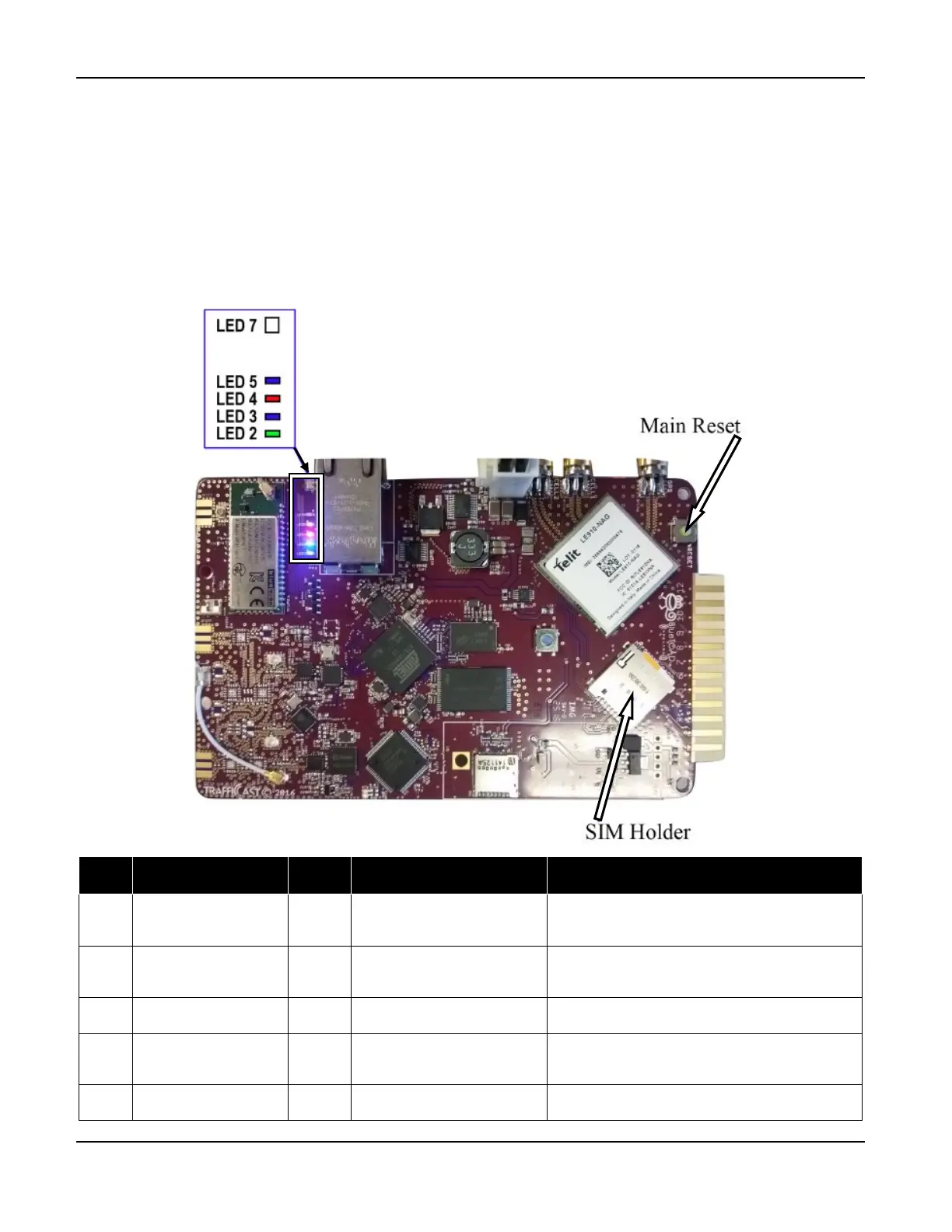

LEDs inside a BlueTOAD Spectra
