Trane Technologies 4TXD2060A10NUA - Piping Preparation and Connections

12
MS-SVN084A-EN
PPiippiinngg PPrreeppaarraattiioonn
Solder Connection: All cut ends are to be round, burr free, and cleaned. Failure to follow this practice increases the chances for refrigerant
leakage.

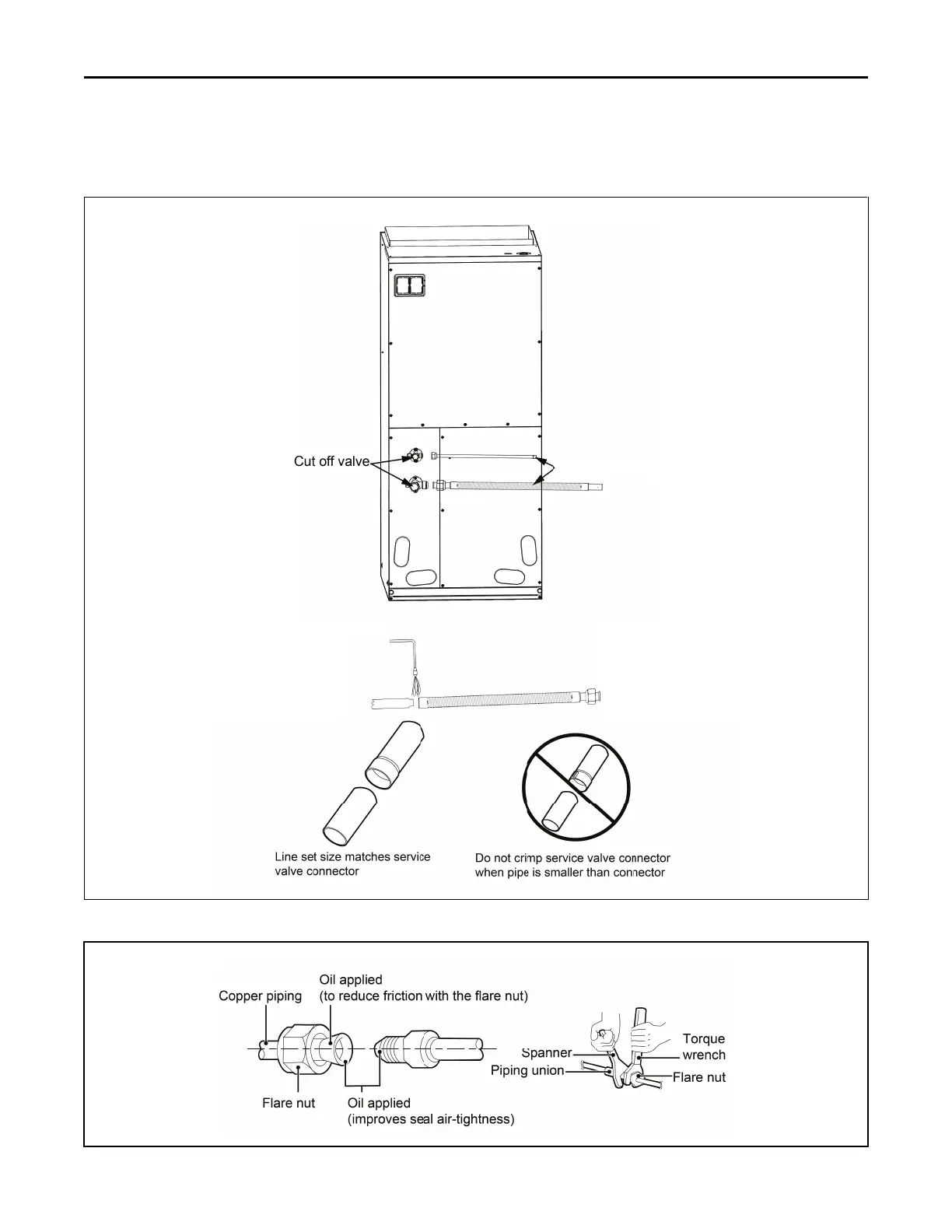

Connecting piping
SSccrreeww CCoonnnneeccttiioonn
IInnssttaallllaattiioonn
