16
RT-SVX34V-EN

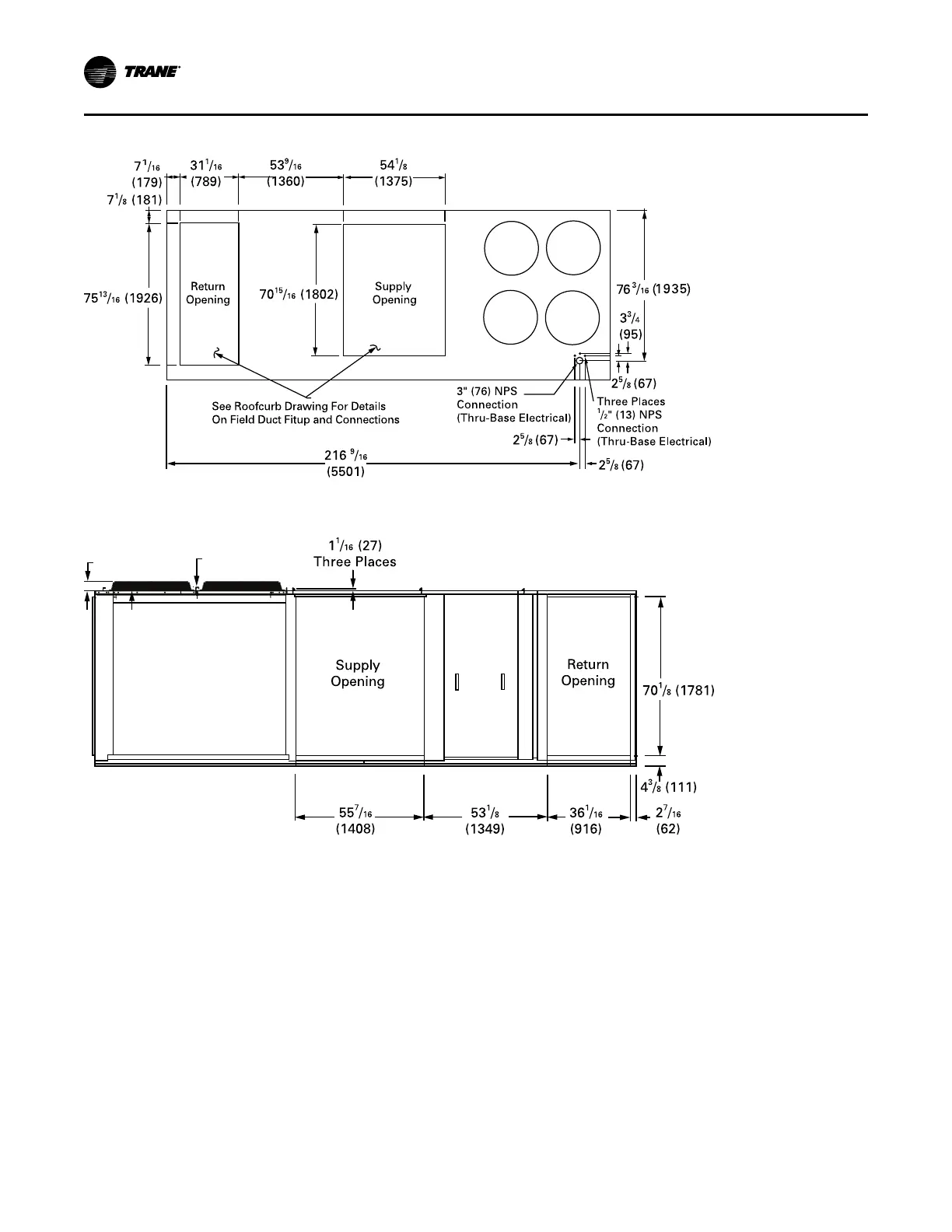

Figure 9. 60 Hz 40-50, 50 Hz 33-42 tons (TCD, TED, YCD low and high heat)
Figure 10. Rear view showing duct openings for horizontal supply and return, 60 Hz 40-50, 50Hz 33-42 Tons (TCH,
TEH, YCH low and high heat)
Notes:
• On horizontal units, the VFD is located between the supply and return ductwork, which makes access limited.
• For combination of horizontal and downflow openings (digit 3 = F or R) see for appropriate downflow dimensions and
for appropriate horizontal dimensions.
Unit Dimensions and Weights
