8. Filed setting

36 SS-SVM001A-EM

48K/60K

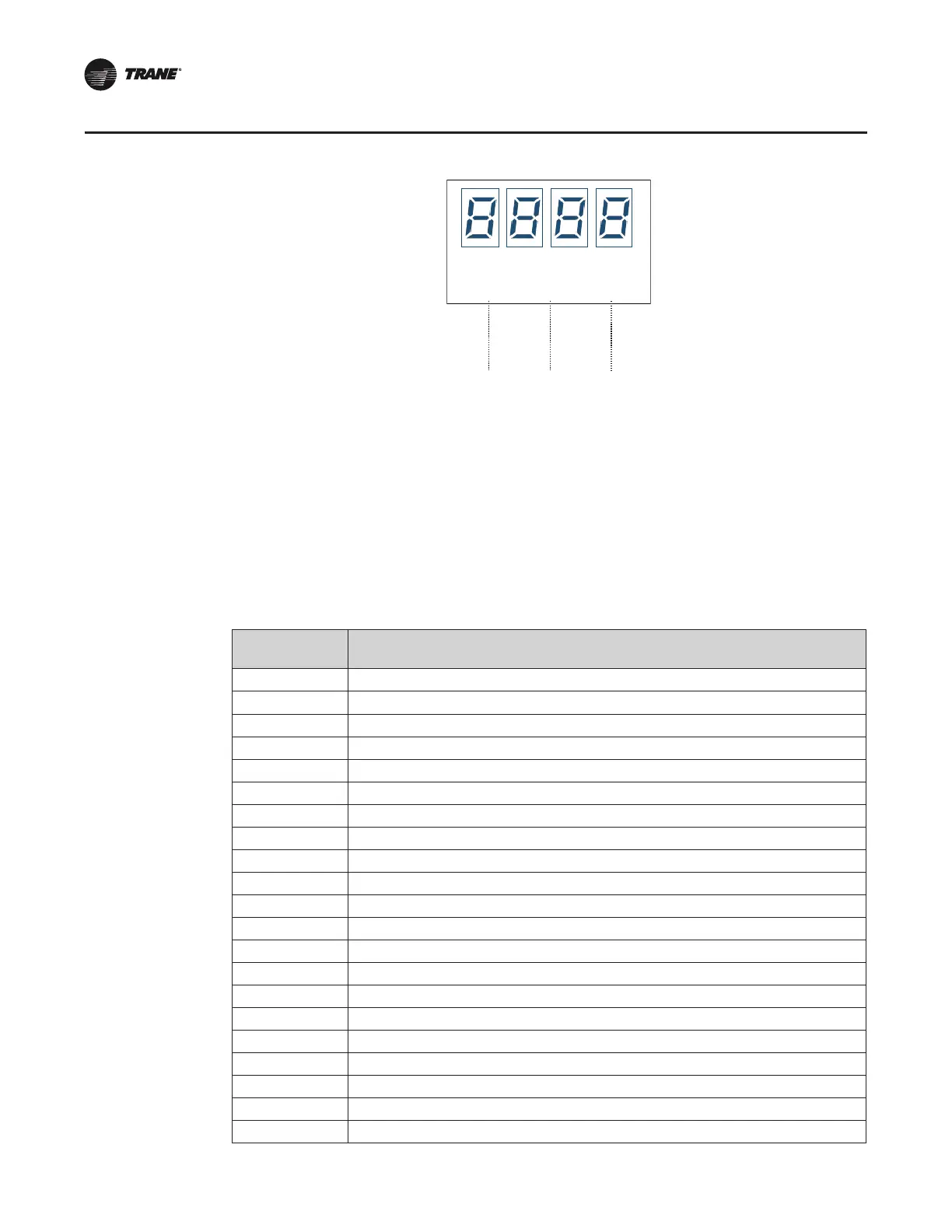

There are 3 buttons on the digital display board:

1. SWITCH button:

Indoor parameters and outdoor parameters can be selected in turn by pressing it. “P.”/“H.”-

outdoor unit parameter

2. INCREASE button:

Each time it is pressed, the number rises by 1, hold down it, the number will be rapidly

increased;

3. DECREASE button:

Each time it is pressed, the number lowers by 1, hold down it, the number will be rapidly

decreased.

Parameters can be checked in the following table below.

Parameter

code

Descriptions

0 Protection code or fault code

P. 1 Target frequency

P. 2 Driving frequency

P. 4 Outdoor EEV opening

P. 5 Outdoor EEV target opening

P. 6 Upper DC motor revolving speed

P. 8 AC Input voltage

P. 9 Current

P. 1 0 Modular temper

P. 11 Capacity needed

P. 1 2 Modular fault

P.20 Outdoor ambient temperature

P.21 Outdoor coil temperature

P.22 Outdoor defrost temperature

P.23 Suction temperature

P.24 Discharge temperature

H.1 DSH actual value

H.2 DSH target value

H.3 Target pressure in cooling mode (Actual pressure= the displayed value/100)

H.4 Target pressure in heating mode (Actual pressure= the displayed value/100)

H.5 Actual pressure (Actual pressure=the displayed value/100)

Select

Increase

Decrease

●●●

Trane 4TYK8536B1000AA - Page 37
