BAS-SVX076C-EN
9
Installation
Read the following guidelines before starting installation.
Disconnect power prior to installation.
Reinstall any covers displaced during installation before re-powering unit.
Mount the meter in an appropriate electrical enclosure near equipment to be monitored.
Do not install the load side of a variable frequency drive (VFD).
Mount the meter using one of the following two methods:
1. DIN Rail Mount
a. Attach mounting clips to the underside of housing by sliding them into the slots from the
inside.
NNoottee:: The stopping pegs must face the housing and the outside edge of the clip must be
flush with the outside edge of the housing.
b. Snap the clips onto the DIN rail.

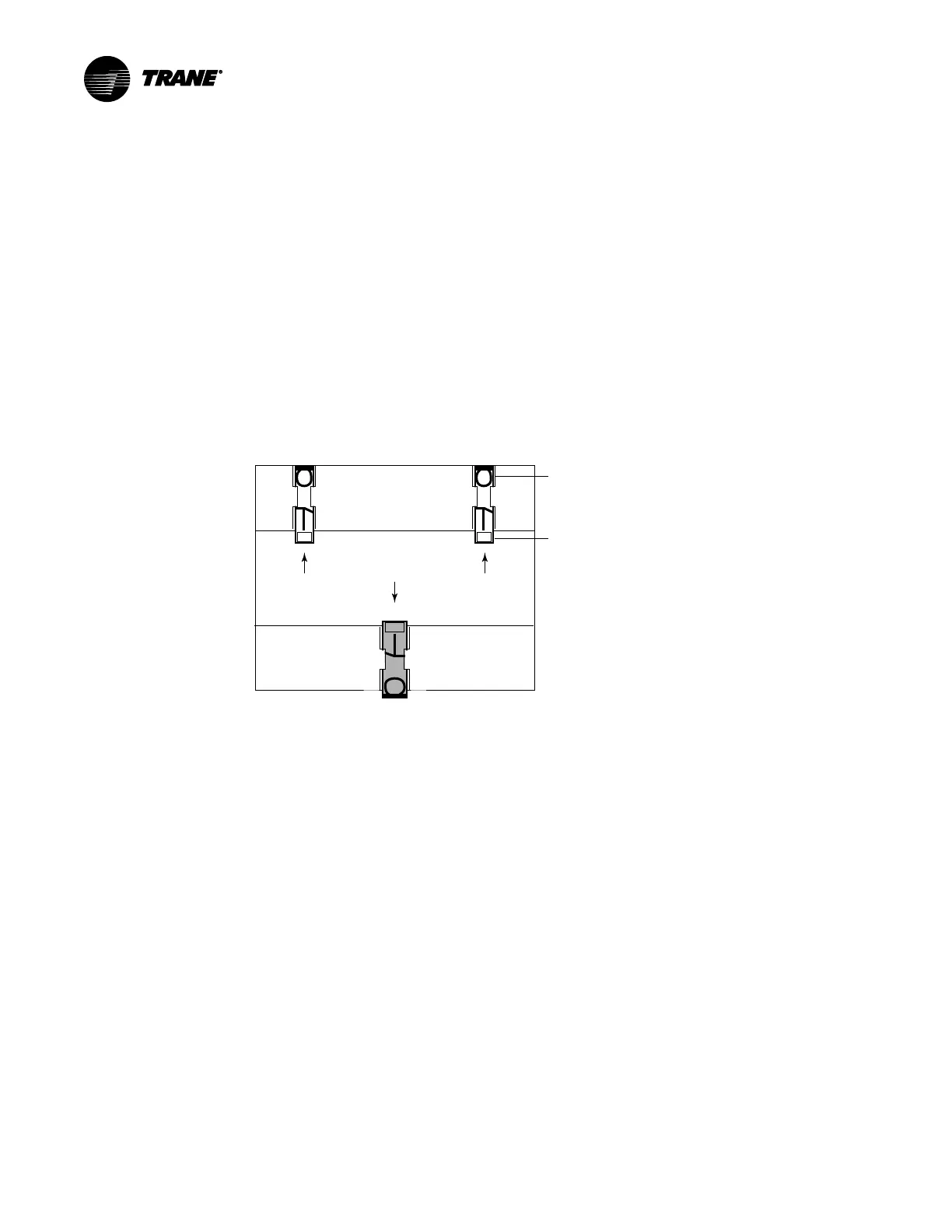

Clip flush with
outside edge
Snap onto
DIN rail
Insert clips from inside
2. Screw Mount
a. Attach mounting clips to the underside of housing by sliding them into the slots from the
inside.
NNoottee:: The stopping pegs must face the housing and the outside edge of the clip must be
flush with the outside edge of the housing.
