FAXA-SVX01B-EN 19
Installation
dimensions
& weights
detail A
THRU-BASE MAIN POWER WIRING ENTRANCE
HOLE Ø3.000’’
NOTE: DRILL OR PUNCH HOLE IN COVER PLATE FOR
SMALLER CONDUIT CONNECTION
3x

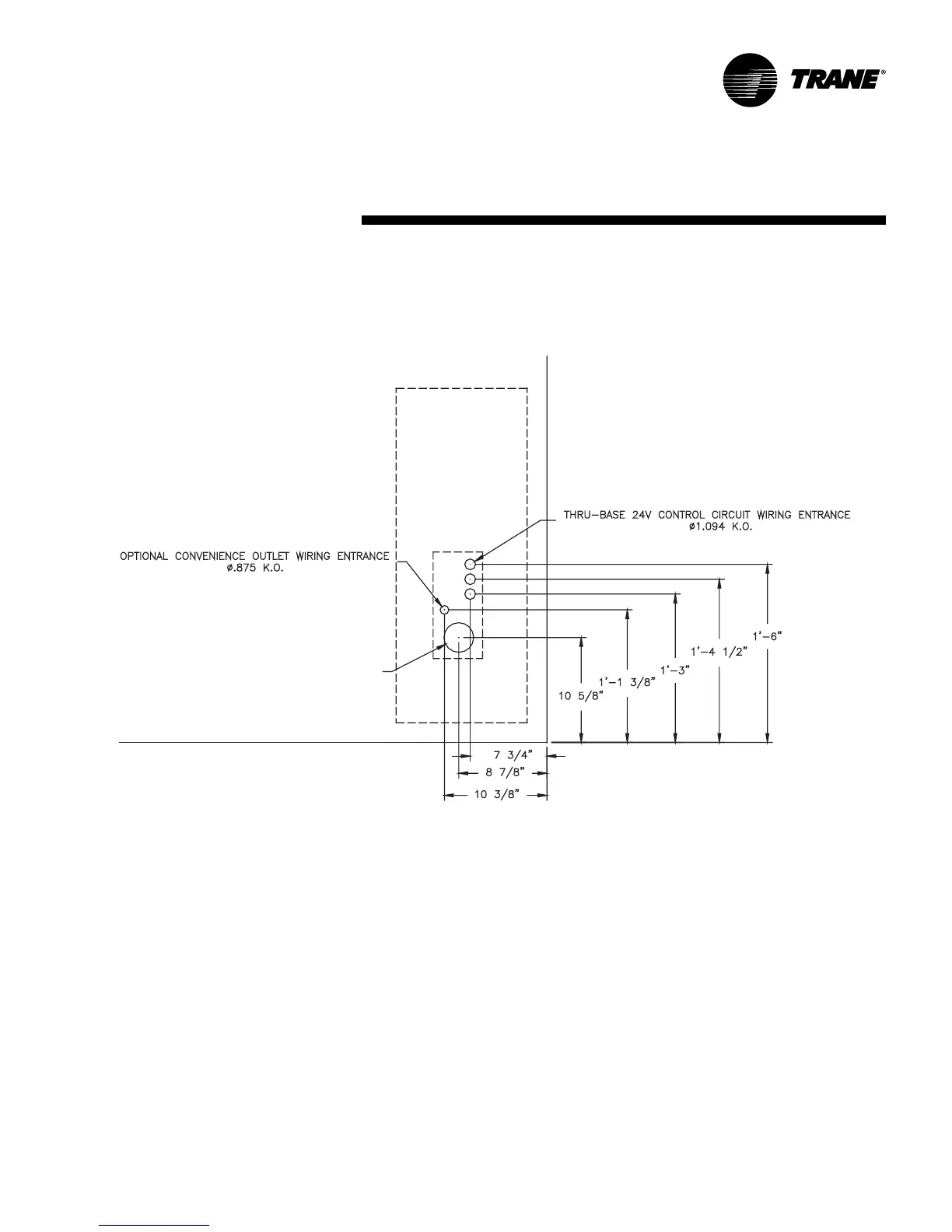

Fresh air unit control panel detail,
all unit sizes
top view
