Trane GRAA - Installation Location and Clearances; Proper Installation Location; Minimum Clearances to Combustibles

MUA-SVX003B-EN
11
Refer to Figure 2, p. 11 and Figure 3, p. 11 for required clearances to combustible material.
WWAARRNNIINNGG
PPrrooppeerr IInnssttaallllaattiioonn LLooccaattiioonn RReeqquuiirreedd!!
FFaaiilluurree ttoo ffoollllooww iinnssttrruuccttiioonnss bbeellooww ccoouulldd rreessuulltt iinn ddeeaatthh oorr sseerriioouuss iinnjjuurryy..
DDoo nnoott ppllaaccee uunniitt iinn aa llooccaattiioonn wwhheerree sseerrvviiccee ppeerrssoonnnneell ccaann nnoott ssaaffeellyy sseerrvviiccee tthhiiss
eeqquuiippmmeenntt ((ii..ee.. rrooooff eeddggee,, sskkyylliigghhttss,, eettcc..))..
NNoottee:: If your unit is equipped with through the base utilities and/or service convenience package
- refer to Submittal, review in entirety before mounting the unit.

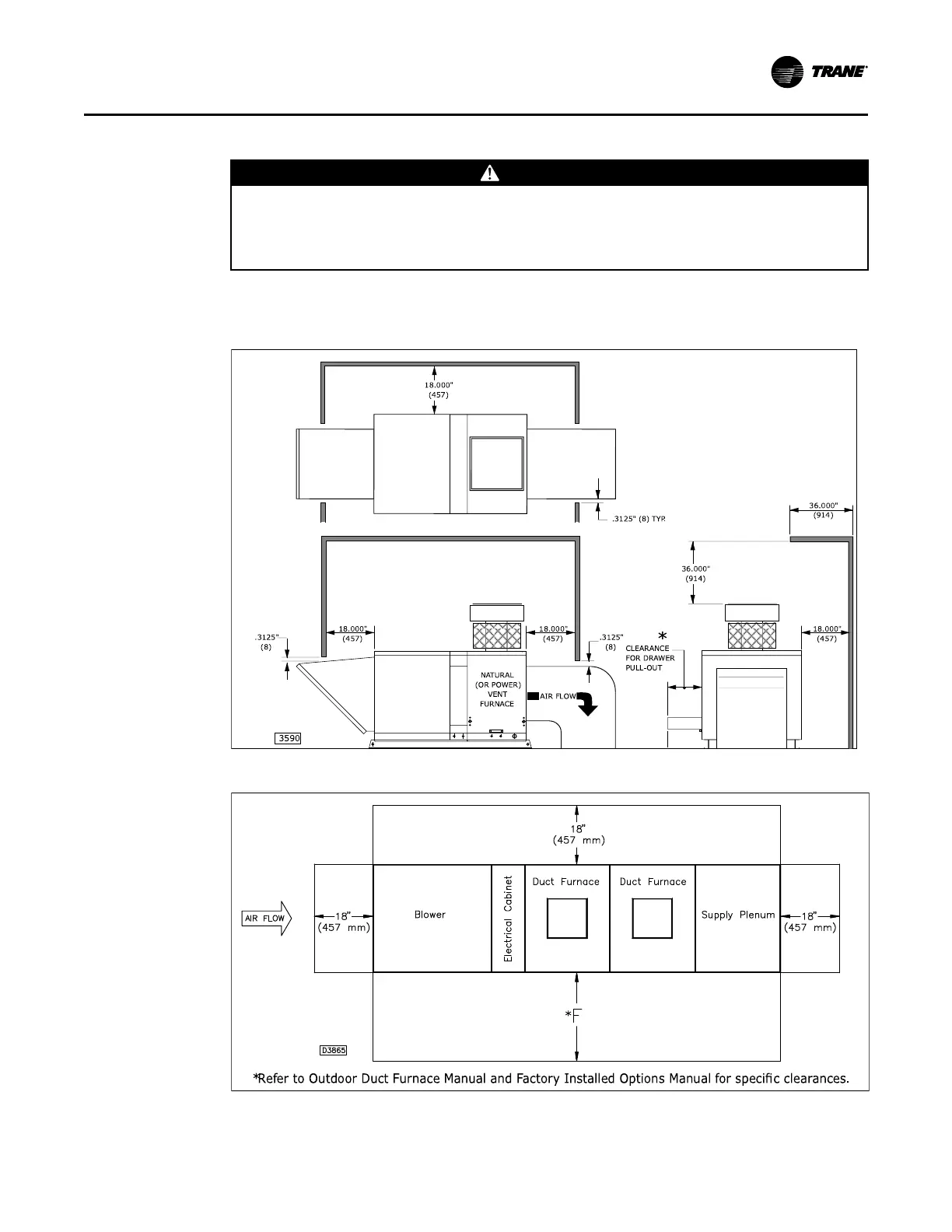

Figure 2. Minimum Clearances to Combustible Material or Obstructions
Figure 3. Minimum Clearances to Combustible Material or Obstructions
NNoottee:: The unit is equipped with hinged access doors: allow 36 inches minimum for clearance (on
access side) to fully open door and lock in an open position.
GGeenneerraall SSaaffeettyy RReeqquuiirreemmeennttss
