RT-SVX072A-EN
21
Table 6. CVPC furnace drain dimensions
Nom. Ton
(AC/EC)
Furnace
Size/MBh
Dimensions (Note)
Length Height
20 & 25
Low = 235
195-5/32" 9-5/32"
High = 500
195-5/32" 9-5/32"
30
Low = 350
195-5/32" 9-5/32"
High = 500
195-5/32" 9-5/32"
40
Low = 350
240-1/8" 9-5/32"
High = 850
231-1/8" 9-5/32"
50-75
Low = 500
240-1/8" 9-5/32"
High = 850
231-1/8" 9-5/32"
Note: The length dimension is from the relief end of the unit. The height dimension is
from the bottom of the unit base rail.

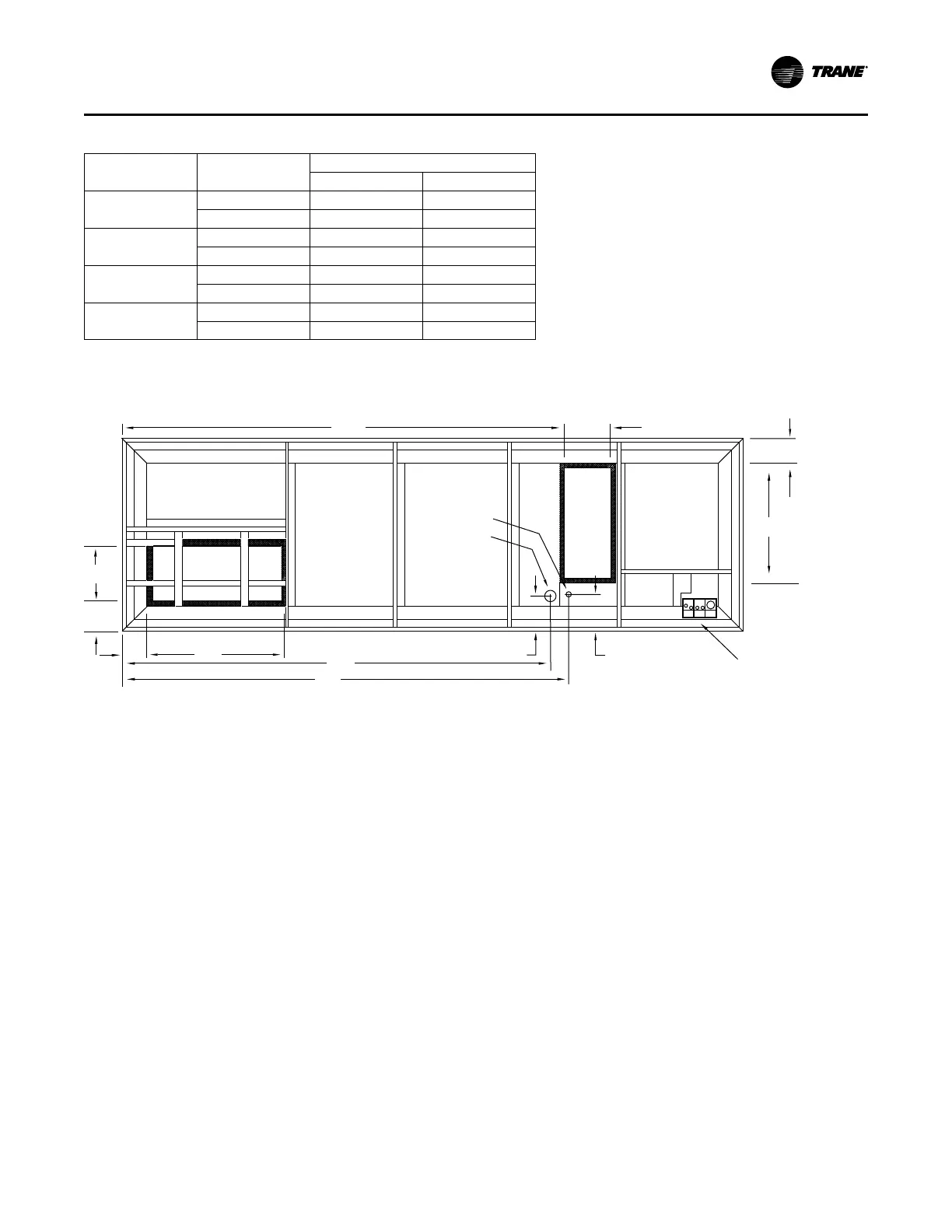

Figure 4. Unit base dimensions, SEH_, SFH_, SLH_, SSH_, SXH_ units (20 to 75 ton)
NNoottee:: Use the table that follows.
A
B
E
G
F1
J
D
C
Electrical Entrance
H
K
A
B
Holes
L
F2
Unit Base Notes:
1. SEH_ — For 200/230 volt electric heat units, use hole “A” (3⅝" diameter).
2. SFH_ — For gas heat units, use hole “B” (1¼" diameter).
3. SLH_ and SSH_ — For steam or hot water heat units, use holes “A” (3⅝" steam
or hot water supply) and “B” (3" steam or hot water return).
4. SXH_ — In extended cabinet cooling only units, the holes are omitted
DDiimmeennssiioonnaall DDaattaa
