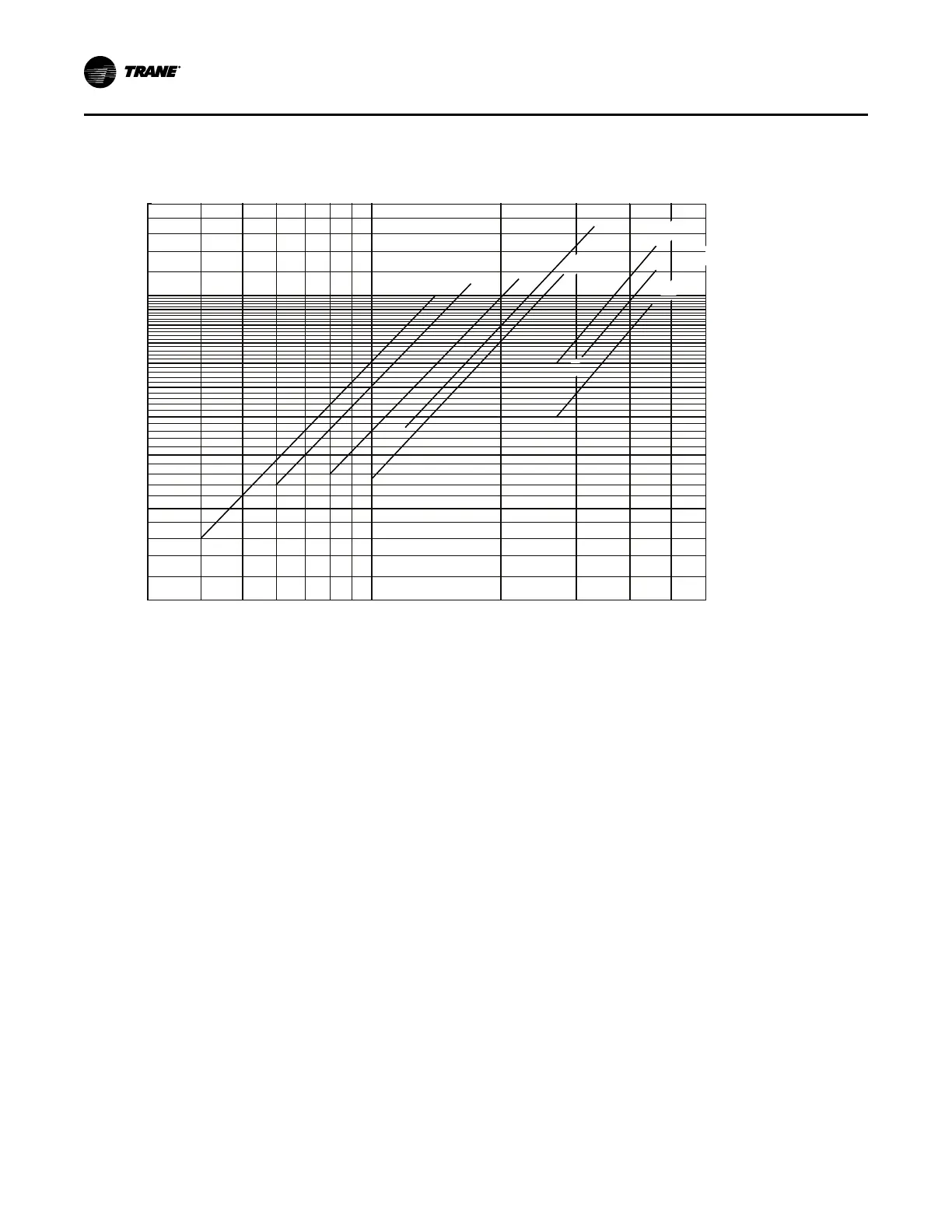

Figure 62. Wet airside pressure drop at 0.075 lb/cu.ft. 90 to 130 ton evaporator coil
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
2.0
90 High 115,130 T
105 T
90 T STD
60, 70, 75T
50 T
40 T
30 T
2
0
-
25 T
Evaporator Wet Airside Pressure Drop at 0.075 lb/cu.ft. 20-130 Ton
Airside Pressure Drop, Inches H
2
0
Unit Airflow, CFM
4000 6000 800010000 20000 40000 60000
