Installation
SO-SVN048A-EN 51

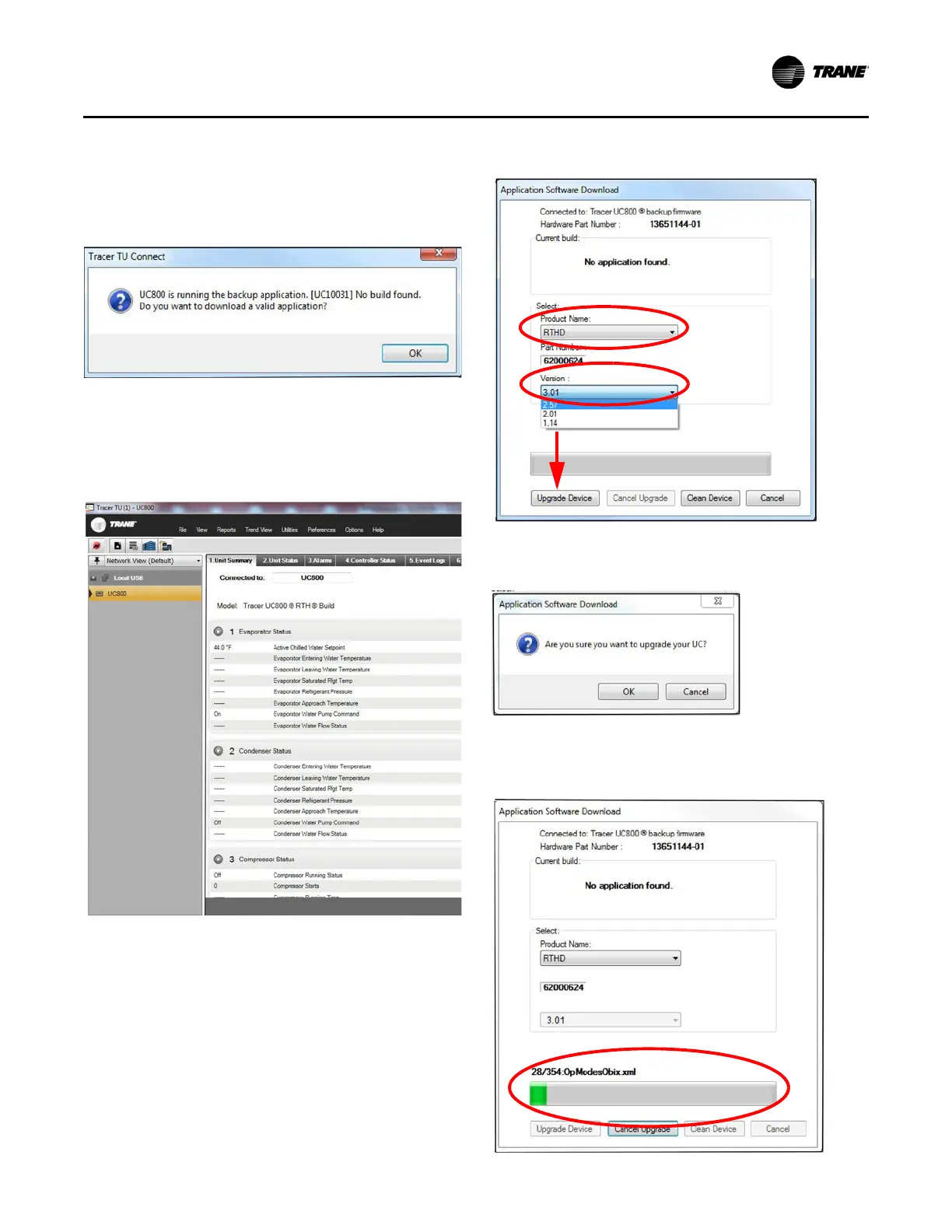

a. If the UC800 target controller has no application
already installed, the Tracer TU Connect dialog box
appears; refer to Figure 79. Click OK and proceed to
Step 3, p. 51.
b. If the UC800 target controller has an application
already installed, Tracer TU’s Unit Summary tab
appears; refer to Figure 80. Skip to “Existing UC800
with Software Already Installed,” p. 55.
3. The Application Software Download dialog box appears,
allowing selection of chiller products. For Product Name,
select RTHD, and for Version, select 3.03 (or newer).
Then click Upgrade Device.
4. A confirmation dialog box appears. Click OK to continue.
5. The download’s progress is indicated by a bar at the
bottom of the Application Software Download dialog box.
Figure 79.
Figure 80.
Figure 81.
Figure 82.
Figure 83.
