7.6 H10 Frame Size Disassembly and

Assembly Instructions

7.6.1 Control Card and Control Card

Mounting Plate

1. Remove the LCP cradle. LCP cradle can be

removed by hand.

2. Remove 3 screws (T10) securing the control card

mounting plate to the control assembly support

bracket.

3. Carefully lift out the control card.

Reinstall in the reverse order.

1LCP

2 Control card mounting plate

3 Control card

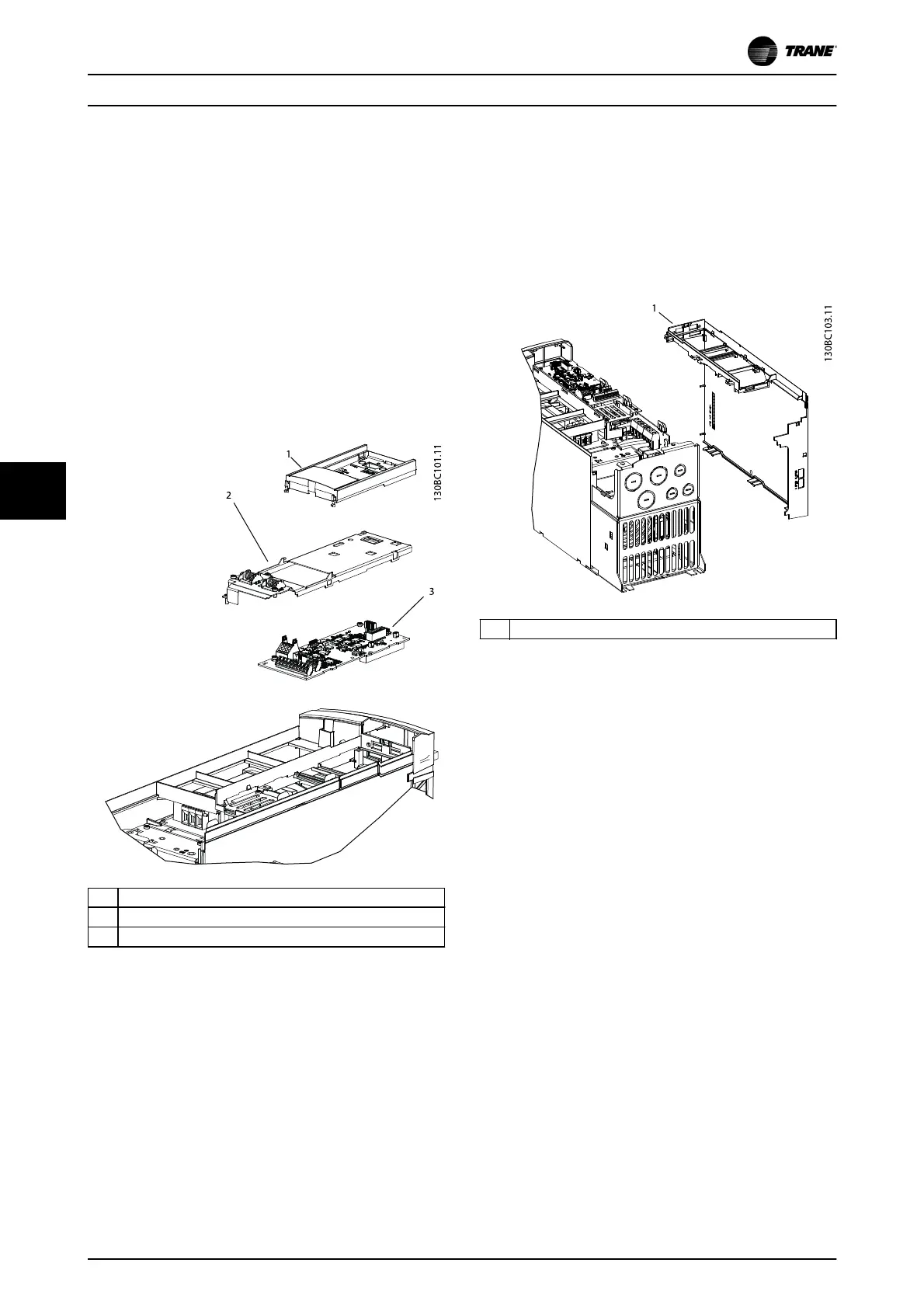

Illustration 7.26 Control Card and Control Card Mounting Plate

7.6.2 Power Card Cover

1. Press and loosen the 3 barbs at the bottom, and

the 3 barbs at the top.

2. Remove the power card cover.

Reinstall in the reverse order. Join the mounting snaps.

1Power card cover

Illustration 7.27 Power Card Cover
