8.4.3 Power Card Mounting Plate
1. Remove 4 screws (T20) from the power card
mounting plate.
2. Remove the power card mounting plate with the
fan attached.
Reinstall in the reverse order.
1Power card mounting plate

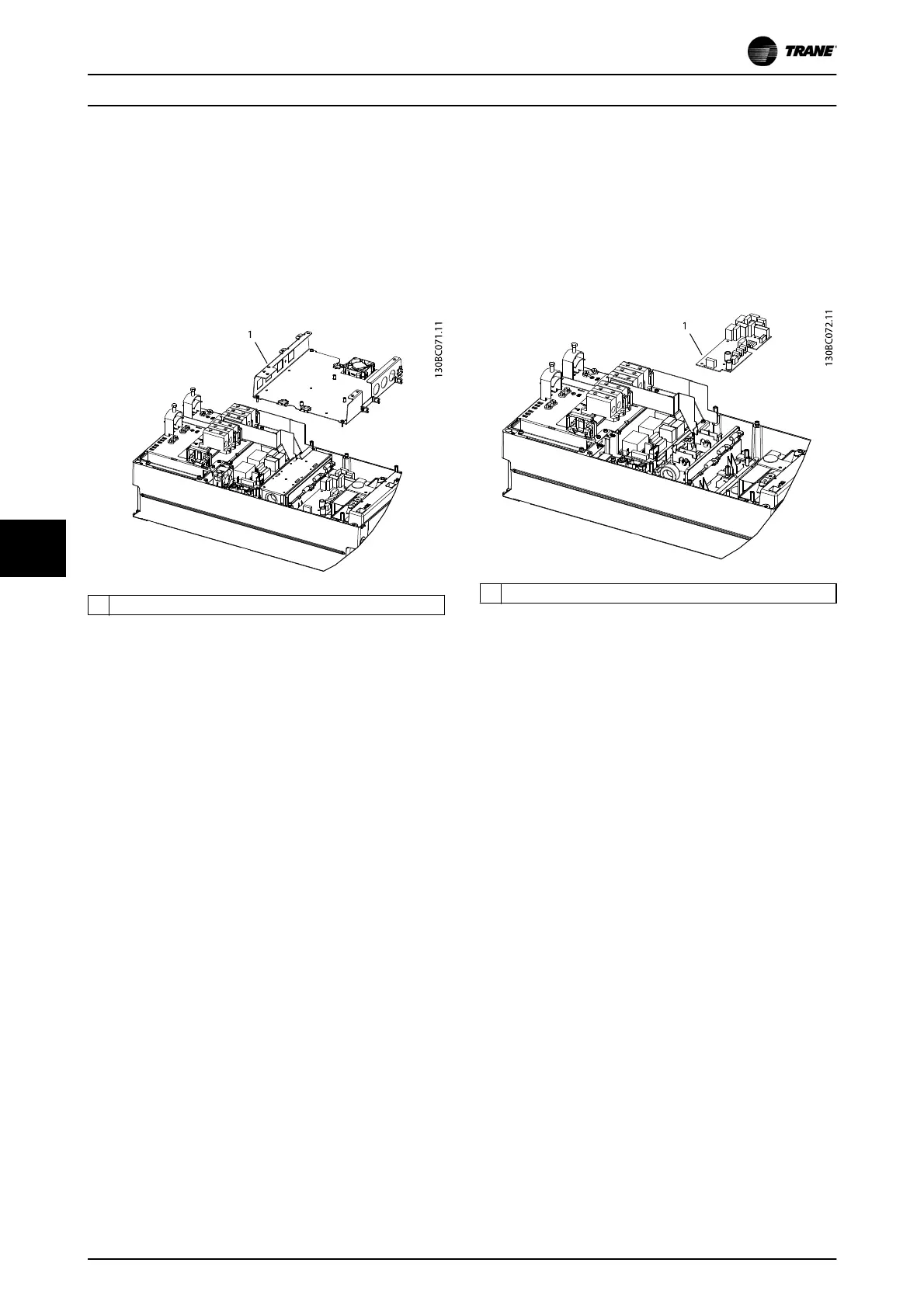

Illustration 8.26 Power Card Mounting Plate
8.4.4 Inrush Card
1. Unplug all cables.
2. Remove 6 screws (T20) from the inrush card.
3. Remove the inrush card.
Reinstall in the reverse order.
1Inrush card
Illustration 8.27 Inrush Card
