Selecting a mountin
g location
CNT
-SVN0
1C-EN
11

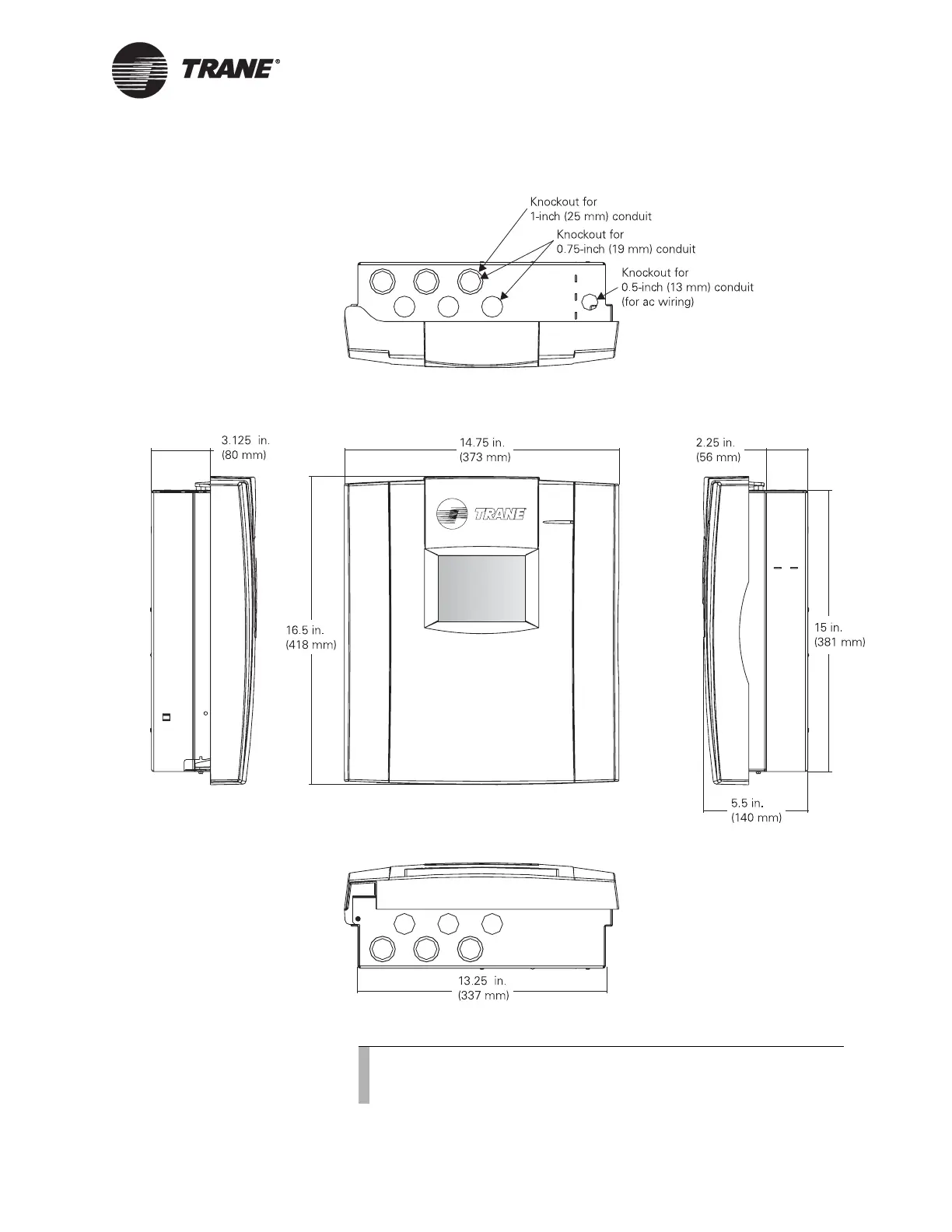

Figur
e 6.
T
rac
er MP581 enclosure dimensions
Not
e:
Six of the twelve knocko
uts are
dual-sized knockouts for 1-inch
(25 mm) and 0.75-i
nch (19 mm) conduit.
Fr
ont view
T
op view
Bott
om view
Lef
t view
Right view
20
22
Table of Contents
Default Chapter
7
Table of Contents
7
Chapter 1 Overview
11
Product Description
11
Specifications
11
Additional Components
12
Operator Display Models
12
Sensors
12
EX2 Expansion Modules
13
Power Transformer
13
Agency Listings/Compliance
14
Tracer MP581 Controller
14
Expansion Module
14
Inspection Upon Receipt
15
Tracer MP581 with Enclosure
15
Frame-Mounted Tracer MP581
15
Required Tools
15
Chapter 2 Installing the Frame-Mounted Tracer MP581
17
Enclosure Requirements
17
Installing the Termination Board
18
Chapter 3 Mounting the Enclosure
19
Selecting a Mounting Location
19
Operating Environment Requirements
19
Clearances
20
Mounting the Enclosure
22
Chapter 4 Wiring High-Voltage Ac Power
23
Local Power Requirements
23
Circuit Requirements
23
Wiring High-Voltage Power
24
Chapter 5 Wiring Inputs and Outputs
27
Input/Output Wiring Guidelines
27
Wire Routing
28
Providing Low-Voltage Power for Inputs and Outputs
29
Screw-Terminal Locations
30
Wiring Universal Inputs
31
Wiring Binary Inputs
31
Wiring 0-10 VDC Analog Inputs
32
Wiring 0-20 Ma Analog Inputs
33
Wiring Variable Resistance Analog Inputs
34
Wiring Analog Outputs
35
Wiring Binary Outputs
36
Checking Inputs
37
Checking Thermistor Inputs
37
Checking Resistance Temperature Detector (RTD) Inputs
39
Checking Linear Resistance Inputs
40
Checking Linear Voltage 0-10 VDC Inputs
40
Checking Linear Current 0-20 Ma Inputs
41
Checking Binary Inputs
41
Checking Outputs
42
Checking Binary Outputs
42
Checking 0-10 VDC Analog Outputs
43
Checking 0-20 Ma Analog Outputs
44
Chapter 6 Installing the Pressure Sensor
45
Mounting the Pressure Sensor
45
Checking the Pressure Sensor
47
Chapter 7 Wiring Comm5 Links
49
Wiring and Topology Recommendations
49
Recommended Wiring Practices
50
Wiring Requirements
51
Twisted-Pair Wire
51
Recommended Wiring Configuration
51
Termination Resistance Placement for Comm5 Links
52
Comm5 Physical Link Repeater
54
When Is the Link Repeater Required
54
Link Repeater Guidelines
54
Link Repeater Connections
54
Comm5 Zone Sensor Comm Jack
56
Zone Sensor Communication Stubs
56
Verifying Communication Status
57
Comm LED
57
Wiring Comm5 to the Tracer MP581
58
EMI/RFI Considerations
60
Checking the Earth Ground
60
Sectioning the Shield on the Comm5 Link
61
Chapter 8 Installing the Circuit Board
63
Chapter 9 Installing the Door
67
Installing the Door
67
Removing the Door
68
Chapter 10 Installing the Stand-Alone Operator Display
69
Chapter 11 Connecting the Portable Operator Display
73
Using the Carrying Case
73
Connecting the Operator Display
73
Chapter 12 Setting up the Operator Display
75
Calibrating the Operator Display
75
Setting up Time and Date
76
Adjusting Brightness and Contrast
76
Chapter 13 Installing EX2 Expansion Modules
77
Operating Environment
77
Storage Environment
79
Mounting Location
79
Attaching the Terminal Strips
79
Mounting the Frame-Mount Module
80
Mounting the Metal-Enclosure Module
81
AC-Power Wiring
82
Wiring AC-Power to the Frame-Mount Module
83
Wiring AC-Power to the Metal-Enclosure Module
83
I/O Bus Wiring
84
Setting the I/O Bus Addresses
85
Input/Output Terminal Wiring
86
Universal Inputs
87
Binary Outputs
87
Analog Outputs
87
Analog Output and Universal Input Setup
87
Interpreting EX2 Leds
89
Binary Output Leds
89
Status LED
90
Communications Leds
90
Chapter 14 Verifying Operation and Communication
91
Service Pin Button
91
Interpreting Leds
92
Binary Output Leds
92
Service LED
92
Status LED
93
Comm LED
93
Leds on the EX2 Expansion Module
93
Chapter 15 Troubleshooting
95
Initial Troubleshooting
96
Binary Output Troubleshooting
97
Analog Output Troubleshooting
98
Universal Input Troubleshooting
99
Chapter 16 Other Literature
103
Index
105
