Trane UniTrane Fan-Coil - Control Valve; Balance Fitting; Union; Strainer

Mechanical
Specifications
UNT-PRC001-EN 63
Control Valve
Material
Body — Forged Brass
Stem — Chrome-Plated Brass (Modulating) Nickel Plated (2-Position)
Seat — Brass (2-Position) Stainless Steel (Modulating)
Paddle — Buna N (2-Position)
Plug — High Temperature Thermoplastic (Modulating)
Actuator — Stainless Steel Base Plate, Aluminum Cover
Temperature
200 F MAX (93 C)
Working Pressure
300 psi (2,069 kPa)
Pressure Drop (Close-Off
∆∆
∆∆
∆P)*
2-Way, Two-Position, N.O. = 25 psig (172 kPa)
2-Way, Two-Position, N.C. = 25 psig (172 kPa)
3-Way, Two-Position, N.O. = 25 psig (207 kPa)
3-Way, Two-Position, N.C. = 15 psig (103 kPa)
2-Way Modulating = 50 psig (345 kPa)
3-Way Modulating = 50 psig (345 kPa)
*All valves are available with optional 50 psig (345 kPa).
Balance Fitting
Material
Packing Washer — 11 Ga. Brass
O-Ring — EPDM Rubber
Stem — Rod Brass
Gland Screw — Hex Brass
Valve Body — Cast Brass
Union
Material
Nut — Forged Brass
Body — Copper
Tail — Copper
Strainer
Material
Body — Cast Bronze (85-5-5-5)
Cover — Cast Bronze (85-5-5-5)
Screen — Stainless Steel (20 Mesh)
Gasket — Teflon
Pressure and Temperature
400 psi (2,758 kPa) at 150 F (66 C)

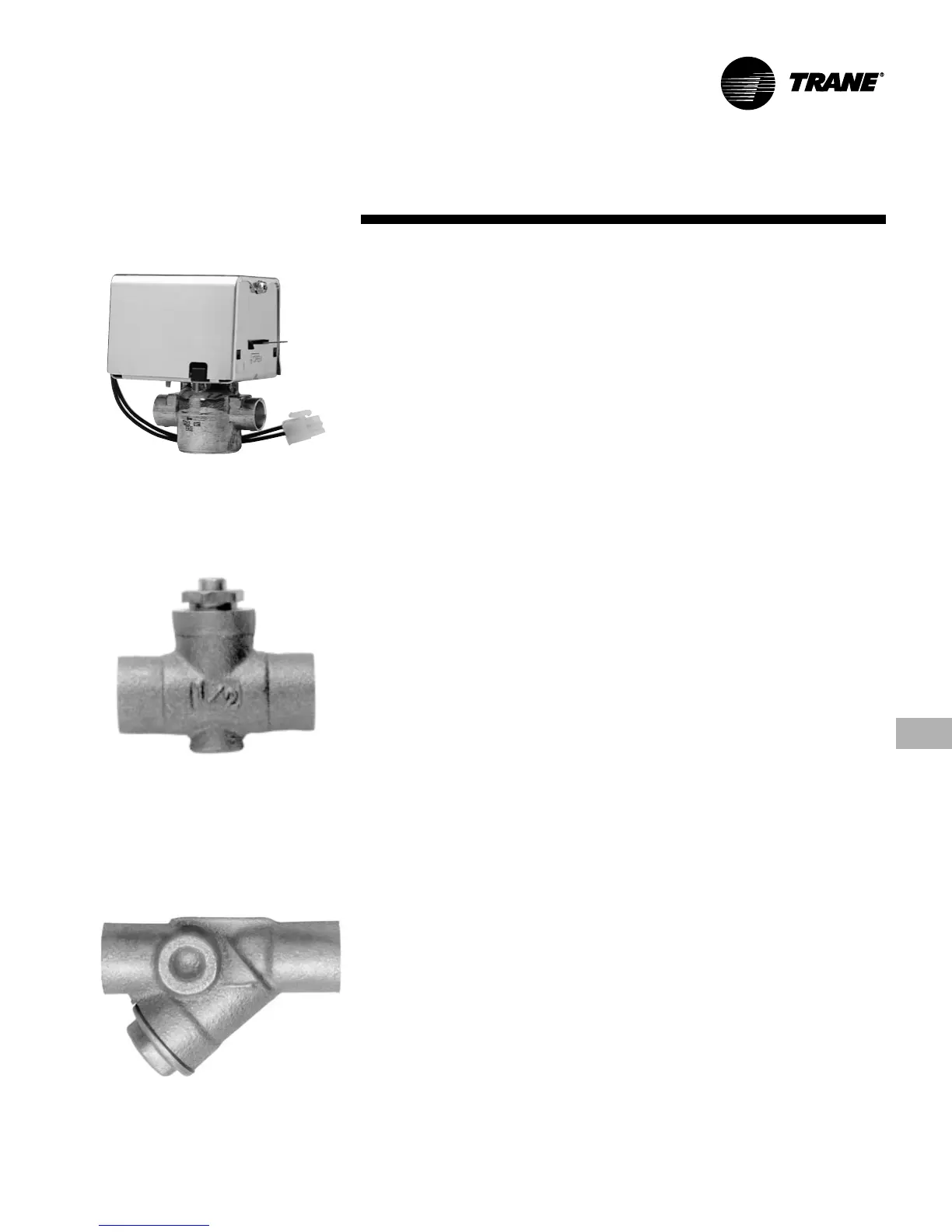

Control Valve
Balance Fitting
Strainer
Options
