Dimensions
and Weights
UNT-PRC001-EN 53
Fresh Air
Opening
Fresh Air Opening Dimensions, Horizontal Units
Unit
Size 02-03 04 06 08 10-12
A1’-6” 1’-11” 2’-8
1
/2” 3’-5” 5’-0”
B1’-9
5
/16” 2’-2
5
/16” 2’-11
13
/16” 3’-8
5
/16” 5’-3
5
/16”

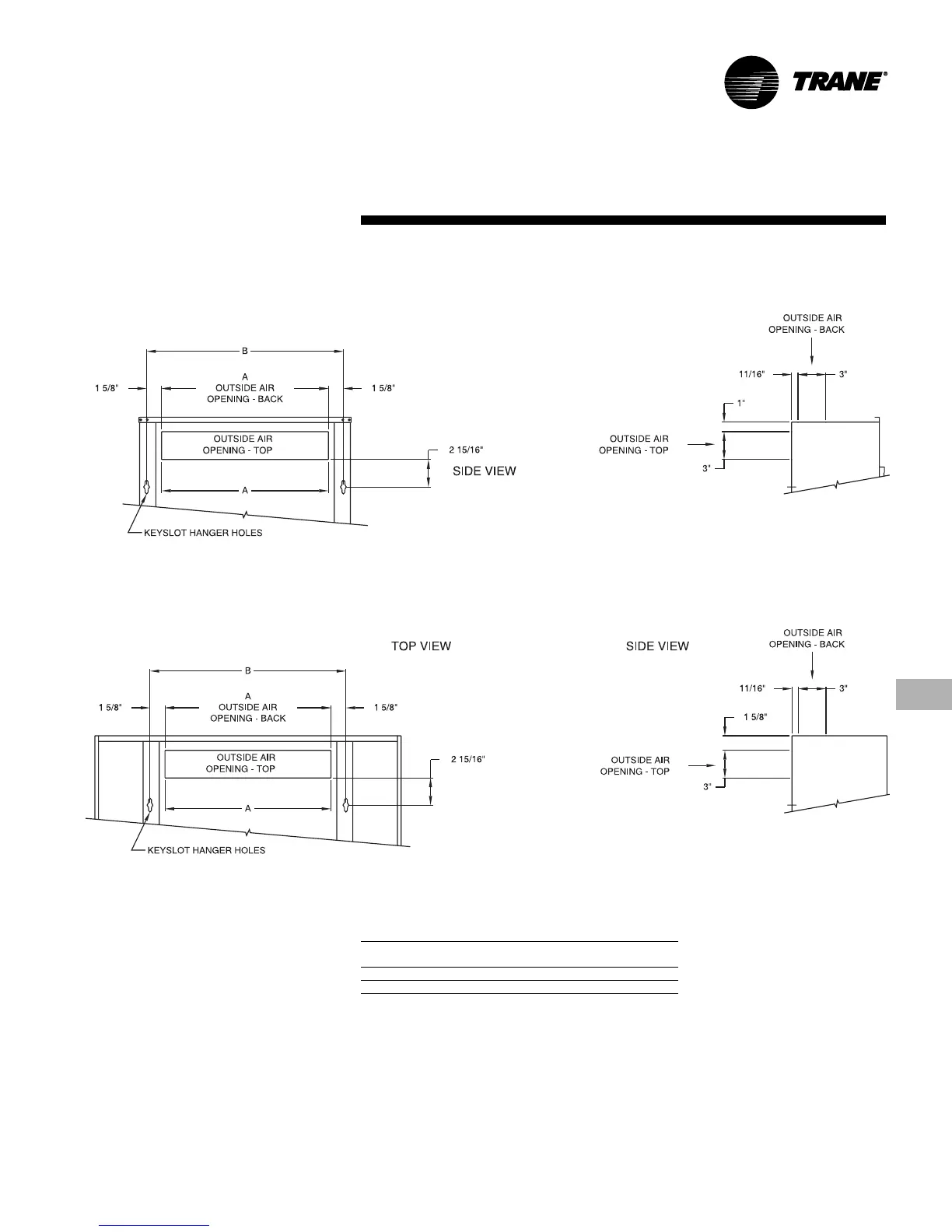

Fresh Air Opening Locations
Horizontal Units Models C, D, and E
HORIZONTAL
CONCEALED AND RECESSED
HORIZONTAL
CABINET
