Dimensions
and Weights
UNT-PRC001-EN52
Coil
Connections

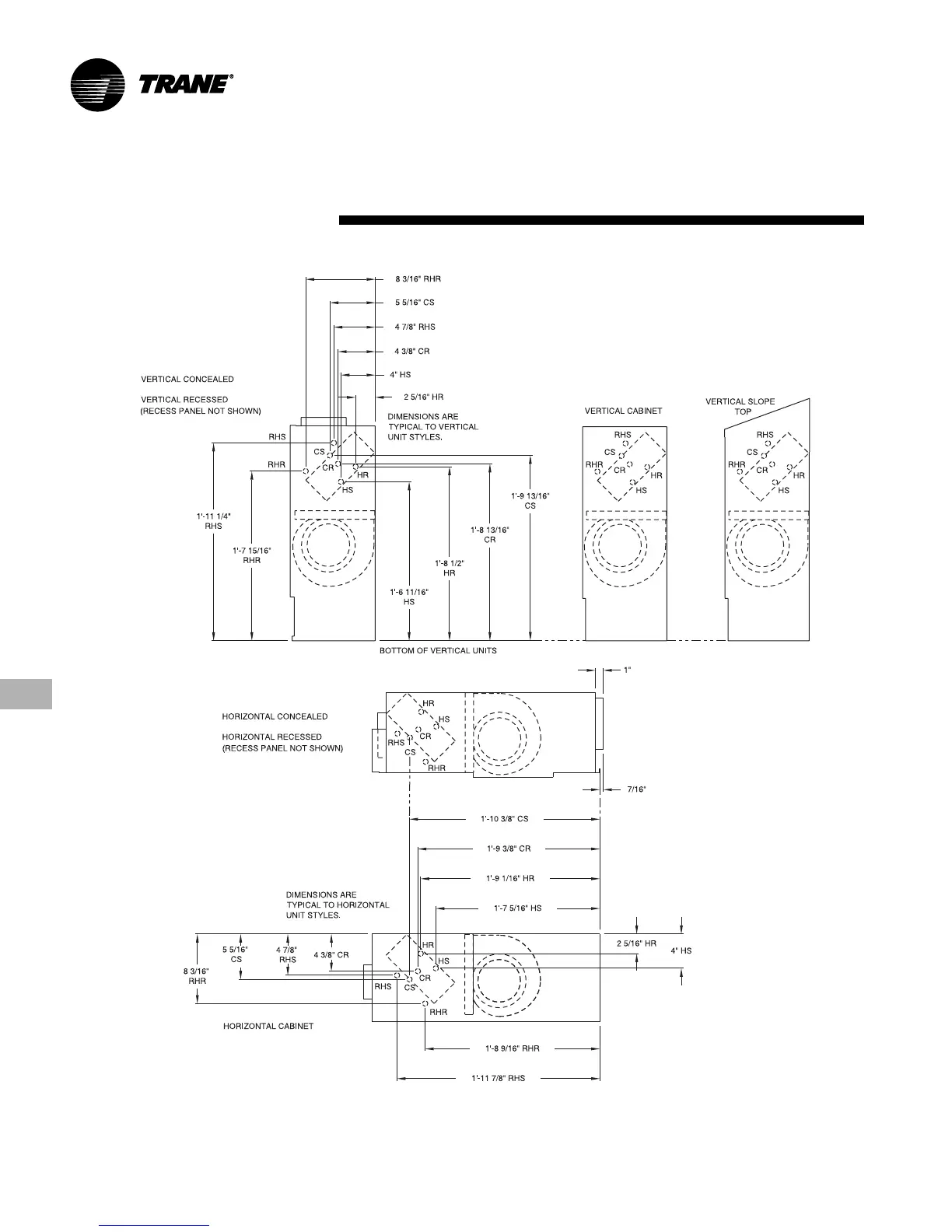

Coil Connections,
Vertical Units
Coil Connections,
Horizontal Units
RHR - Reheat Return HR - Hot Water Return CR - Chilled Return
RMS - Reheat Supply HS - Hot Water Supply CS - Chilled Water Supply
Note: Reheat coils are available with 2-pipe main coils only on units with either a fan speed switch or Tracer ZN.520 control.
