Trane Wired Temperature Sensors User Manual

BAS-SVX10C-EN 25
Operation
Service Pin Request
Some sensor models can communicate a service pin request to their connected unit controller.
Sensors with Occupied/Unoccupied Buttons
To initiate a service pin request, press the Occupied button (Figure 2, p. 24) for 10–25 seconds. The
following occurs:
• Space temperature output is driven to 10 Ω (nominal).
• The output generates for 15 seconds.
Display Sensor
To initiate a service pin request, the sensor must be configured to support occupancy and must be
in operating mode (see “Configuring the Display Sensor,” p. 11).
To initiate a service pin request:
1. With the sensor in operating mode, navigate to the occupancy menu.
2. Press the right arrow on the keypad (Figure 3). The occupied symbol remains on the screen; the
unoccupied symbol leaves the screen.
3. Press and hold the center button for 10 seconds. The following occurs:
• The wrench symbol appears.
• A service pin request is initiated.
• Space temperature output is driven to 10 Ω (nominal).
• The output generates for 15 seconds.
• After 15 seconds, the wrench symbol disappears.

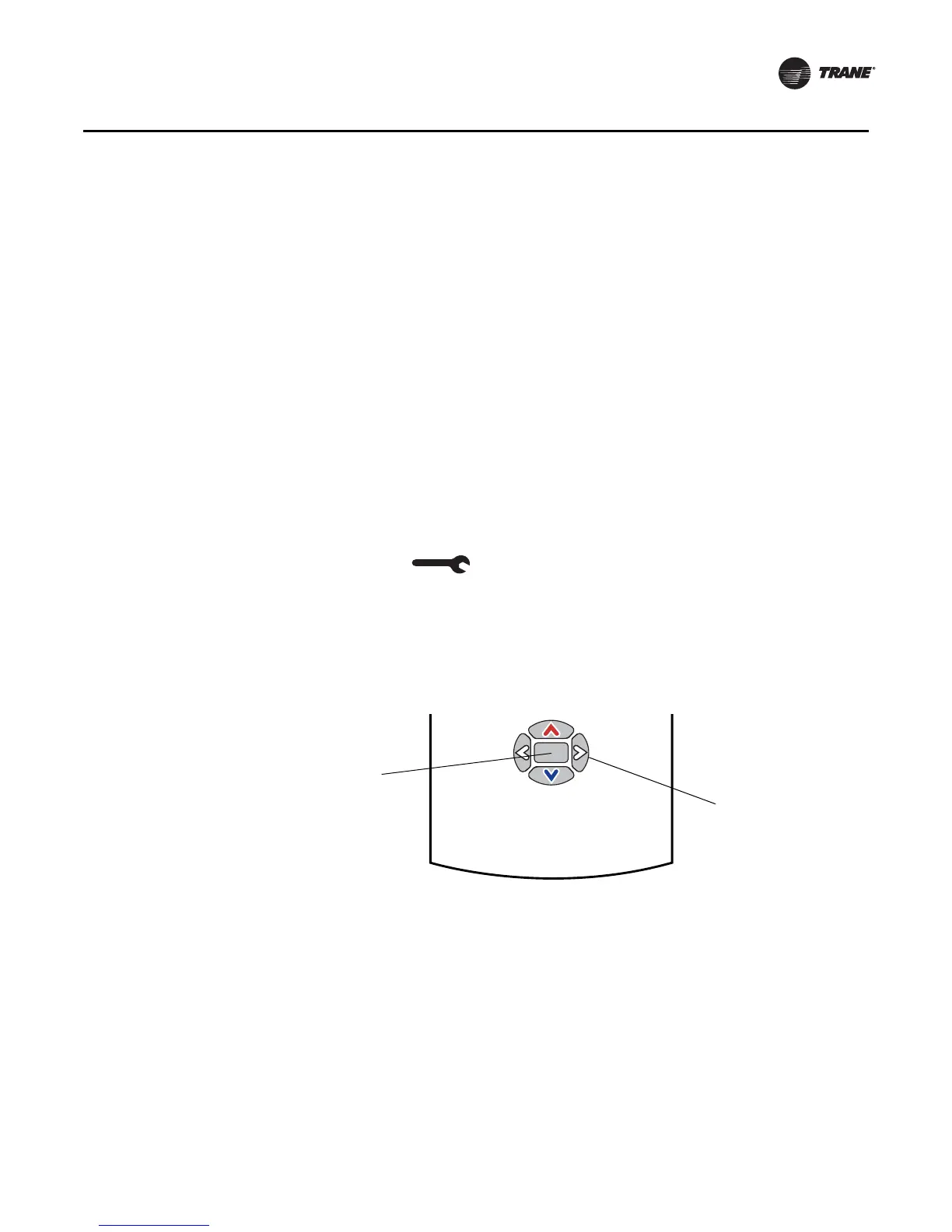

Figure 3. Location of keys for service pin request
Center button
Right arrow key
