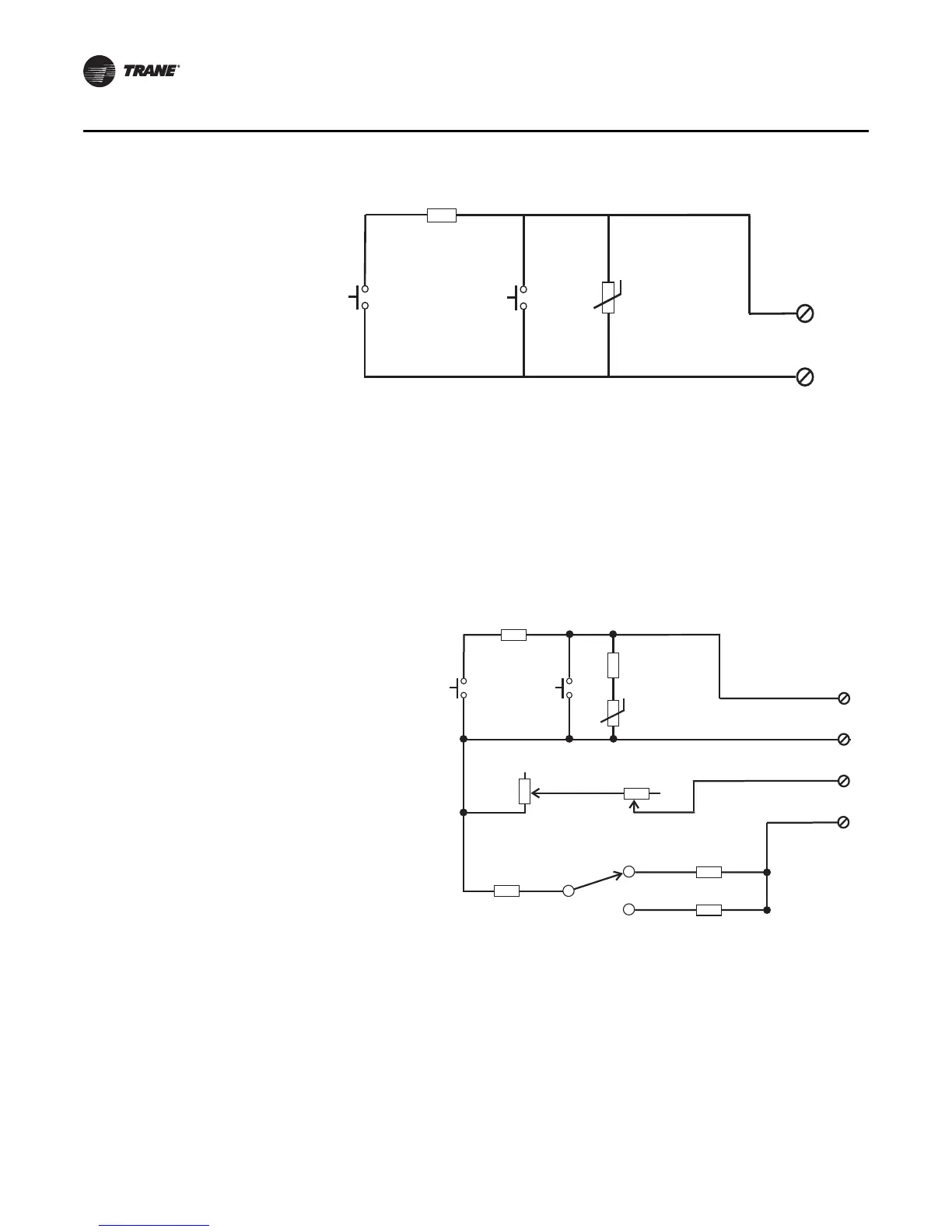

Wiring Diagrams
Timed
override
Cancel SW2
R1, 1.5 kΩ
Timed override
On SW1
Zone
temperature
Signal common
1
2
RT1 thermistor,
10 k at 25°CΩ
Dwg source: 3270 3438
Timed
override
Cancel SW4
R9, 1.5 kW
Timed
override
On SW3
Thermistor,
10 k at 25°CW
1
2
4
Calibration
Pot 1 (see )Note 1
RT1
Note 1:
Pot 1 is
factory
calibrated.
Field
adjustment
voids
warranty.
3
R1, 4.87 kW
R2, 2.32 kW
Auto
Off
R11, zero W
Signal common
Cool setpoint (CSP)
Zone
temperature
Mode
(Fan switch)
TB1
R10, zero W
Temperature
setpoint
Pot 5,
1 kW
Fan
SW1
Dwg source: X39641092-01
X1379084501
Temperature sensors with fan control
X1351153001
