Operation
Display Sensor Operation
This section describes display sensor operation. Figure 5 shows an example of a display sensor
that has been configured and is in operating mode.
Changing Temperature Settings
Changing Heating and Cooling Temperature Settings (dual setpoint systems only)

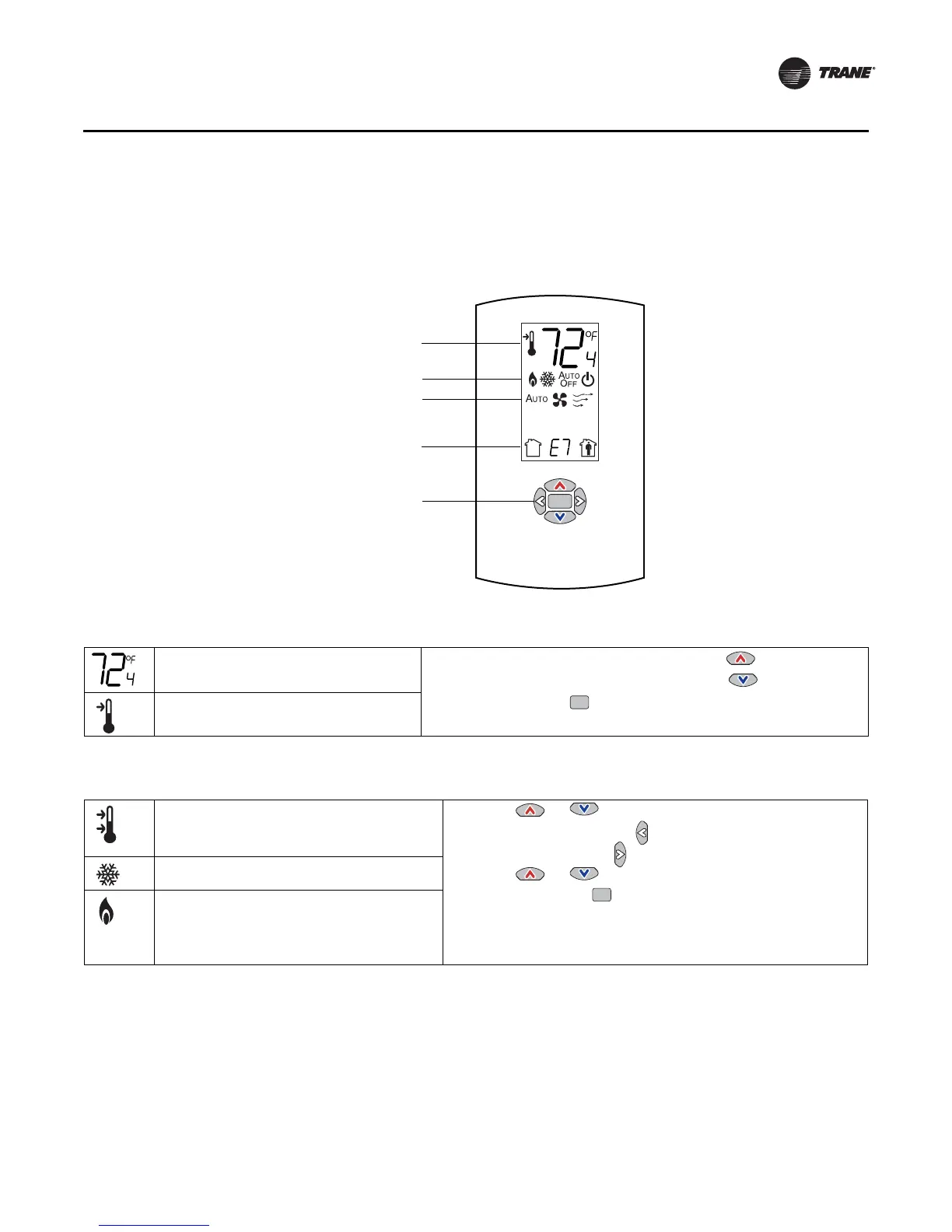

Figure 5. Display sensor in operating mode
This symbol shows the current room
temperature, or your temperature setting,
while you are making an adjustment.
1. To increase the room temperature, press .
To decrease the room temperature, press .
2. To confirm, press or wait 5 seconds. The display will return
to the home screen.
When you select a setpoint, this symbol
appears.
Some systems allow you to select both heating and
cooling room temperature settings. If your system
has this option, this symbol appears when you
adjust the temperature setting.
1. Press or to select the heating/cooling setting.
2. If in cooling mode, press to change to heating mode. If in
heating mode, press to change to cooling mode.
3. Press or to select the heating/cooling setting.
4. To confirm, press or wait 5 seconds. The home screen
will appear.
Note: The heat/cool setpoint offset (deadband) chosen during
configuration will apply.
When you adjust the cooling setting, the top arrow
and snowflake flash.
When you adjust the heating setting, the bottom
arrow and flame flash.
.
Keypad
Occupancy indicator/Error code
Temperature
System settings
Fan settings
.
