Unit Dimensions
20 RT-SVX21P-EN

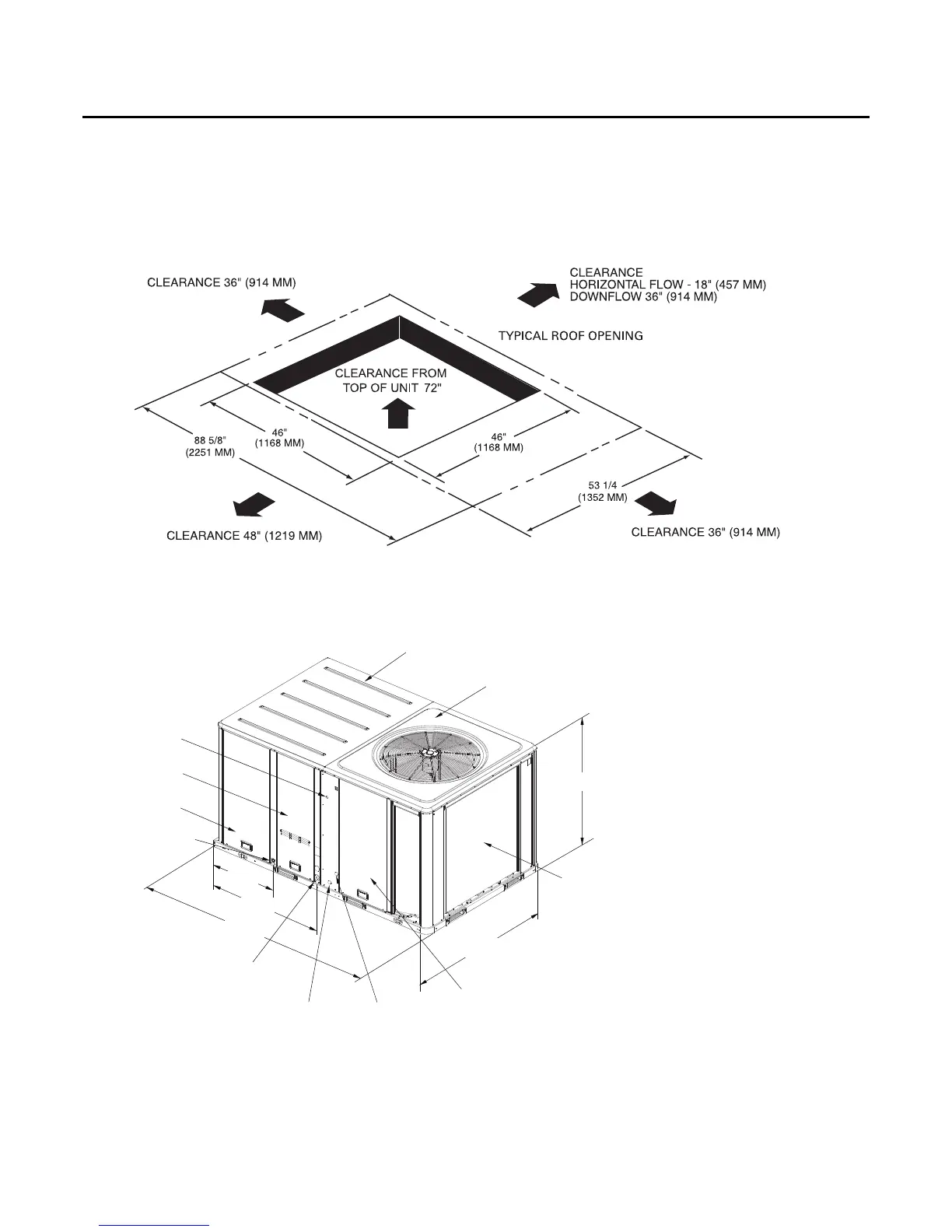

Figure 10. 7½ ton (dual) - 10 tons standard efficiency,6-7½(MCHE) ton high efficiency, 6 ton dehumidification
unit clearance and roof opening
Note: All dimensions are in inches/millimeters.
Figure 11. 10 ton high efficiency
Notes:
1. All dimensions are in inches/millimeters.
2. ½ or ¾ NPT Gas Connection
ALTERNATE CONDENSATE DRAIN
CONNECTION 3/4-14 NPT DIA.HOLE
50 7/8”
1292 MM
63 3/16”
1605 MM
99 11/16”
2532 MM
CONDENSER COIL
UNIT POWER WIRE
1 3/8”
(
35MM
)
DIA. HOLE
EVAPORATOR SECTION
ACCESS PANEL
47 7/8”
1216 MM
27 5/8”
701 MM
1/2 NPT GAS CONNECTION
˄80 mbh, 120mbh˅;
3/4 NPT GAS CONNECTION
(
150mbh
,
200mbh
,
250mbh
)
COMPRESSOR ACCESS PANEL
SERVICE GAUGE PORT
ACCESS 1 3/8” (35MM) DIA.
HOLE
CONTROL BOX SECTION
ACCESS PANEL
UNIT CONTROL WIRE
7/8”
(
22MM
)
DIA HOLE
INDOOR TOP PANEL
OUTDOOR TOP PANEL
2” ELECTRICAL CONNECTION
(SINGLE POINT POWER WHEN
HEAT INSTALLED)
or
