Installation
RT-SVX21P-EN 29
Horizontal Discharge Conversion
(3 to 5 Ton Units)
Note: 3 to 5 ton units supply cover to supply opening and
return cover to return opening.
Supplies needed by installer for conversion: 3 oz. tube of
high temperature RTV sealant. (500°F / 260°C: similar to
Dow Corning 736)
Important: Failure to use recommended sealant could
result in unit performance loss.
If a unit is to be converted to a horizontal discharge, the
following conversion must be performed:
1. Remove RETURN and SUPPLY duct covers.
2. Locate supply cover. Apply ¼ in. (6mm.) continuous
bead of 500°F RTV sealant to the flange as shown.
3. Position duct cover as shown, rotate 90 degrees to
allow entrance into supply opening.
4. Slide duct covers into duct openings until inward edge
of duct cover engages with the 2 retaining clips on the
duct flanges. Secure the outward edge of each duct
cover with 2 screws.
5. Slide RETURN DUCT COVER (insulation side up) into
supply opening until inward edge of duct cover
engages with the 2 retaining clips on the duct flange.
Secure outward edge of the duct cover with two
screws.
6. After completing installation of the duct covers for
horizontal discharge, proceed toTCO-1 instructions.
TCO-1 Instructions
If the unit being installed is listed in the following list, the
limit controlTCO1 must be replaced with the extra limit
control shipped in the heater compartment. ReplaceTCO1
following the instructions in steps 1 through 3 below. If the
unit being installed does not correspond to any in the
following list, skip steps 1 through 3 and go on to next step
in the installation process.
Unit Model Number
YSC036E**(M,Y),YSC036E**(H,Z),YSC048E**(H,Z),
YSC048E**(M,Y) belt drive ID motor,YSC060E**(H,Z)
direct drive ID motor,YHC047E**(L,X),YHC048E/F**(L,X)
direct drive ID motor,YHC060E/F**(L,X) belt drive ID
motor,YHC036E**(M,Y),YHC037E**(M,Y),YHC048E/
F**(M,Y),YHC060E/F**(M,Y) direct drive ID motor,
YHC036E**(H,Z),YHC048E/F**(H,Z) belt drive ID motor,
YHC060E/F**(H,Z).
YSC072F**(L,X) 170F YHC060E/F**(H,Z)-BD 220F / 230F
YSC072F**(H,Z) 145F / 155F YHC072E/F**(L,X) 200F
YSC090F**(L,X) 180F / 200F YHC072E/F**(M,Y) 190F
YSC090F**(M,Y) 155F YHC072E/F**(H,Z) 210F
YSC090F**(H,Z) 155F YHC092F**(L,X) 190F
YSC092F**(L,X) 225F YHC092F**(M,Y) 180F / 200F
YSC092F**(M,Y) 230F YHC092F**(H,Z) 200F
YSC092F**(H,Z) 220F /260F YHC102F**(L,X) 190F
YSC102F**(L,X) 225F YHC102F**(M,Y) 180/200F
YSC102F**(M,Y) 230F YHC102F**(H,Z) 200F
YSC102F**(H,Z) 200F / 260F YHC120E**(L,X) 135F
YSC120F**(L,X) 180F / 200F YHC120E**(M,Y) 170F
YSC120F**(M,Y) 200F YHC120E**(H,Z) 145F / 190F
YSC120F**(H,Z) 190F / 260F
Table 3. TC01 tripping values (continued)
Unit Model (Std.
Eff.)
TCO1 Tripping
Values - Downflow/
Horizontal
Unit Model - (High
Eff. - 15 SEER)
TCO1 Tripping
Values -Downflow/
Horizontal
Unit Model
(High Eff. - 17 Plus)
TCO1 Tripping
Values -Downflow/
Horizontal

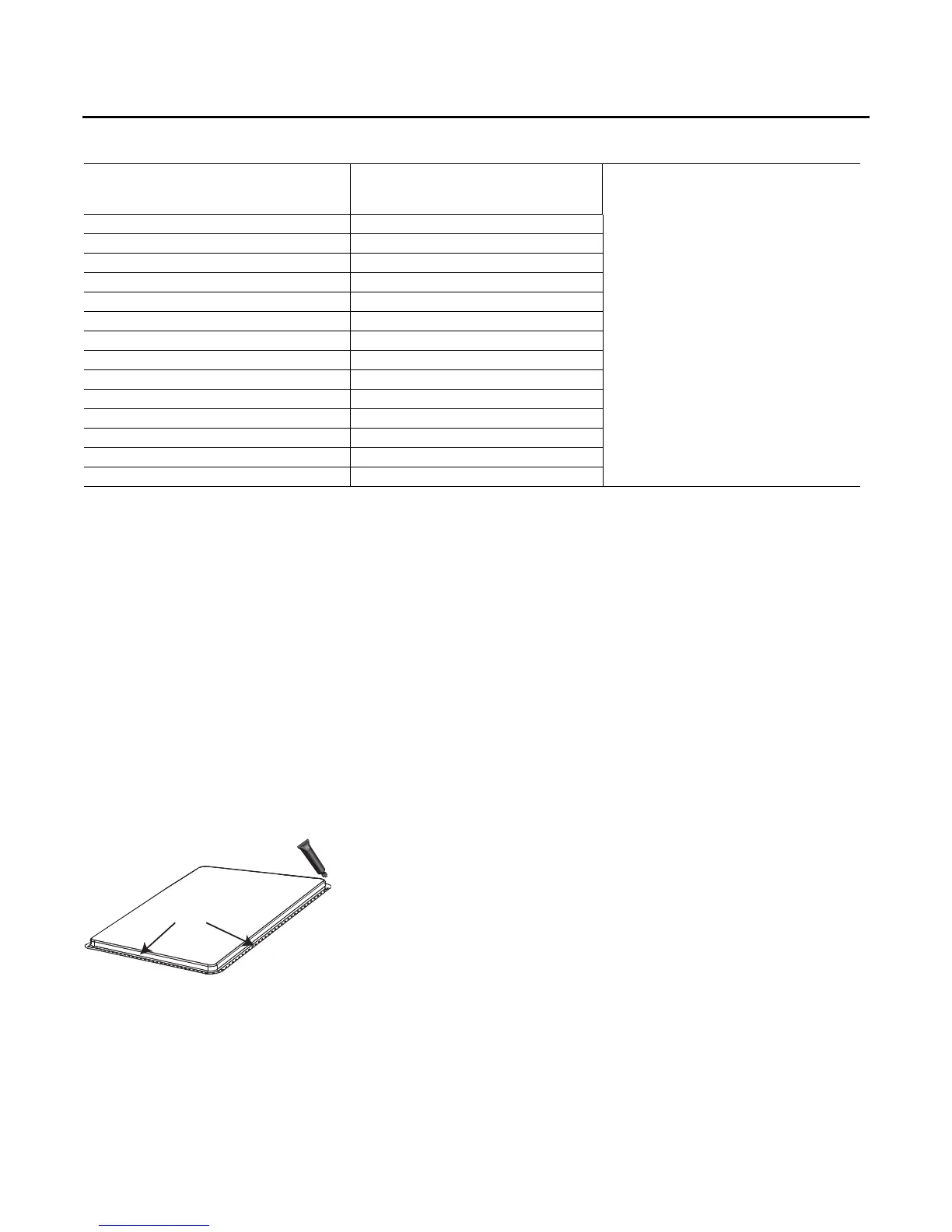

Figure 26. Duct cover
RTV Sealant
