Travis Industries 616 GSR2 Insert - Diffuser Adjustment; Diffuser Setting Guide

18 Installation (for qualified installers only)
© Travis Industries 4140808 100-01298

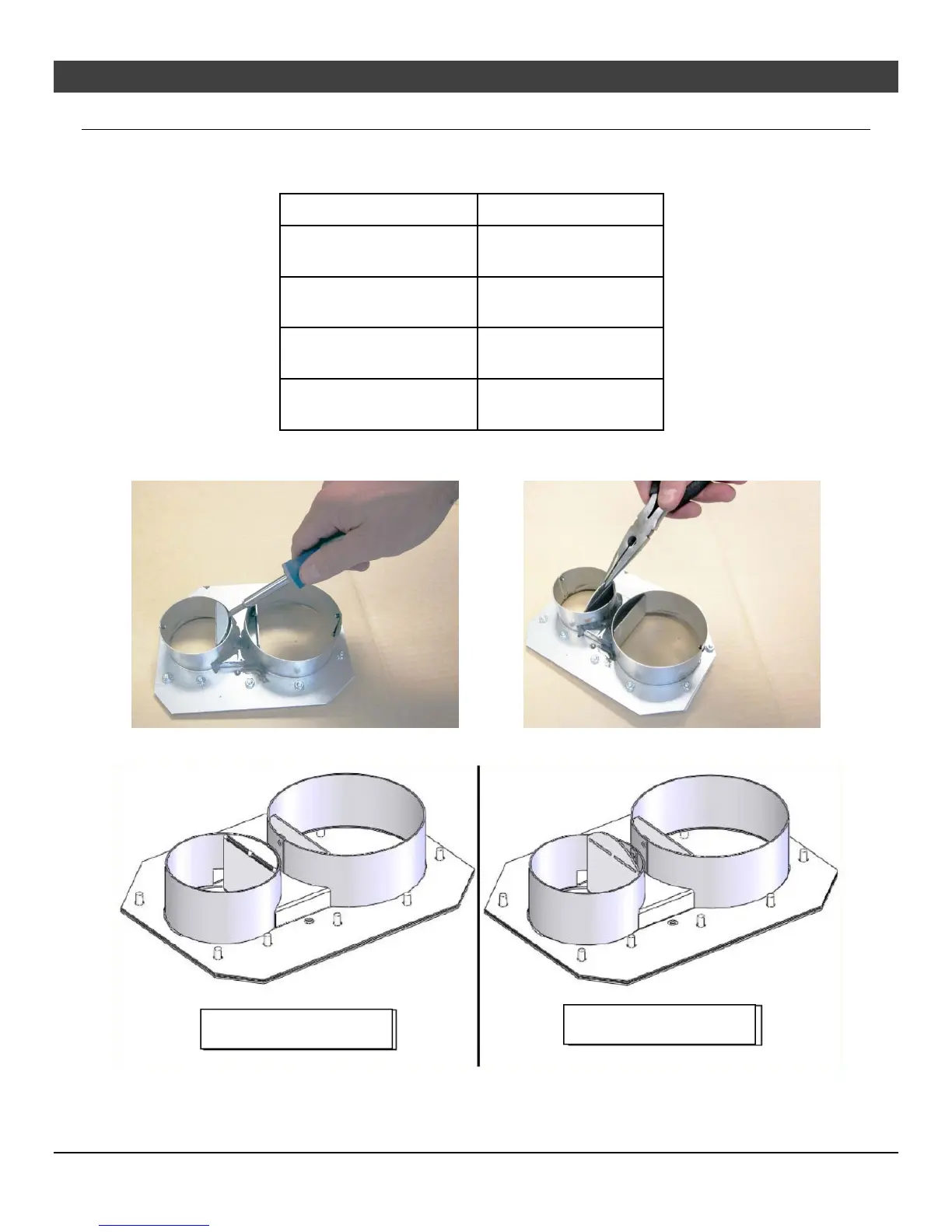

Diffuser Adjustment
Adjusting the Diffuser
Adjust the diffuser to the setting described in the table below.

Diffuser 
Natural Gas Short Vent
(25’ or less)

Closed (stock) 
Natural Gas Tall Vent
(25’ or more)

Open 
Propane Short Vent
(25’ or less)

Closed (stock) 
Propane Tall Vent
(25’ or more)

Open 
The diffuser must be adjusted before attaching the vent (it is attached to the vent connector and is
concealed once the vent is installed). Use a screwdriver or pliers to bend the diffuser to a vertical position.
Diffuser Closed (stock)
Diffuser Open
