Trek 2022 SESSION - Frame guards; Brake cable scuff guard

2022 Session Service Manual
12

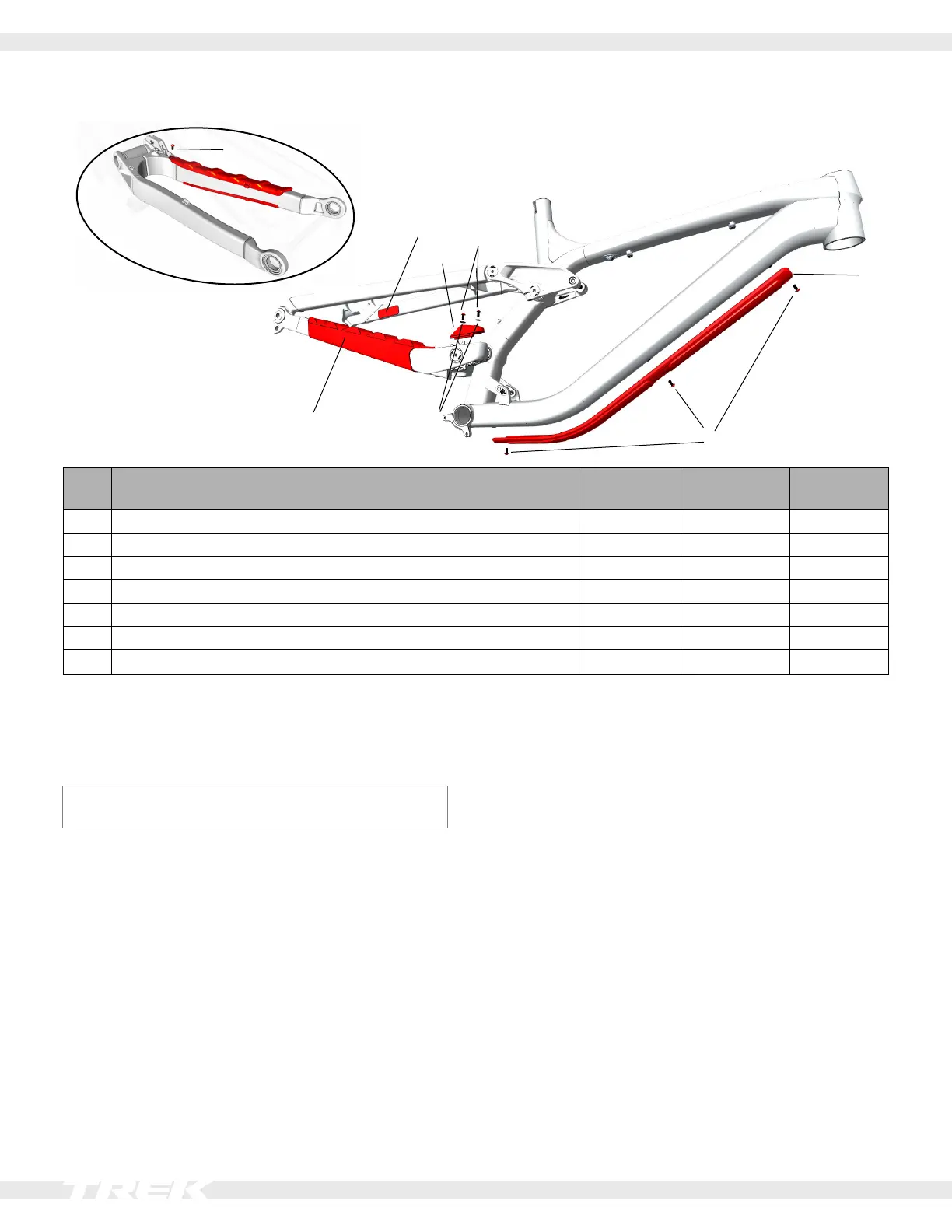

Frame guards
1
2
3
4
5
2
6


2
Item Description Quantity in
Assembly
Part Number Torque (Nm)
1 Down tube guard 1 W1052375 —
2 Screw 6 W1052364 0.8
3 Chainstay guard 1 W1052384 —
4 Brake cable adhesive scuff guard 1 W326986 —
5 Idler pulley guard 1 W1052385 —
6 Washer 2 W5265886 —

Zip tie
1 —
—
Brake cable scuff guard
Use isopropyl alcohol to clean the frame surface where
theguard(4)attaches.Waitforthealcoholtodrybefore
applying the guard.
Notice: Do not clean the entire frame with isopropyl
alcohol. Isopropyl alcohol could damage the paint.
