Trek 2022 SESSION - Dérailleur hanger

2022 Session Service Manual
8

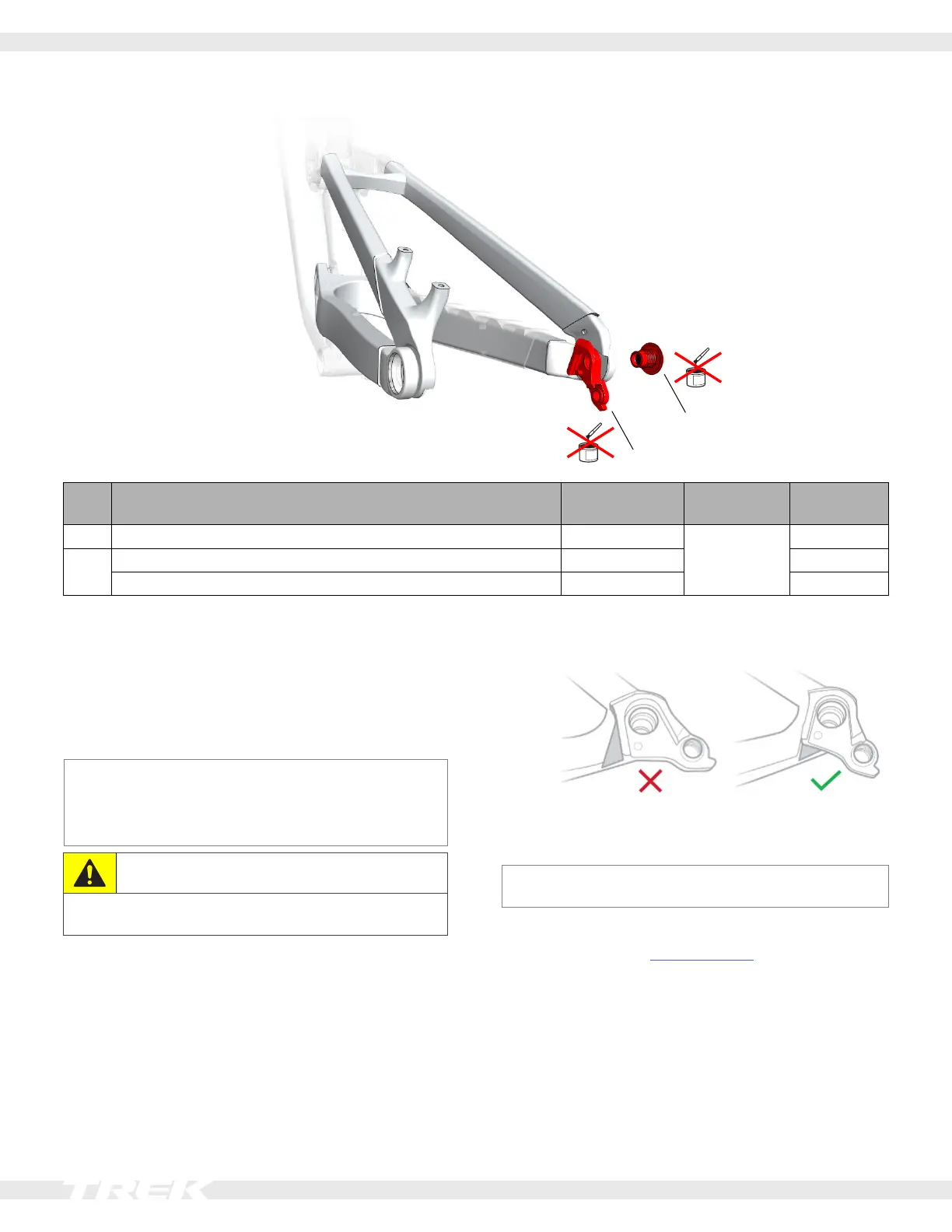

Dérailleur hanger
1
2
Item Description Quantity in
Assembly
Part Number Torque (Nm)
1 Dérailleur hanger
1
W583423 —
2 Hanger bolt, left-handed thread 1 25
Washer, 25mm 1
Tools
• 8mm hex tool
• Torquewrench(left-handthread)with8mmhexbit
This bicycle frame is designed to use a Universal Derailleur
Hanger(UDH).
NOTICE: The thru axle must be compatible with a UDH
and must be M12x1.0 with a 12.7mm thread.
NOTICE: Thewasherisframe-specic.Installonlythe
washer compatible with your frame.
WARNING
Do not apply grease to the derailleur hanger or bolt.
Apply grease to only the thru axle.
1. Insert the hanger on the inside of the driveside
chainstay.
2. Install the washer on the derailleur hanger bolt.
3. Insert the bolt into the frame.
4. Make sure the hanger is positioned as shown below.
5. Torquethehangerboltto25Nm.
NOTICE: Do not over-tighten. Over-tightening the bolt
could cause the hanger to break.
For additional information about the UDH, refer to the
SRAM user manual at www.sram.com.
