2022 Session Service Manual
3

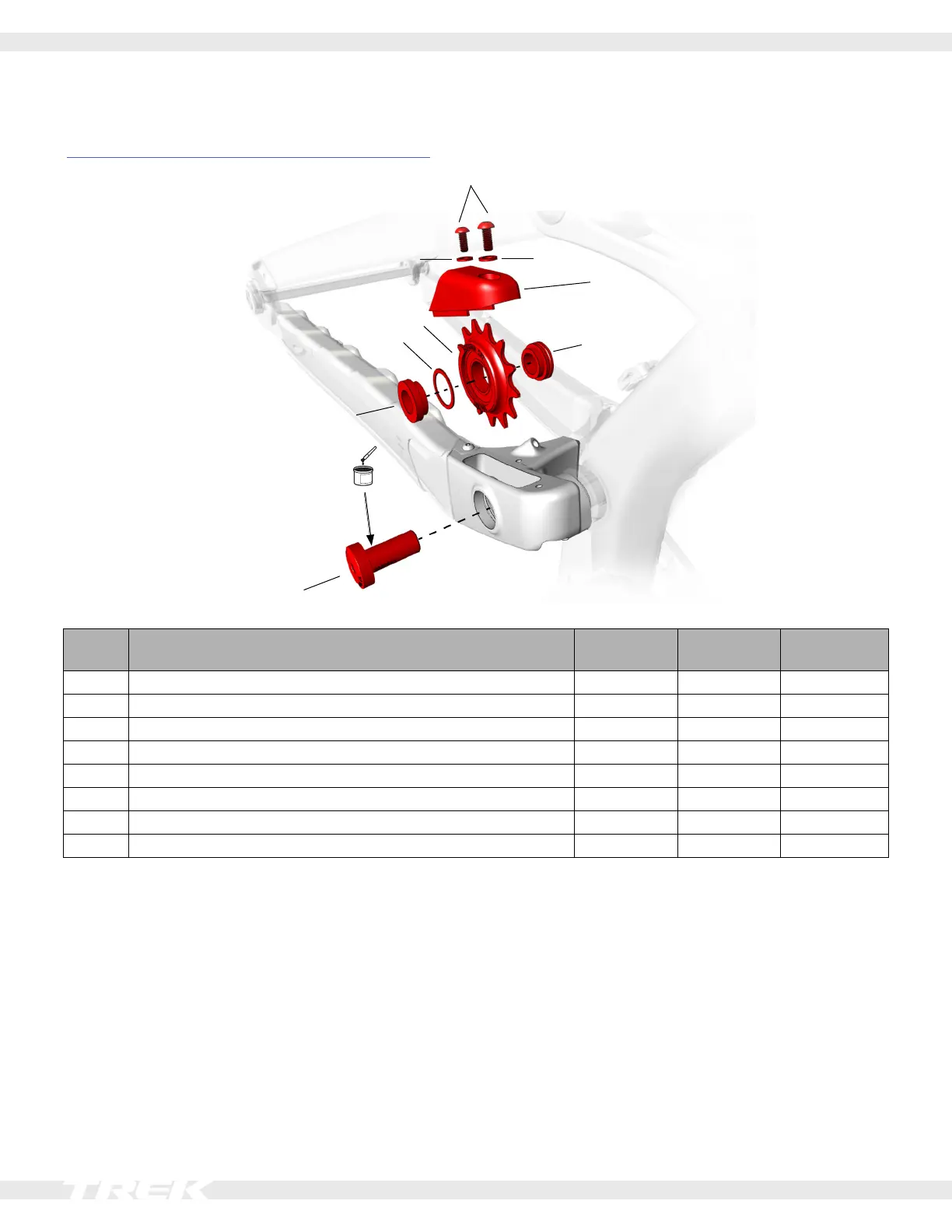

Idler pulley
The idler pulley and spacers can be repositioned to align the idler pulley with the chainring. For instructions, refer to the
Adjust the position of the idler pulley section on page 4.
3
2
1
4
5
6
7
8
2
Item Description Quantity in
Assembly
Part Number Torque (Nm)
1 Idler pulley 1 W1042533 —
2 Washer 2 W5251170 —
3 Idler guard bolts 2 W1052364 1
4 Idler guard 2 W1052385 —
5 Spacer,black,grooved,4.5mm 1 W5251169 —
6 Spacer, 0.5mm 1 W5265886 —
7 Spacer, grey, 3.5mm 1 W5251168 —
8 Idler bolt 1 W1051961 17
