Trek 2022 SESSION - Main pivot

2022 Session Service Manual
7

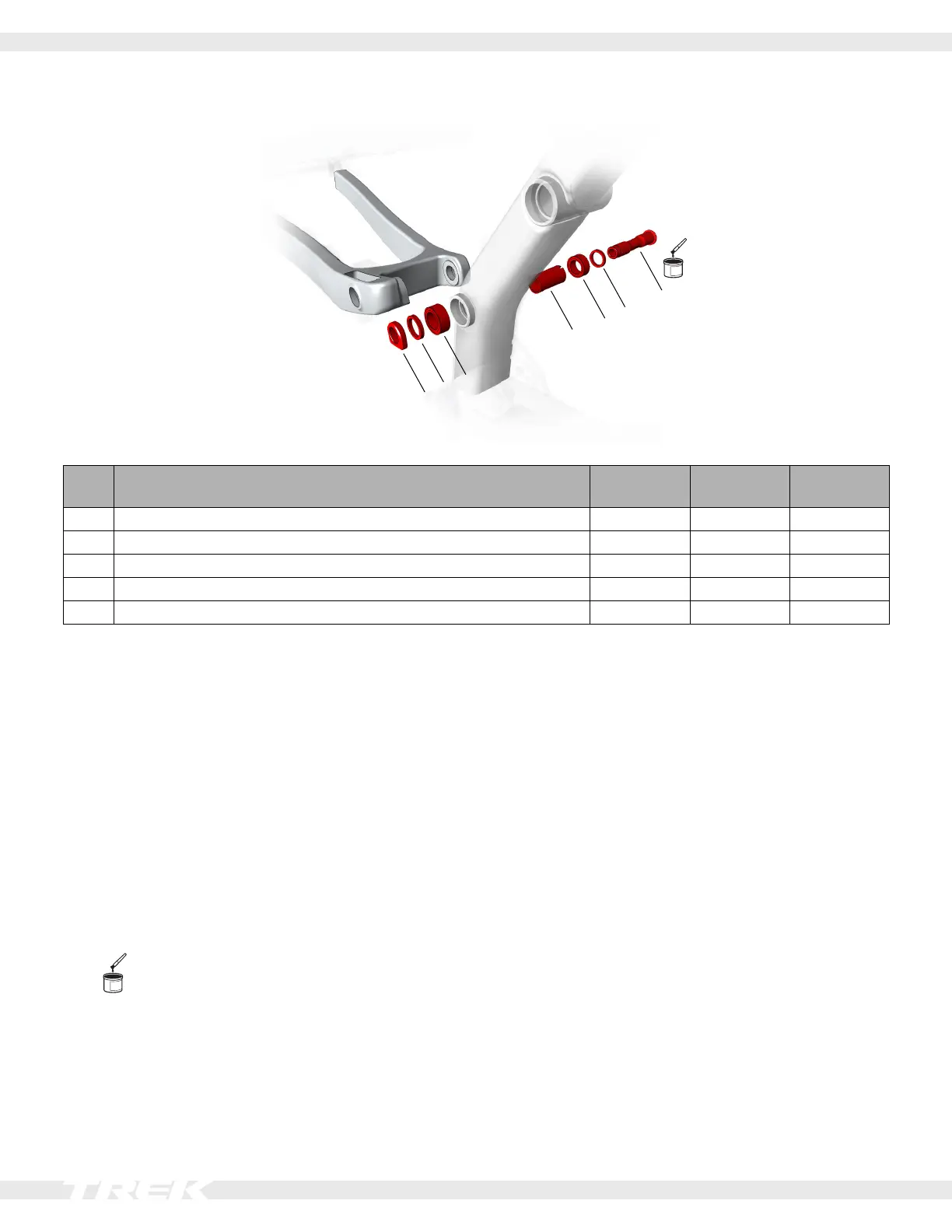

Main pivot
1
2
3
4
3
2
5
Item Description Quantity in
Assembly
Part Number Torque (Nm)
1 Axle 1 5256639 30
2 Spacer 2 W440921 —
3 Bearing 2 W302025" —
4 Sleeve 1 5256639 —
5 Nut 1 W584134 —
Tools
• Bearing press
• 8mm hex tool
• Torque wrench with 8mm hex bit
• Grease
1. Pressinthedrivesidebearing(3).
2. Insertthesleeve(4)fromthenon-driveside.
3. Pressinthenon-drivesidebearing(3).
Tip: The sleeve and bearing must be properly aligned to
allow the axle to pass through. To aid in alignment, use the
bearing press to hold the sleeve in position while pressing
in the bearing.
4. Installonespacer(2)overthenon-drivesidebearing(3).
5. Applygreasetotheshoulderoftheaxle(1).
6. Inserttheaxle(1)fromthenon-driveside.
7. Installtheotherspacer(2)overthedrivesidebearing.
8. Installthenut(5).
9. Torquetheaxleto30Nm.
