-11-

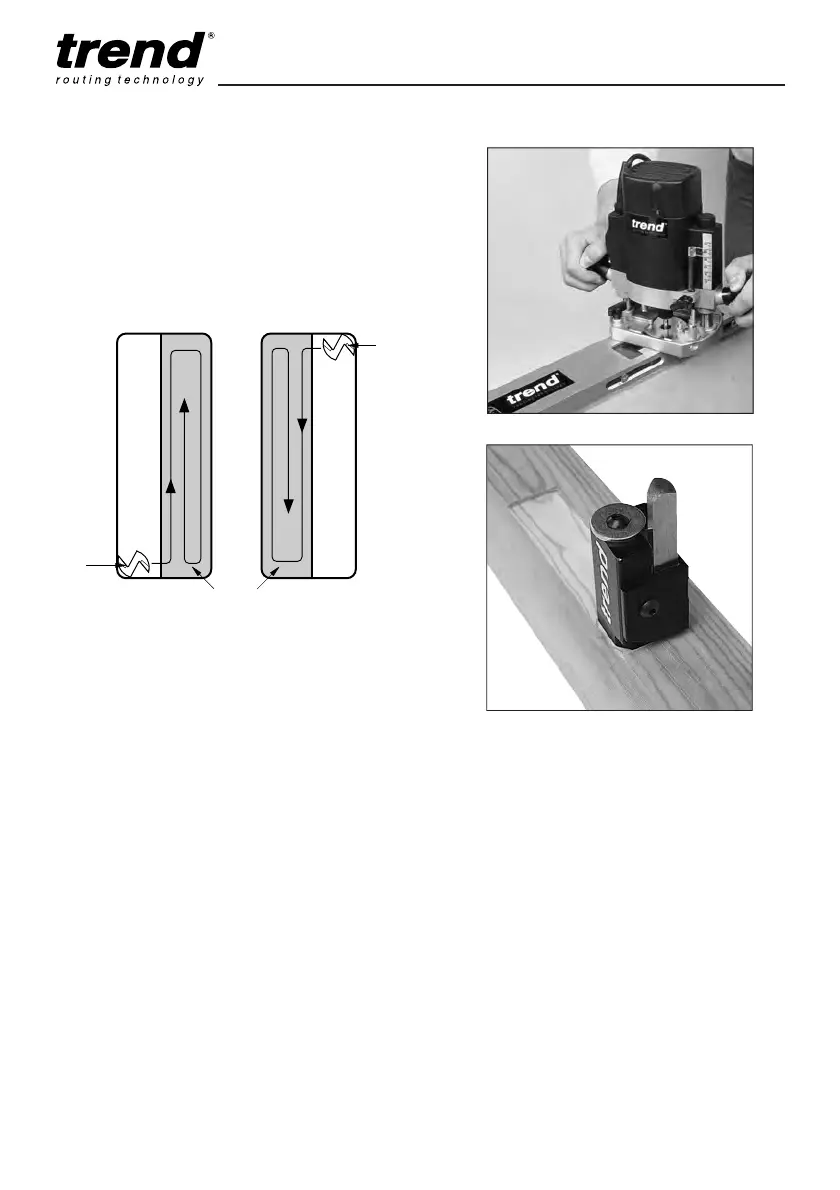

I Position the guide bush in the corner of the

aperture and plunge cutter until correct depth

is reached. Lock the carriage of the router in

this position. Rout around the aperture in a

clockwise direction, then remove the waste

from the centre of the aperture. See

drawings below for direction of cut to prevent

breakout.

I Release the carriage of the router and

repeat the procedure for the remaining

apertures.

I Switch off router and remove jig from door by

pulling out bradawls with a twisting action.

I Square off rounded corners of hinge recess

with a corner chisel Ref. C/CHISEL and

hammer.

Cutter

Door

Left hand door

Right hand door

-11-

HINGE JIG & H/JIG/A

MANU-HJ v7.0 3/5/11 11:37 Page 11
