HINGE JIG & H/JIG/A
PLEASE NOTE: For doors over 6’ 8” the bottom hinge
position can no longer be 9” up from the bottom.
Dear Customer
Thank you for purchasing this Trend product, we
hope you enjoy many years of creative and
productive use.
Please remember to return your guarantee card
within 28 days of purchase.
CONTENTS
TECHNICAL DATA______________________1
SAFETY ____________________________2-3
ITEMS ENCLOSED _____________________4
ASSEMBLY & DESCRIPTION OF PARTS ___5
- Setting up the Router ___________________6
- Fitting the Router Cutter_________________7
OPERATION
- Setting the Jig for Hinge Recessing ______8-9
- Routing the Recess in the Door _______10-11
- Routing Hinge Recesses in the Frame __12-13
- Fitting the Door_______________________14
ACCESSORIES _______________________14
MAINTENANCE _______________________14
ENVIRONMENTAL PROTECTION ________14
GUARANTEE _________________________14
SPARE PARTS
– Spare Parts List______________________15
– Spare Parts Diagram__________________16
QUICK START INSTRUCTIONS __________IB
The following symbols are used throughout this
manual:
Denotes risk of personal injury, loss of
life or damage to the tool in case of non-
observance of the instructions in this
manual.
Refer to the instruction manual of
your power tool.
This unit must not be put into service until it has
been established that the power tool to be
connected to this unit is in compliance with
2006/42/EC (identified by the CE marking on the
power tool).
TECHNICAL DATA
Guide bush diameter 16mm
Hinge length min. 67mm (2
5
⁄8”)
max. 127mm (5”)
Hinge width min. 9.5mm (3/8”)
max. 35mm (1
3
⁄8”)
Door height min. 1956mm (6’5”)
max. 2100mm (7’)*
Door thickness min. 16mm (5/8”)
max. 51mm (2”)
Fixed stop thickness max. 25mm
Weight 7.3kg
* For doors over 6’ 8” the bottom hinge position can no
longer be 9” up from bottom.
INTENDED USE
This jig allows hinge recesses to be routed in a
door or frame with stops up to 25mm thick.
It should be used with a portable plunge router
fitted with a suitable guide bush and router cutter
fitted.

If you require further safety advice,
technical information or spare parts,
please call Trend Technical Support
or visit www.trend-uk.com

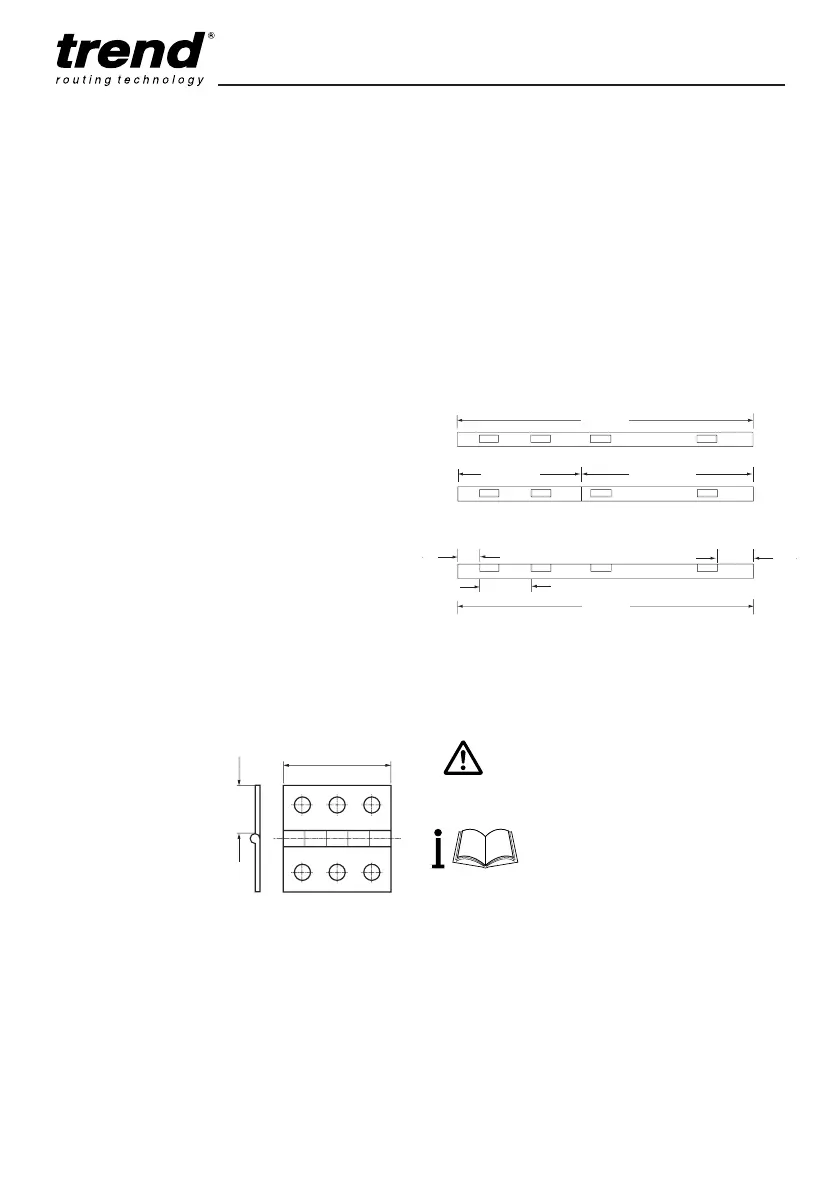

152mm
(6”)
355mm
228mm
(9”)
TOP
TOP
BOTTOM
BOTTOM
1981mm
1955mm
767mm 30
1
/
4
”
767mm 30
1
/
4
”
(14”)
1188mm 46
3
/
4
”
HINGE/JIG
H/JIG /A
Hinge Positions
Door
The hinge jig will
cut apertures to
suit the hinge
shown.
9.5mm to
35mm
67mm to 127mm
