-14-
HINGE JIG & H/JIG/A
Fitting the Door
I Fit hinges to door and raise upright.
I Use a jack to raise door until hinges align
with recess.

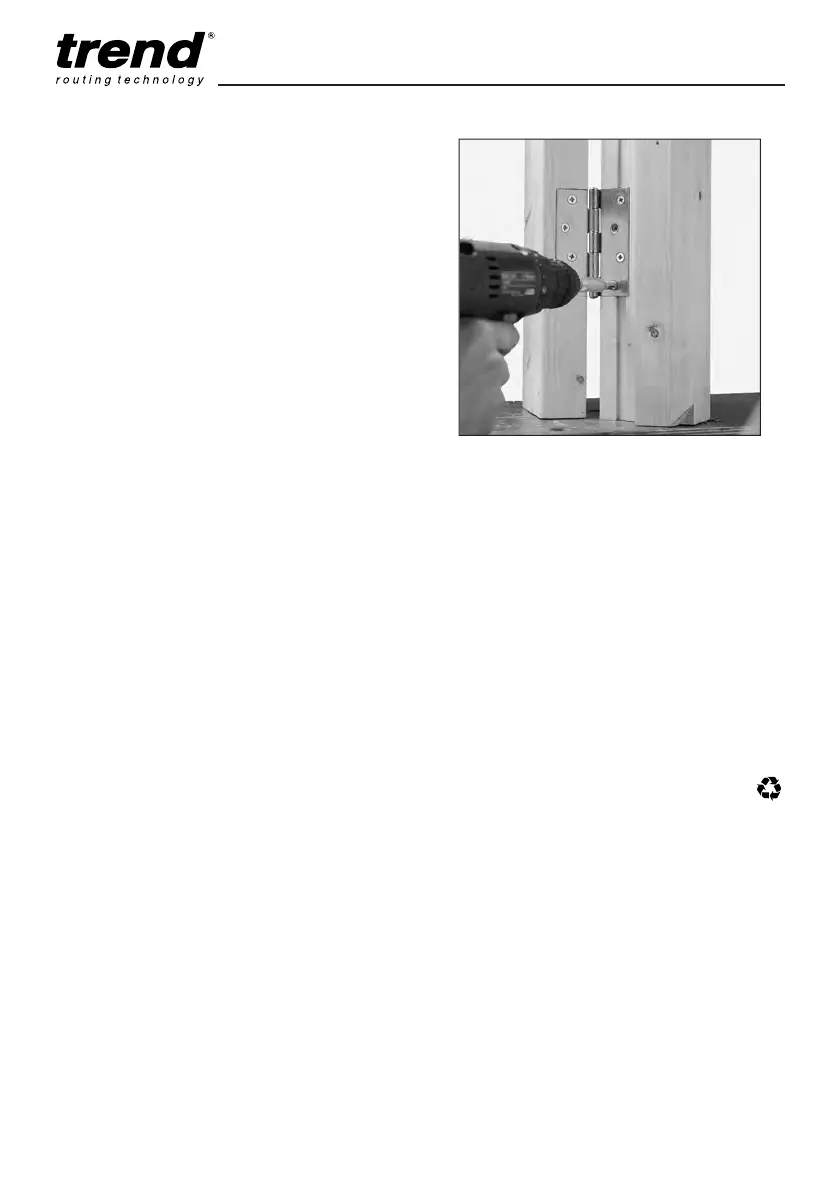

I Screw leafs to frame.
Providing procedure is carried out correctly and
that the frame/lining is plumb and parallel, then
no adjustment should be necessary due to the
identical mirror image positioning of the recesses
in both the door and the frame.
Other Points
If a larger gap is required to accommodate
smokeseal or draft excluder, a packing piece can
be temporarily glued or stuck to the swivel end
plate in order to utilise the jig in the same
technique and achieve accurate results.
If a new door is being hung in an existing frame
or lining, the door height may be shortened by a
timber threshold or parquet flooring or by a new
screed. This may cause problems with the jig
fitting the door.
Finishing the Frames
The holes left by the bradawls are on both
closing edges of the door and frame and are
very unobtrusive. These can be easily filled with
a matching coloured filler.
ACCESSORIES
Ref. HJ/1 Pair of 3mm thick bushes
so jig can be used where
architrave is fitted 4mm
back from lining.
Ref. D/STAND/A Door Stand to hold the
door whilst routing.
Ref. D/CLAMP/A Door clamp to hold the
door whilst drilling and
fitting locks.
Ref. C/CHISEL Corner chisel for squaring
corners of hinge recesses.
MAINTENANCE
This jig has been designed to operate over a long
period of time with a minimum of maintenance.
Continual satisfactory operation depends upon
proper tool care and regular cleaning.
Cleaning
I Regularly clean the jig and remove resin
build-up on all threads.
Lubrication
I Your jig requires no additional lubrication.
Storage
I After use store jig in its storage tube/carry case.
ENVIRONMENTAL PROTECTION
Recycle raw materials instead of disposing as
waste.
Packaging should be sorted for environmental-
friendly recycling.
The product and its accessories at the end of its
life should be sorted for environmental-friendly
recycling.
GUARANTEE
The jig carries a manufacturers guarantee in
accordance with the conditions of the enclosed
guarantee card.
Please use only Trend original accessories.
