-6-
HINGE JIG & H/JIG/A
Setting up the Plunge Router
This fits directly to the Trend T5 Router. To fit the
guide bush to other makes and models, a
universal sub-base Ref.UNIBASE or circular sub-
base Ref. GB/5 can be used. The Ref. UNIBASE
is designed to suit the most popular plunge type
routers (please see our website for compatibility).
The Ref. GB/5 can be re-drilled by the user.
I Fit the guide bush to the base of the router
using the screws supplied with the router.
I The Ref. UNIBASE Universal Sub-base has a
central recess to allow fitting of the special
guide bush Ref. GB160. The sub-base is
supplied drilled to fit the most popular makes
of routers.

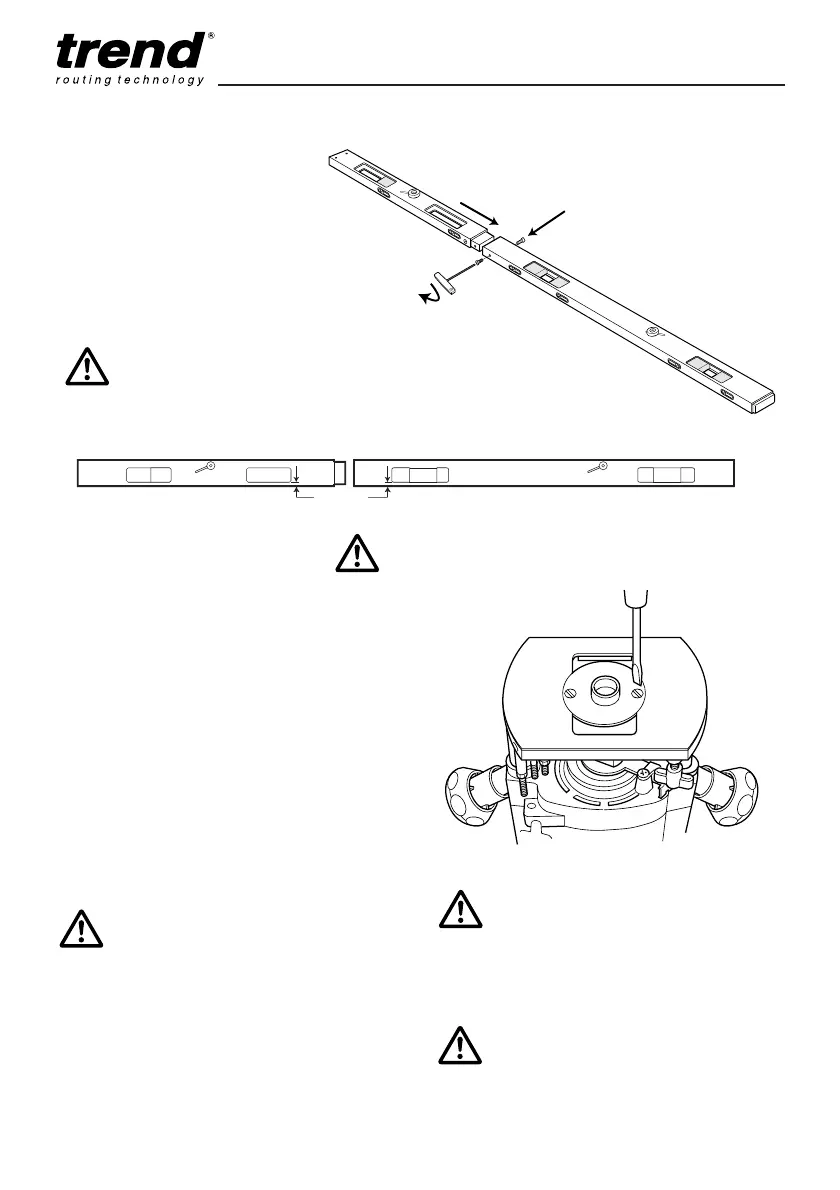

ASSEMBLY - H/JIG/A
The two part hinge jig is designed for
ease of transport. Once the jig is
assembled the functions are exactly
the same as the one piece model. The
jointer block should already be fixed
into the upper (short) section of the jig.
The lower (long) section can then be
connected, ensuring that the screws
are correctly aligned.
It is recommended that a plunge
router is used with the hinge jig.
Incorrect orientation will prevent
correct connection of the jig body.
The T4 router will require a Unibase
to accept the guide bush or special
accessory guide bush Ref.
GB/T4/160 can be used.
If there is any doubt about the
concentricity of the cutter relative to
the guide bush, then a false sub-base
should be used in order to ensure an
accurate fit of hinges. For all other
makes of router, the sub-base to suit
your router will need to be purchased.
must be
equal
MANU-HJ v7.0 3/5/11 11:37 Page 6
