-7-
HINGE JIG & H/JIG/A
Fitting the Router Cutter
I The recommended router cutters for use with
the jig are Refs. 3/8LX1/4TC, C019AX1/4TC
or TR12X1/4TC.
I The cutters must have a 12.0mm diameter
and a minimum overall length of 66mm.
I Unplug router from mains, insert 25mm of
shank of cutter into collet and gently tighten
collet nut.
Template Guide Bush Principle

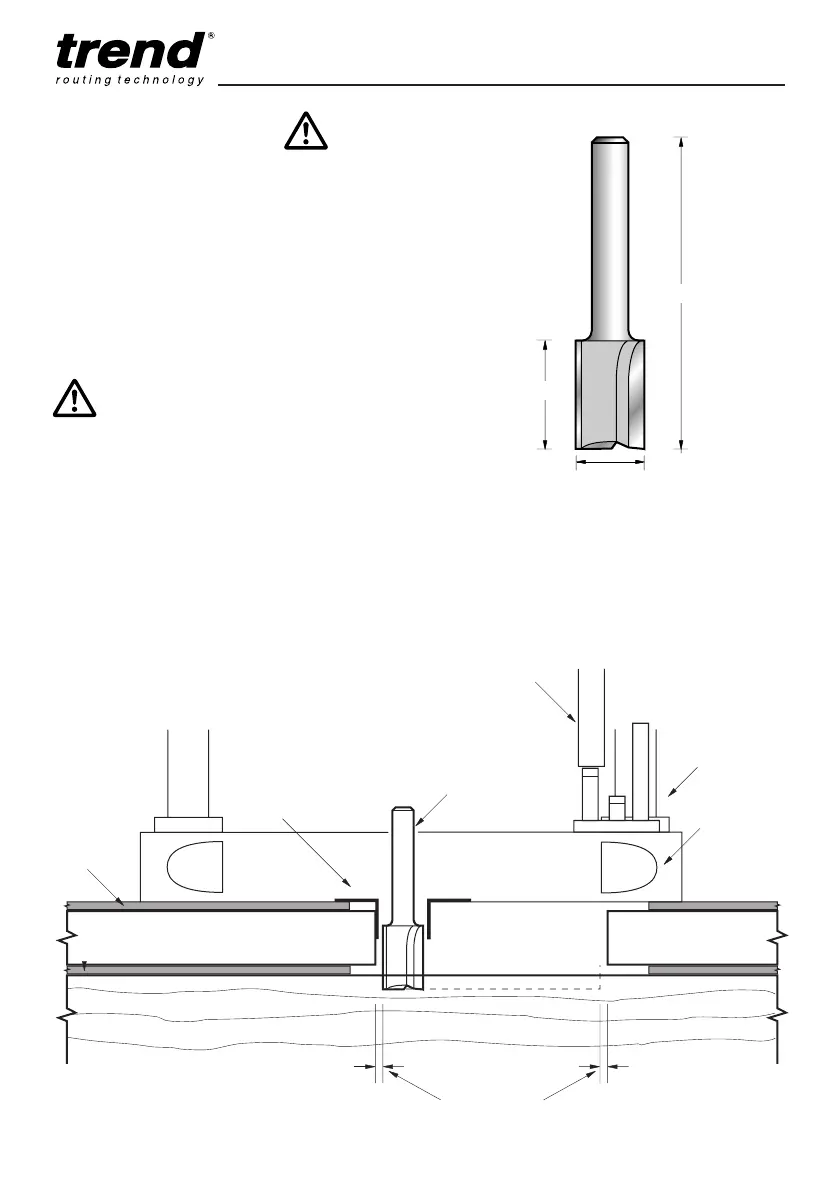

I The cross-section below shows the cutter
being guided by the guide bush around one
of the apertures.
Jig body
16mm dia.
guide bush
Ref. GB 160
12mm dia. Cutter
Ref. 3/8L
Router base
Required 2mm offset
Aperture block
Actual hinge size
Turret depth stop
Depth stop set to
correct height
12mm
19mm
66mm
The guide bush must be concentric to the
router collet assembly and router cutter.
Before and during use please ensure the
router cutter does not come into contact
with the inside of the guide bush. When it
is safe to do so check cutter and guide
bush will not come into contact.
