TREND HINGE/JIG - Parts and Assembly

DESCRIPTION OF PARTS &
ASSEMBLY - HINGE/JIG
F
B
G
I
C
C
D
C
B
D
C
C
H
O
B
I
E
D
B
B
E
D
A
-5-
HINGE JIG & H/JIG/A
The Ref. HINGE/JIG is already assembled.

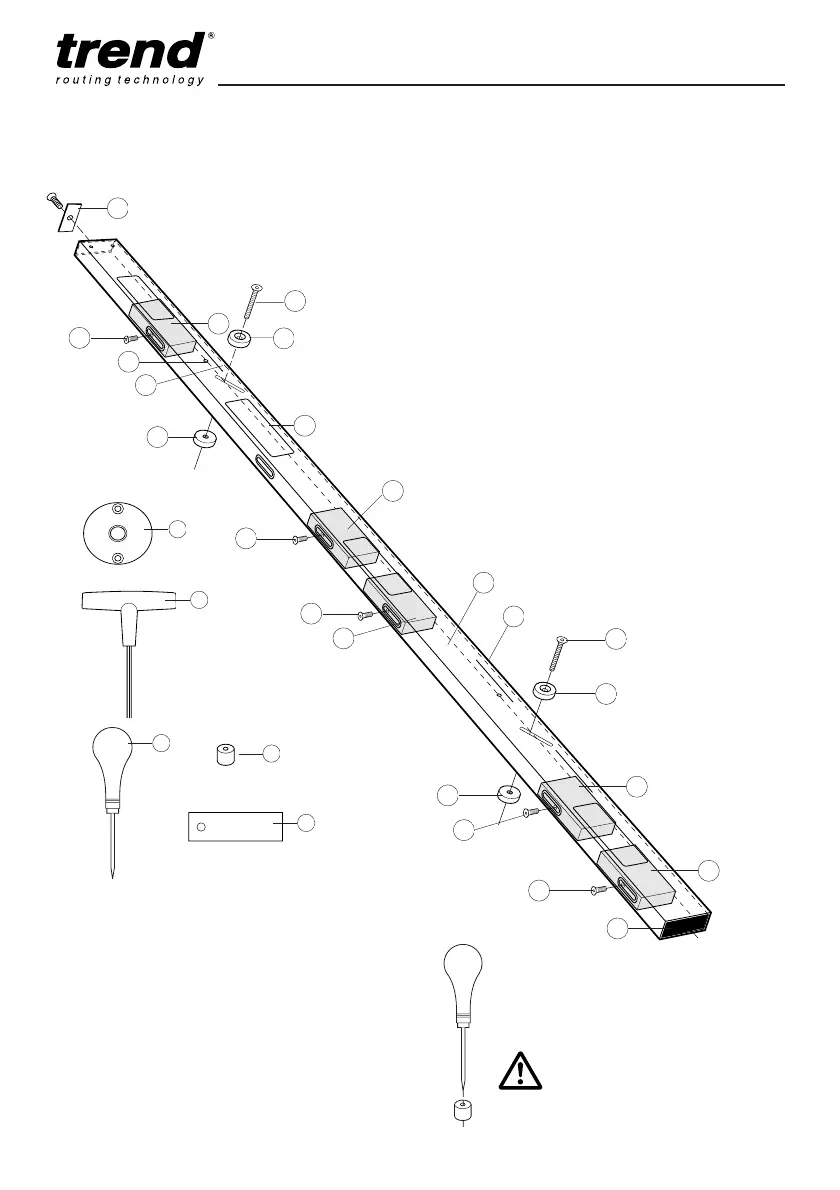

Please use drawing below to identify the parts.
For fire doors the middle block will need to be
moved up to the second aperture.
A. Jig body
B. Aperture block
C. Aperture block retaining screw
D. Edge stop
E. Edge stop retaining screw
F. Swivel end plate and screw
G. Bradawl hole
H. End bung
I. Hinge width scribe line
J. Template guide bush 16mm with extra long
spigot
K. Hex key ‘T’ handle 4mm A/F
L. Bradawl
M. Nylon spacer
N. Spacer gauge 4mm
O. Fire door aperture
J
K
L
M
N
Bradawls are sharp!
Please take care.
Put one plastic spacer onto each
bradawl blade. Take care of the sharp
point. When using bradawls always
make sure the spacers are fitted.
FOR FIRE DOORS
The second hinge, 355mm (14”) down from the
top of the upper hinge is for fire doors. The
middle aperture block is moved up to the second
aperture position and set to hinge length. The
middle aperture is not then used.
