-4-
HINGE JIG & H/JIG/A
When unpacking the Ref. HINGE/JIG,
the cardboard tube and endcaps
should be retained. Adequate
protection can be gained by returning
the jig to the tube and replacing the
endcap for storage and transportation.
HINGE JIG
GUARANTEE
HINGE JIG
HINGE JIG

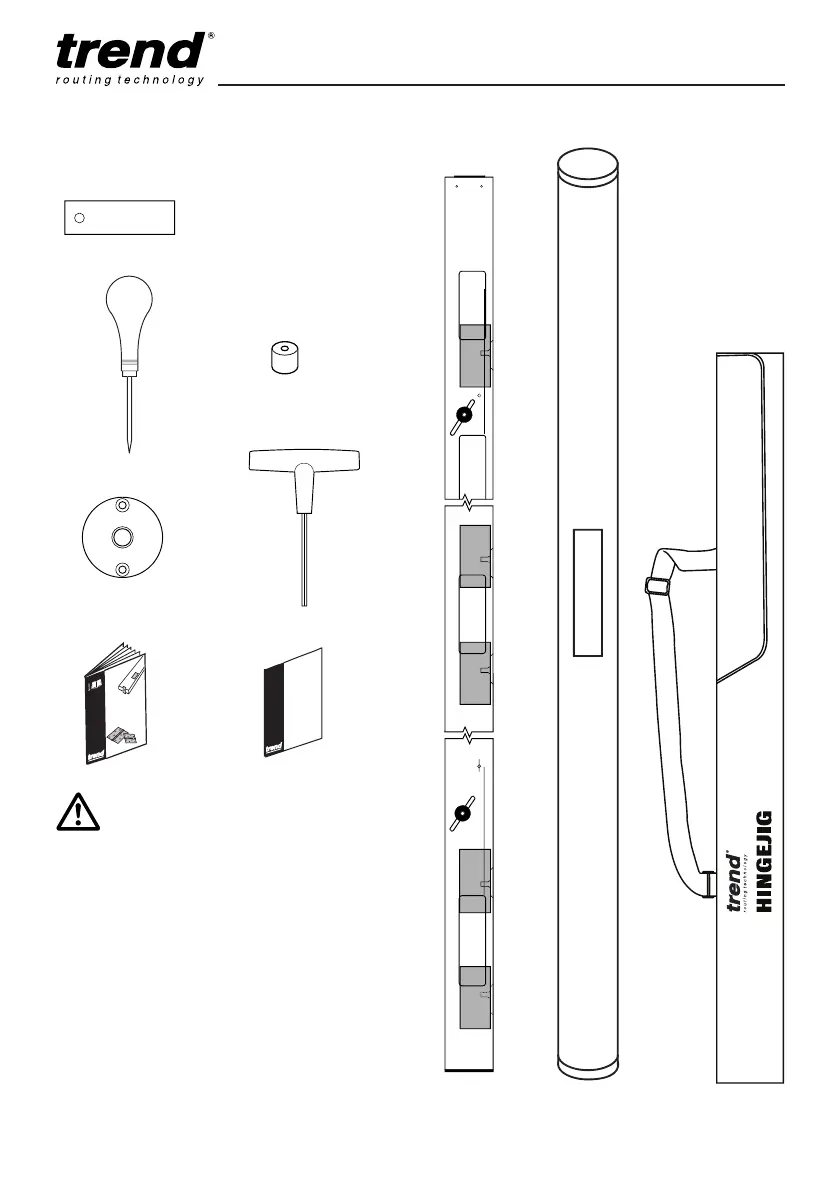

ITEMS ENCLOSED
x1
x1
(HINGE/JIG only)
x1
(H/JIG/A only)
x1
x1
x1
x1
x1
x2
x2
ITEMS REQUIRED
I 1/4” collet plunge router.
I 12mm diameter router cutter with1/4” shank.
I Door clamping device.
I Hand tools.
MANU-HJ v7.0 3/5/11 11:37 Page 4
