TREND T9 - Template Guide Bush Fitment

T9
-14-

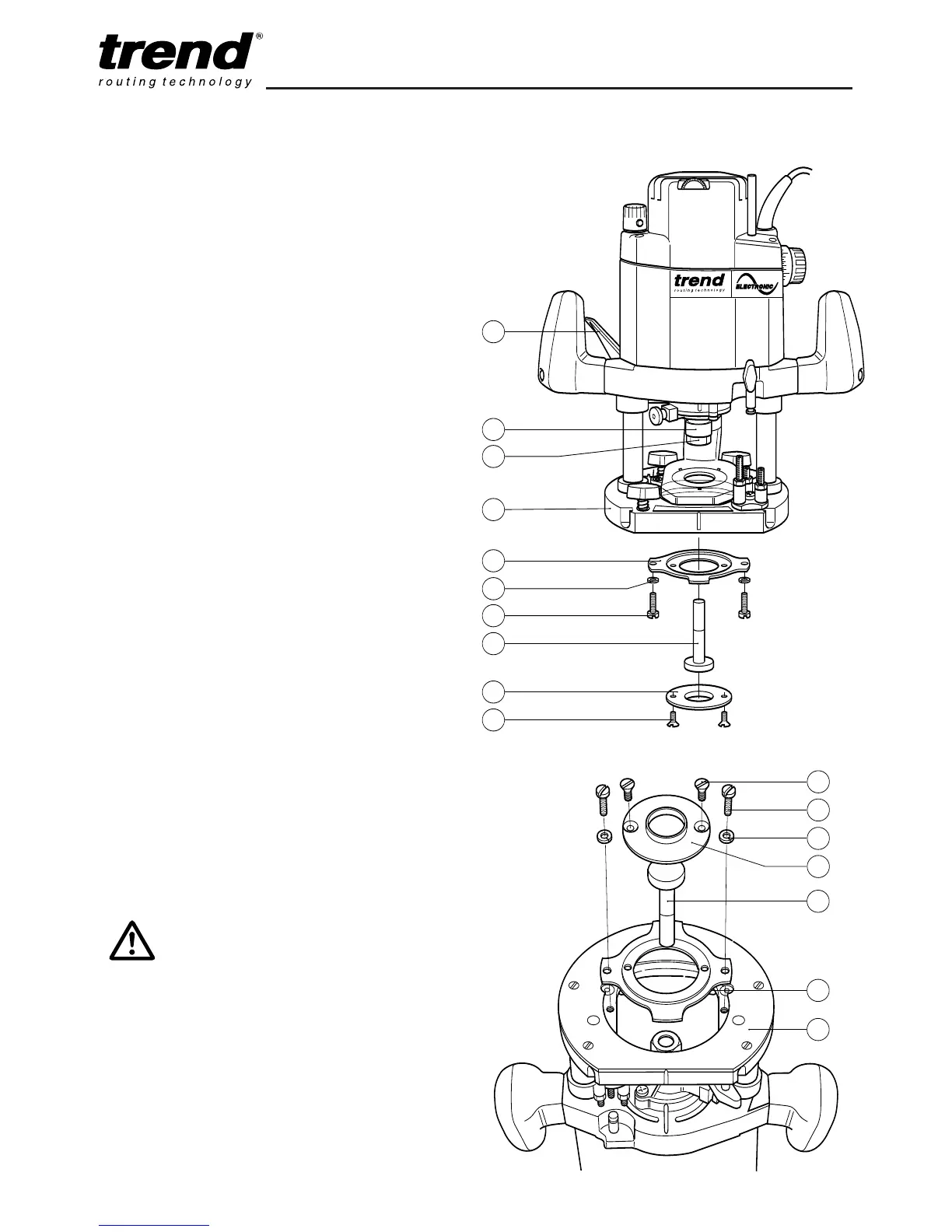

Fitting the Template Guide Bush and
Inner Plate
The T9 has a unique built-in line up system for
the template guide bush. This system ensures
that the guide bush is exactly concentric to the
router cutter to ensure accurate work.
n Turn the router upside down.
n Fit inner plate (2) with recess facing into the
recess in the router base plate (1) (raised side
away from router base). Loosely fit two pan
head machine screws (3) with split spring
washers (4) fitted through the inner plate and
screw into the base plate. DO NOT TIGHTEN.
n Fit the 30mm template guide bush (6) to the
raised side of the inner plate (2). Fit guide
bush with the two M5 countersink machine
screws (7). Tighten these screws.
n The line up pin (5) is stepped for 12mm and
1
/2” collet (8) sizes. (For the
1
/2” collet simply
push the line up pin further down into the
1
/2”
collet).
n Fit line up pin (5) into the
1
/2” collet (8) (or
12mm depending on the size fitted) in the
router, lightly tighten collet nut (9) to hold the
line up pin (5).
n Release plunge lever (10) and gently depress
base until line up pin (5) projects through the
30mm guide bush (6).
n Once in line, tighten the pan head machine
screws (3) with a flat screwdriver.
10
8
9
2
3
4
5
6
7
1
2
1
2
1
5
7
3
4
6
Reverse
view
When routing always lock the
plunge locking lever.
